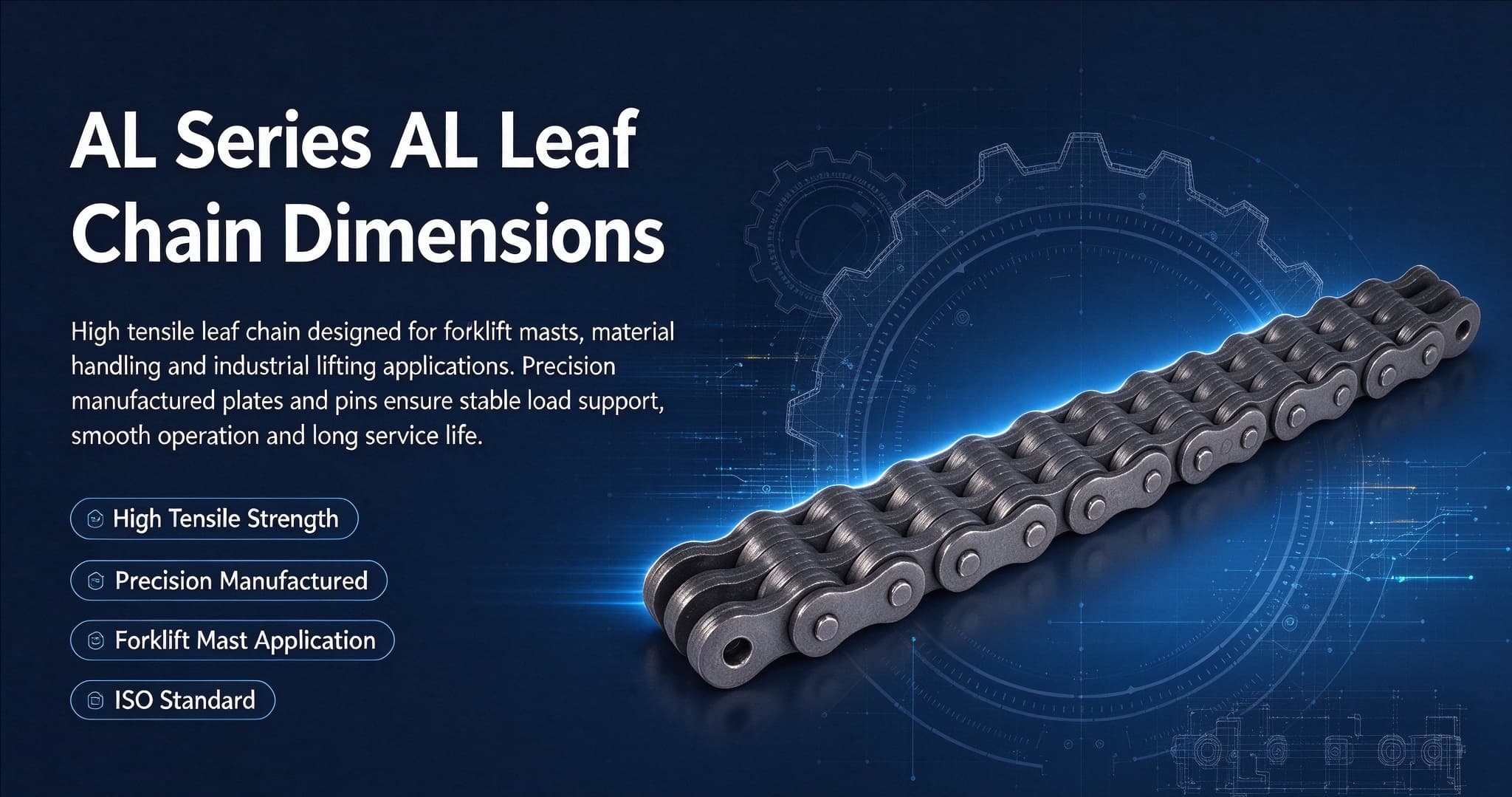

Product Introduction



JIS Chain No. Pitch Plate lacing Plate depth Plate thickness Pin diameter Pin length Tensile strength Average tensile strength Weight per meter
P h2 max T max d2 max L max Q min Q0 q
mm mm mm mm mm kN/lbf kN kg/m
AL322 9.525 2×2 7.7 1.30 3.58 6.80 9.0/2045 10.2 0.23
AL344 9.525 4×4 7.7 1.30 3.58 11.60 18.0/4090 20.0 0.46
AL422 12.700 2×2 10.4 1.50 3.96 8.30 14.7/3304 16.9 0.39
AL444 12.700 4×4 10.4 1.50 3.96 14.40 29.4/6609 35.2 0.74
AL466 12.700 6×6 10.4 1.50 3.96 20.50 44.0/9891 52.7 1.13
AL522 15.875 2×2 12.8 2.03 5.08 11.05 24.5/5508 28.6 0.64
AL534 15.875 3×4 12.8 2.03 5.08 17.00 36.8/8273 46.0 1.10
AL544 15.875 4×4 12.8 2.03 5.08 19.40 48.9/10993 62.4 1.25
AL566 15.875 6×6 12.8 2.03 5.08 27.50 73.4/16500 93.8 1.79
AL622 19.050 2×2 15.6 2.42 5.94 13.00 33.4/7508 44.4 0.87
AL644 19.050 4×4 15.6 2.42 5.94 22.70 66.7/14994 78.8 1.70
AL666 19.050 6×6 15.6 2.42 5.94 32.20 100.1/22502 118.6 2.53
AL688 19.050 8×8 15.6 2.42 5.94 42.20 133.4/29988 156.6 3.37
AL822 25.400 2×2 20.8 3.25 7.92 16.20 57.9/13016 68.6 1.57
AL844 25.400 4×4 20.8 3.25 7.92 29.40 115.7/26009 135.6 3.08
AL866 25.400 6×6 20.8 3.25 7.92 44.20 173.5/39003 202.3 4.62
AL888 25.400 8×8 20.8 3.25 7.92 55.50 231.4/52019 245.0 6.12
AL1022 31.750 2×2 25.6 4.00 9.53 19.60 84.5/18996 107.1 2.51
AL1044 31.750 4×4 25.6 4.00 9.53 36.40 169.0/37991 203.6 4.95
AL1066 31.750 6×6 25.6 4.00 9.53 52.30 253.5/56987 315.3 7.39
AL1088 31.750 8×8 25.6 4.00 9.53 68.50 338.0/75982 421.2 9.83
AL1222 38.100 2×2 30.5 4.80 11.10 24.30 120.1/26998 151.1 3.65
AL1244 38.100 4×4 30.5 4.80 11.10 43.80 240.2/53997 299.7 7.05
AL1266 38.100 6×6 30.5 4.80 11.10 63.20 360.3/80995 426.3 10.50
AL1288 38.100 8×8 30.5 4.80 11.10 82.60 480.4/107994 568.4 14.03
AL1444 44.450 4×4 36.4 5.60 12.70 51.30 302.5/68002 413.6 9.80
AL1466 44.450 6×6 36.4 5.60 12.70 74.50 453.7/101992 620.4 14.66
AL1644 50.800 4×4 41.6 6.40 14.21 58.00 382.5/85986 522.8 12.90
AL1666 50.800 6×6 41.6 6.40 14.21 83.80 573.8/128990 783.6 19.27
AL1688 50.800 8×8 41.6 6.40 14.21 109.50 765.0/171972 1045.5 25.64

Each model
