Stainless Steel Single Roller Chain

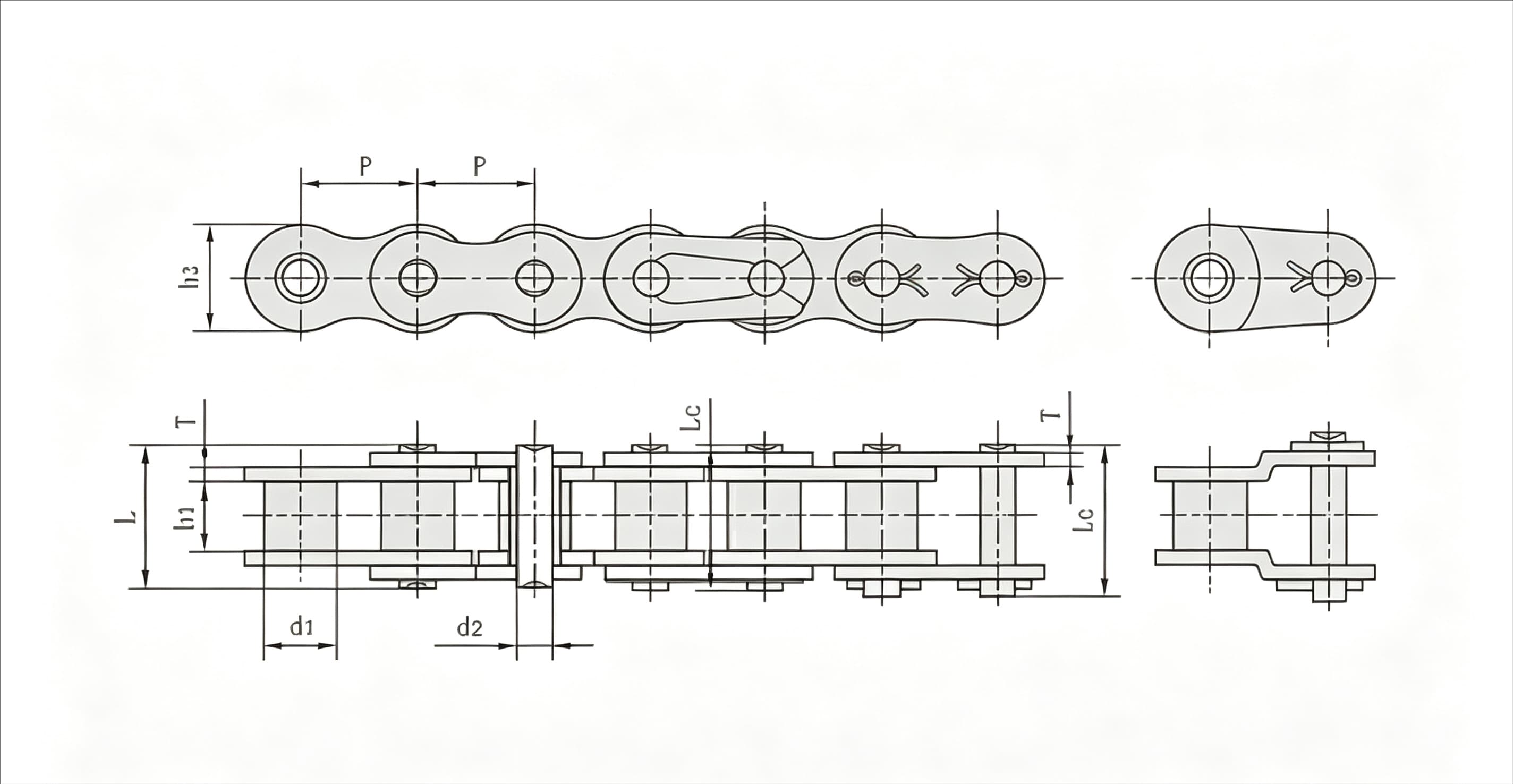

Chain Size	Pitch P(mm)	Roller diameter d1 max(mm)	Width between inner plates b1 min(mm)	Pin diameter d2 max(mm)	Pin length L max(mm)	Pin length Lc max(mm)	Inner plate depth h2 max(mm)	Plate thickness T max(mm)	Average tensile strength Q0(kN)
40SS	12.700	7.95	7.85	3.96	16.60	17.80	12.00	1.50	9.6/2182
41SS	12.700	7.77	6.25	3.58	13.75	15.00	9.91	1.30	6.0/1360
50SS	15.875	10.16	9.40	5.08	20.70	22.20	15.09	2.03	15.2/3455
60SS	19.050	11.91	12.57	5.94	25.90	27.70	18.00	2.42	21.7/4943
80SS	25.400	15.88	15.75	7.92	32.70	35.00	24.00	3.25	38.9/8841
100SS	31.750	19.05	18.90	9.53	40.40	44.70	30.00	4.00	60.0/13636
120SS	38.100	22.23	25.22	11.10	50.30	54.30	35.70	4.80	75.0/16866
140SS	44.450	25.40	25.22	12.70	54.40	59.00	41.00	5.60	102.0/22931
160SS	50.800	28.58	31.55	14.27	64.80	69.60	47.80	6.40	133.8/30079
04BSS	6.000	4.00	2.80	1.85	6.80	7.80	5.00	0.60	2.0/455
05BSS	8.000	5.00	3.00	2.31	8.20	8.90	7.10	0.80	3.5/795
06BSS	9.525	6.35	5.72	3.28	13.15	14.10	8.20	1.30	6.2/1409
08BSS	12.70	8.51	7.75	4.45	16.70	18.20	11.80	1.60	12.0/2727
10BSS	15.875	10.16	9.65	5.08	19.50	20.90	14.70	1.70	14.5/3295
12BSS	19.050	12.07	11.68	5.72	24.20	24.20	16.00	1.85	18.5/4205
16BSS	25.400	15.88	17.02	8.28	36.10	37.40	21.00	4.15/3.1	40.0/9091
20BSS	31.750	19.05	19.56	10.19	41.30	45.00	26.40	4.5/3.5	59.0/13409
24BSS	38.100	25.40	25.40	14.63	53.40	57.80	33.20	6.0/4.8	104.0/25454
28BSS	44.450	27.94	30.99	15.90	65.10	69.50	36.70	7.5/6.0	120.0/26977
32BSS	50.800	29.21	30.99	17.81	66.00	71.00	42.00	7.5/6.0	150.0/34090
