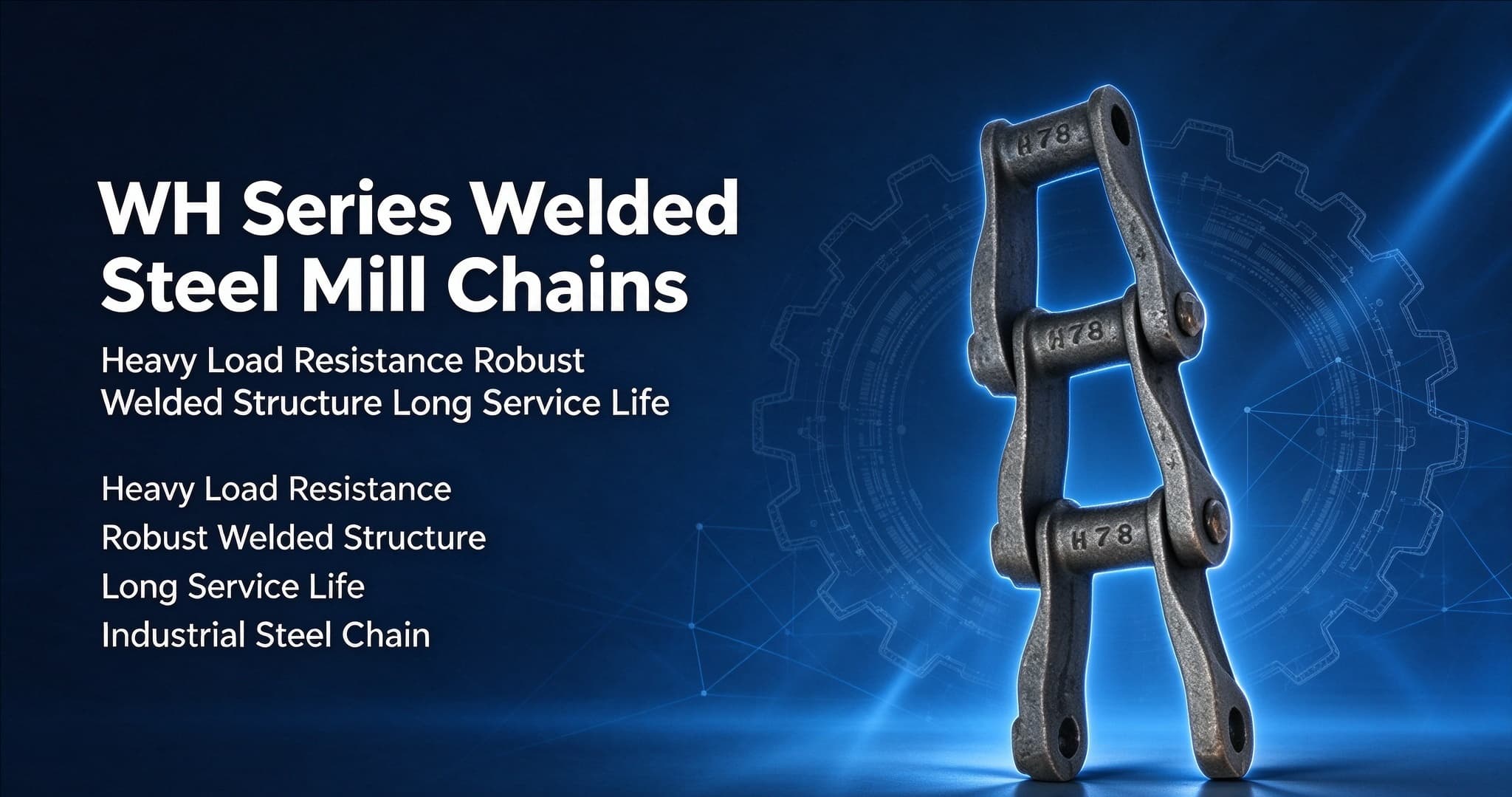

WH Series Mill Chain_Shengzhou Hongxin Transmission (HXST) Co., Ltd.

裁剪旋转 (8)_compressed.jpeg

Chain No.	Pitch	Bush diameter	Width between inner plates	Pin diameter	Pin length		Plate depth	Plate thickness	Tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T	Q min	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
WH78	66.27	22.90	28.40	12.78	73.00	79.3	28.4	6.4	106.8/24273	117.50	6.20
WH82	78.10	31.50	31.80	14.35	80.00	86.0	31.8	6.4	131.2/29818	144.30	7.98
WH106	152.40	37.10	41.20	19.13	103.00	111.0	38.1	9.7	224.6/51045	247.00	10.56
WH110	152.40	32.00	46.70	19.13	107.70	115.5	38.1	9.7	224.6/51045	247.00	10.40
WH111	120.90	37.10	57.20	19.13	116.80	124.5	38.1	9.7	224.6/51045	247.00	12.72
WH124	101.60	37.10	41.20	19.13	103.00	110.0	38.1	9.7	224.6/51045	247.00	12.38
WH132	153.67	44.70	76.20	25.48	151.00	162.2	50.8	12.7	378.1/85932	415.90	20.00
WH150	153.67	44.45	73.00	25.40	151.00	162.2	63.5	12.7	530.0/119144	583.00	20.50
WH155	153.67	44.45	73.00	28.57	164.00	176.0	63.5	12.7	820.0/186361	902.00	20.70
WH157	153.67	44.45	76.20	28.57	164.00	176.0	63.5	15.9	820.0/186361	902.00	20.80
