Stainless Steel Conveyor Roller Chain

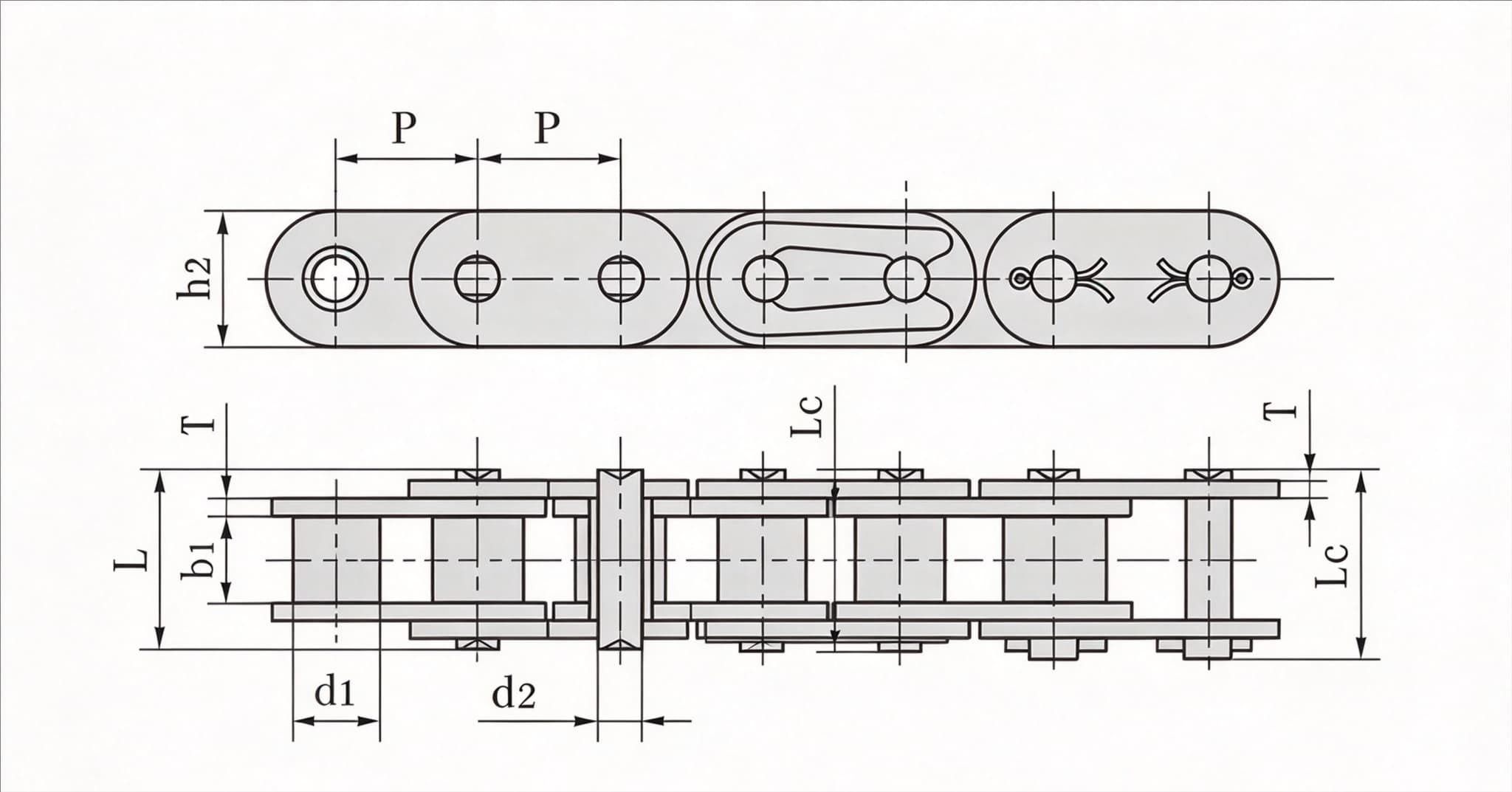

Chain Size	Pitch P mm	Roller diameter d1 max mm	Width between inner plates b1 min mm	Pin diameter d2 max mm	Pin length L max / Lc max mm		Inner plate depth h2 max mm	Plate thickness t/T max mm	Tensile strength Q min kN/lbf
C40SS	12.700	7.95	7.85	3.96	16.60	17.80	12.00	1.50	9.6/2158
C50SS	15.875	10.16	9.40	5.08	20.70	22.20	15.09	2.03	15.2/3417
C60SS	19.050	11.91	12.57	5.94	25.90	27.70	18.00	2.42	21.7/4878
C80SS	25.400	15.88	15.75	7.92	32.70	36.50	24.00	3.25	38.9/8745
C100SS	31.750	19.05	18.90	9.53	40.40	44.70	30.00	4.00	60.0/13489
C120SS	38.100	22.23	25.22	11.10	50.30	54.30	35.70	4.80	75.0/16861
C140SS	44.450	25.40	25.22	12.70	54.40	59.00	41.00	5.60	102.0/22931
C160SS	50.800	28.58	31.55	14.27	64.80	69.60	47.80	6.40	133.8/30079
