Triple Heavy Duty Roller Chain

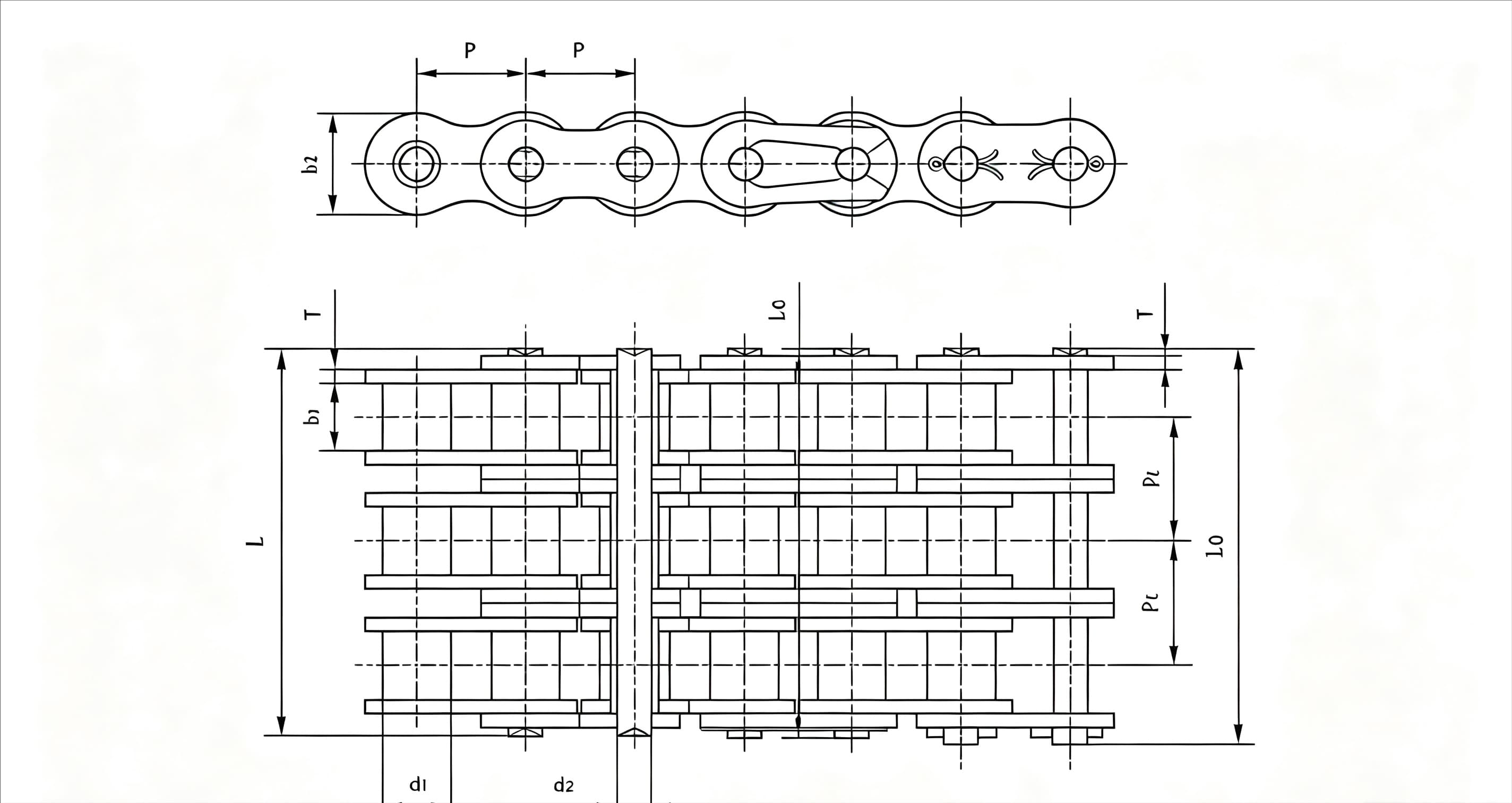

Chain size	Pitch P (mm)	Roller diameter d1 max (mm)	Width between inner plates b1 min (mm)	Pin diameter d2 max (mm)	Pin length L max (mm)	Pin length Lc max (mm)	Inner plate depth h2 max (mm)	Plate thickness T max (mm)	Transverse pitch Pt (mm)	Tensile strength Q min (kN/lbf)
60H-3	19.050	11.91	12.57	5.94	81.4	83.2	18.00	3.25	26.11	95.4/21682
80H-3	25.400	15.88	15.75	7.92	101.4	102.9	24.00	4.00	32.59	170.1/38659
100H-3	31.750	19.05	18.90	9.53	121.8	125.1	30.00	4.80	39.09	265.5/60341
120H-3	38.100	22.23	25.22	11.10	151.2	155.2	35.70	5.60	48.87	380/86591
140H-3	44.450	25.40	25.22	12.70	162.0	166.6	41.00	6.40	52.20	517.2/117545
160H-3	50.800	28.58	31.55	14.27	192.0	196.8	47.80	7.20	61.90	680.4/154636
180H-3	57.150	35.71	35.48	17.46	215.7	224.8	53.60	8.00	69.16	843/191589
200H-3	63.500	39.68	37.85	19.85	243.2	250.1	60.00	9.50	78.31	1061.4/241227
240H-3	76.200	47.63	47.35	23.81	313.8	324.3	72.30	12.70	101.22	1500/340905
