Stainless Steel Hollow Pin Roller Chain

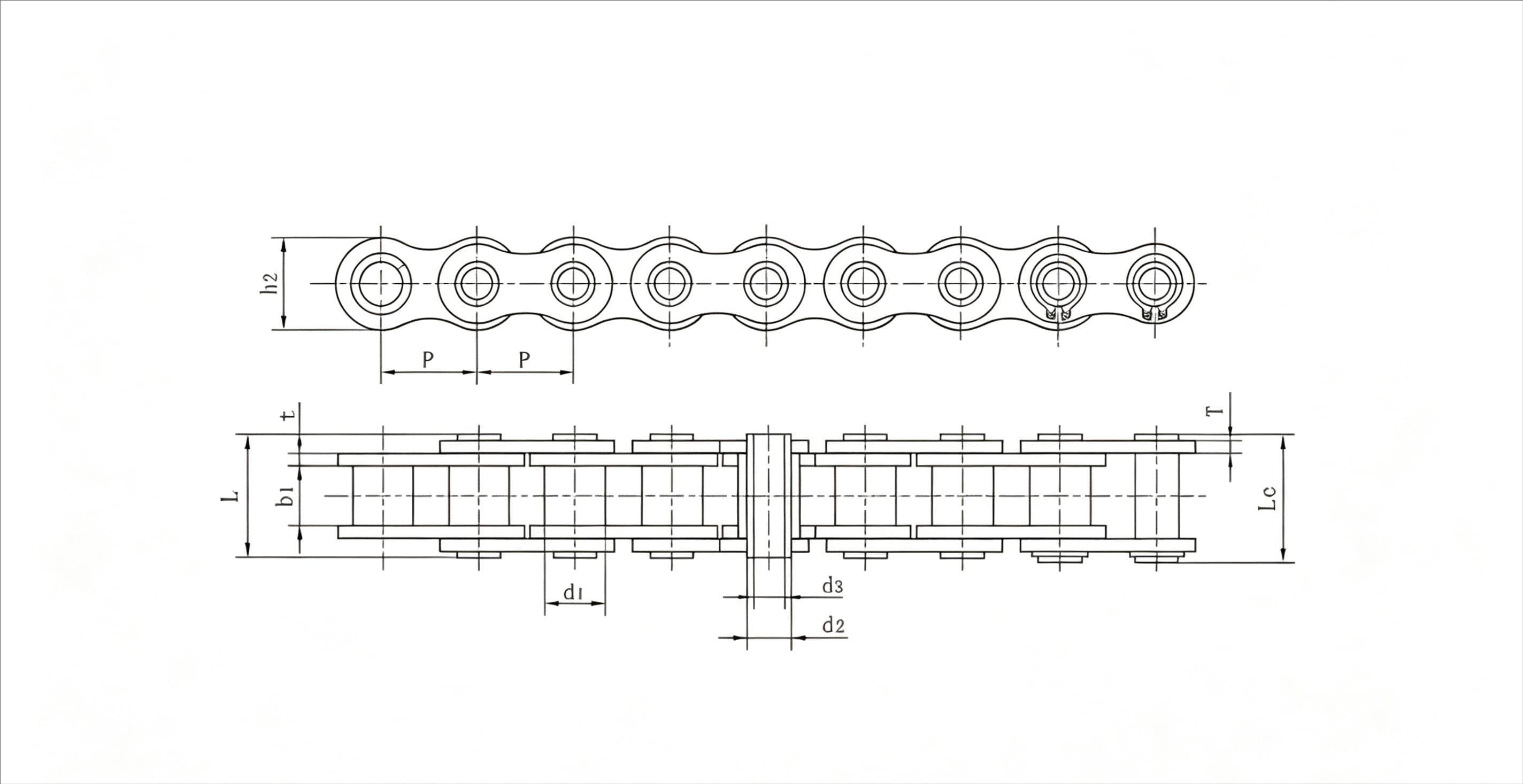

Chain Size	Pitch P(mm)	Roller diameter d1 max(mm)	Width between inner plates b1 min(mm)	Pin diameter d2 max(mm)	d3 min(mm)	Pin length L max(mm)	Pin length Lc max(mm)	Inner plate depth h2 max(mm)	Plate thickness t/T max(mm)	Average tensile strength Q(kN)
40HPSS	12.700	7.95	7.85	5.63	4.00	16.5	17.6	12.00	1.50	12.20
50HPSS	15.875	10.16	9.40	7.03	5.13	20.7	21.9	15.09	2.03	22.60
60HPSS	19.050	11.91	12.70	8.31	6.00	25.8	26.8	18.00	2.42	26.90
80HPSS	25.400	15.88	15.75	11.40	8.05	32.5	33.8	24.00	3.25	52.00
