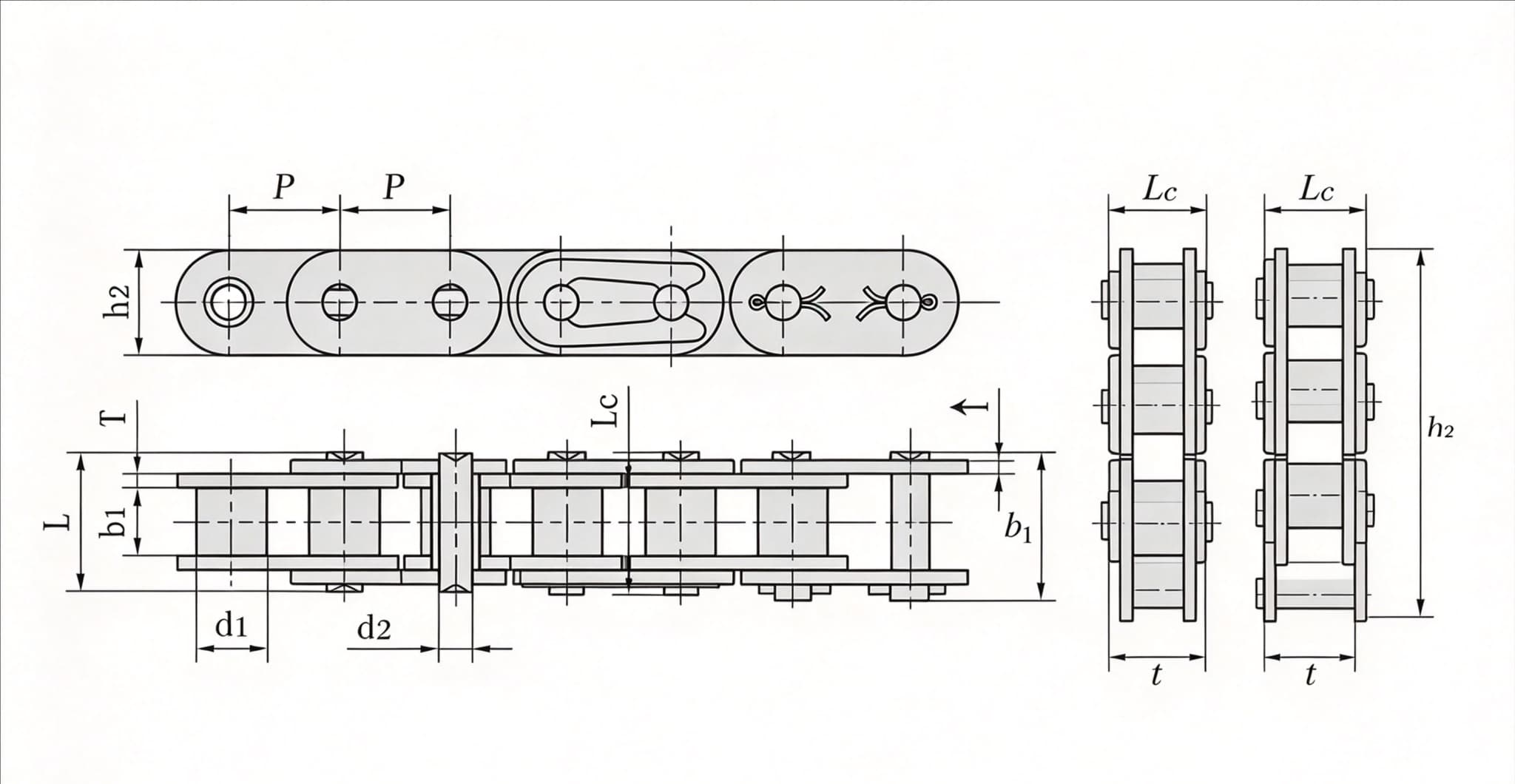

Single Strand Conveyor Roller Chain

DIN/ISO Chain No.	ANSI Chain No.	Pitch P mm	Roller diameter d1 max mm	Width between inner plates b1 min mm	Pin diameter d2 max mm	Pin length L max / Lc max mm		Inner plate depth h2 max mm	Plate thickness T max mm	Tensile strength Q min kN/lbf	Average tensile strength Q0 kN
	C35-1	9.525	5.08	4.77	3.58	13.3	14.3	9.00	1.30	7.9/1795	10.8
C08A-1	C40-1	12.700	7.95	7.85	3.96	16.6	18.8	12.00	1.50	14.1/3273	17.5
C10A-1	C50-1	15.875	10.16	9.40	5.08	20.7	23.3	15.09	2.03	22.2/5045	29.4
C12A-1	C60-1	19.050	11.91	12.57	5.94	25.9	28.3	18.0/18.2	2.42	31.8/7227	41.5
C16A-1	C80-1	25.400	15.88	15.75	7.92	32.7	36.5	24.00	3.25	56.7/12886	69.4
C20A-1	C100-1	31.750	19.05	18.90	9.53	40.4	44.7	30.00	4.00	88.5/20114	109.2
C24A-1	C120-1	38.100	22.23	25.22	11.10	50.3	54.3	35.70	4.80	127.0/28864	156.3
C28A-1	C140-1	44.450	25.40	25.22	12.70	54.4	59.0	41.00	5.60	172.4/39189	212.0
C32A-1	C160-1	50.800	28.58	31.55	14.27	64.8	69.6	47.80	6.40	226.8/51549	278.9
