Triple Strand Conveyor Roller Chain

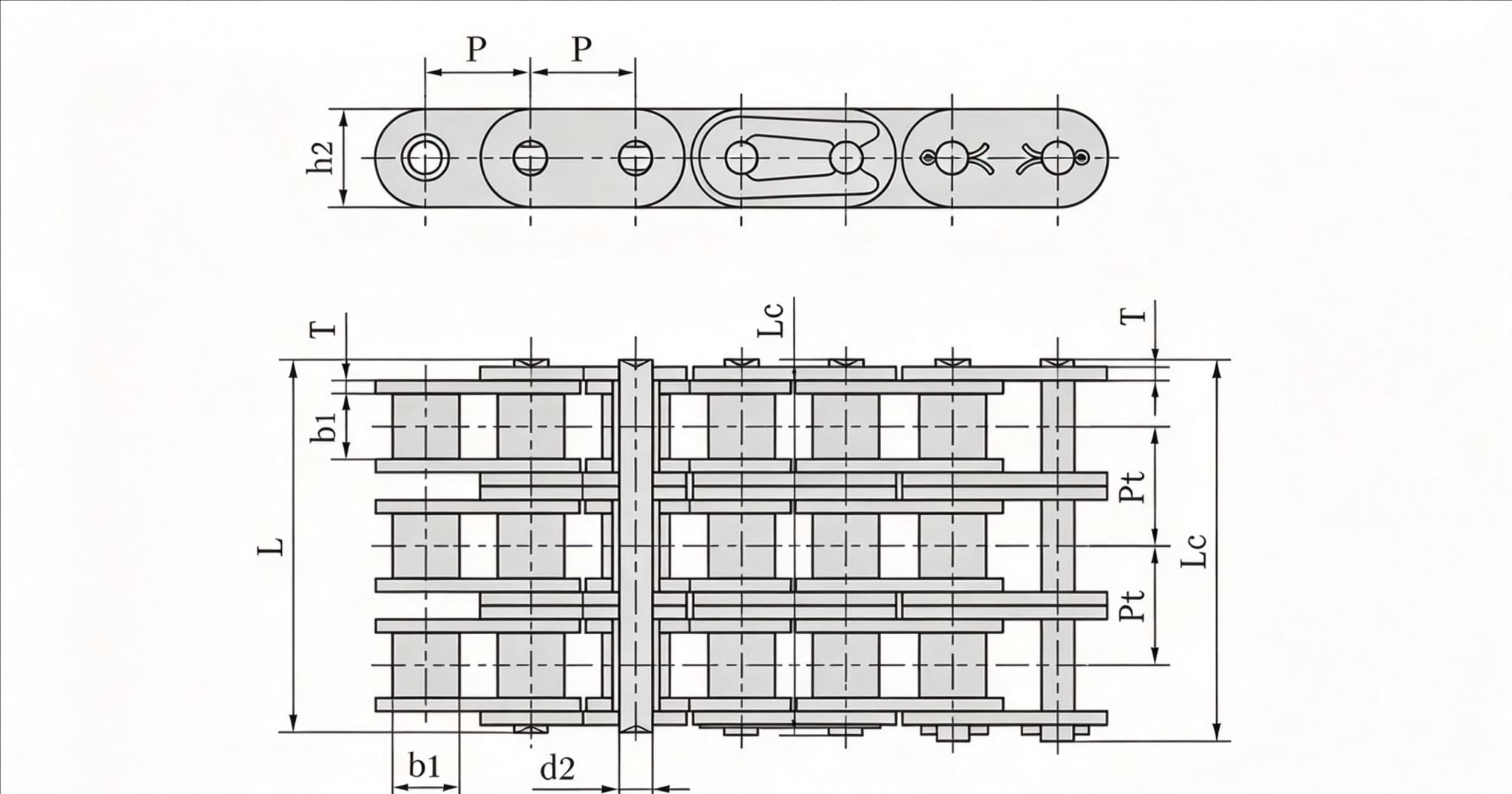

DIN/ISO Chain No.	ANSI Chain No.	Pitch P mm	Roller diameter d1 max mm	Width between inner plates b1 min mm	Pin diameter d2 max mm	Pin length L max / Lc max mm		Inner plate depth h2 max mm	Plate thickness T max mm	Transverse pitch Pt mm	Tensile strength Q min kN/lbf	Average tensile strength Q0 kN
C08A-3	C40-3	12.700	7.95	7.85	3.96	45	47.6	12.00	1.50	14.38	43/9614	50.0
C10A-3	C50-3	15.875	10.16	9.40	5.08	57.0	59.5	15.09	2.03	18.11	66/15136	77.8
C12A-3	C60-3	19.050	11.91	12.57	5.94	71.5	73.9	18.0/18.2	2.42	22.78	95.4/21682	111.1
C16A-3	C80-3	25.400	15.88	15.75	7.92	91.7	95.1	24.00	3.25	29.29	170.1/38659	198.4
C20A-3	C100-3	31.750	19.05	18.90	9.53	112.2	116.3	30.00	4.00	35.76	265.5/60341	309.6
C24A-3	C120-3	38.100	22.23	25.22	11.10	141.4	145.2	35.7	4.80	45.44	381.0/86591	437.2
C28A-3	C140-3	44.450	25.40	25.22	12.70	152.2	56.8	41	5.60	48.87	517.2/117545	593.3
C32A-3	C160-3	50.800	28.58	31.55	14.27	181.8	186.6	47.80	6.40	58.55	680.4/154636	780.6
