About #C160-3 Staight Side Roller Chain

ANSI C160-3 straight side roller chain is a heavy-duty triple-strand chain manufactured in compliance with ANSI B29.1 standards. Featuring straight side plates, it provides flat mounting surfaces for various attachments, suitable for heavy-duty bulk material conveying and power transmission.

All core components adopt high-tensile carbon steel with professional heat treatment, ensuring outstanding tensile strength, wear resistance and impact resistance. With a standard pitch of 2 inches, its triple-strand structure delivers superior load capacity and stable operation, enabling precise sprocket meshing with low vibration under extreme heavy loads.

Offered in riveted and cottered types for easy installation and maintenance. It is widely used in mining conveyors, large industrial machinery and heavy material handling systems. Custom attachments and surface treatments are available for diverse working scenarios.

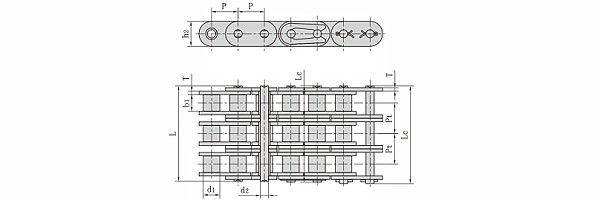

ANSI #C160-3 Staight Side Roller Chains  Dimension

Pitch (p): 50.8mm
