Single Strand Conveyor Roller Chain

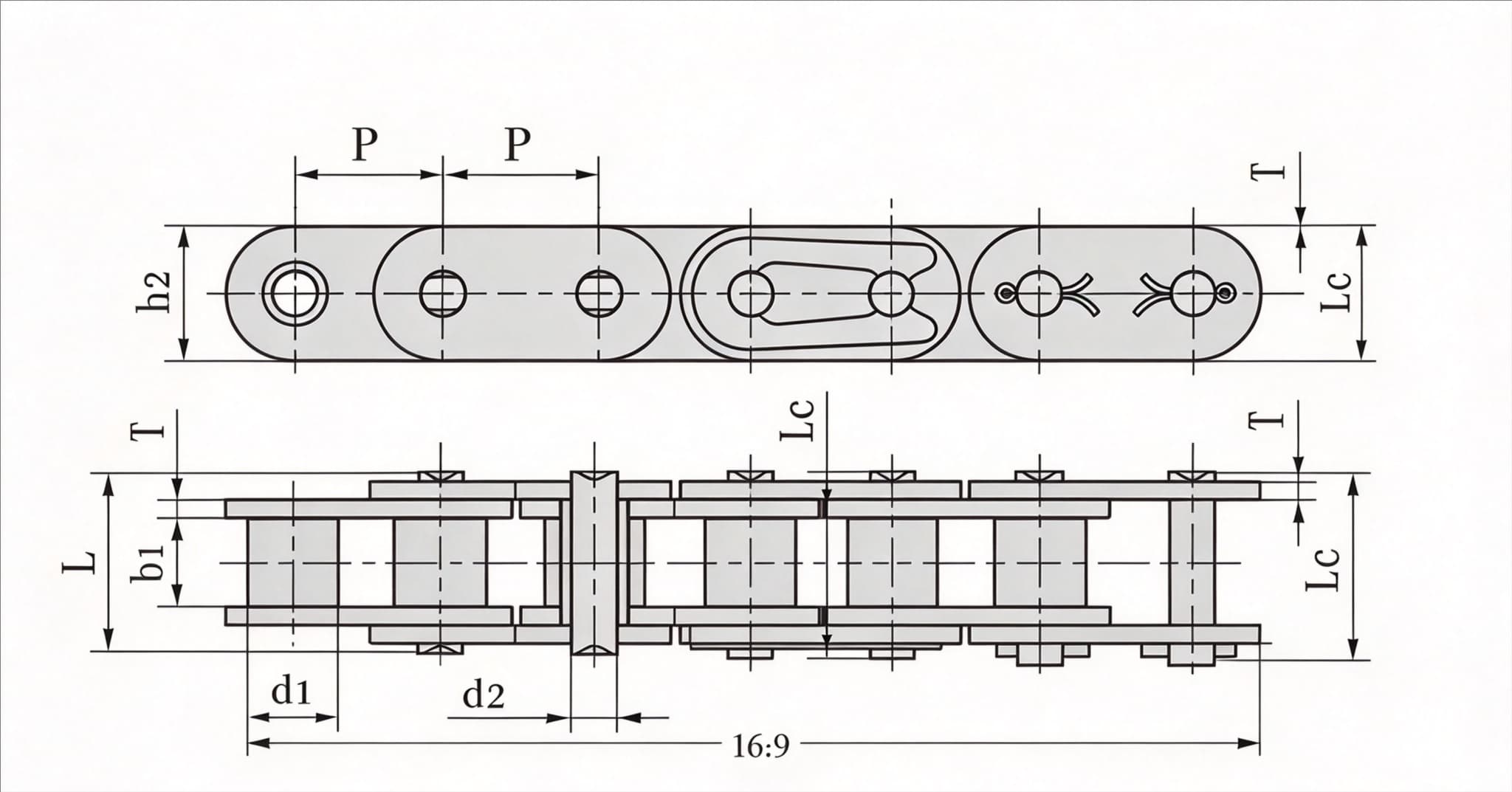

Chain No.	Pitch P mm	Roller diameter d1 max mm	Width between inner plates b1 min mm	Pin diameter d2 max mm	Pin length L max mm	Pin length Lc max mm	Inner plate depth h2 max mm	Plate thickness t/T max mm	Tensile strength Q min kN/lbf	Average tensile strength Q0 kN
C08B-1	12.700	8.51	7.75	4.45	16.7	18.2	11.8	1.60	18.0/4091	19.5
C10B-1	15.875	10.16	9.65	5.08	19.5	20.9	14.7	1.70	22.4/5091	27.9
C12B-1	19.050	12.07	11.68	5.72	22.5	25.2	16.0	1.85	29.0/6591	32.2
C16B-1	25.400	15.88	17.02	8.28	36.1	39.1	21.0/24.0	4.15/3.1	60.0/13636	72.8
C20B-1	31.750	19.05	19.56	10.19	41.3	45.0	26.4	4.5/3.5	95.0/21591	106.7
C24B-1	38.100	25.40	25.40	14.63	53.4	57.8	33.2	6.0/4.8	160.0/36364	178.0
C28B-1	44.450	27.94	30.99	15.90	65.1	69.5	36.7	7.5/6.0	200.0/45455	222.0
C32B-1	50.800	29.21	30.99	17.81	66.0	71.0	42.0	7.0/6.0	250.0/56818	277.5
