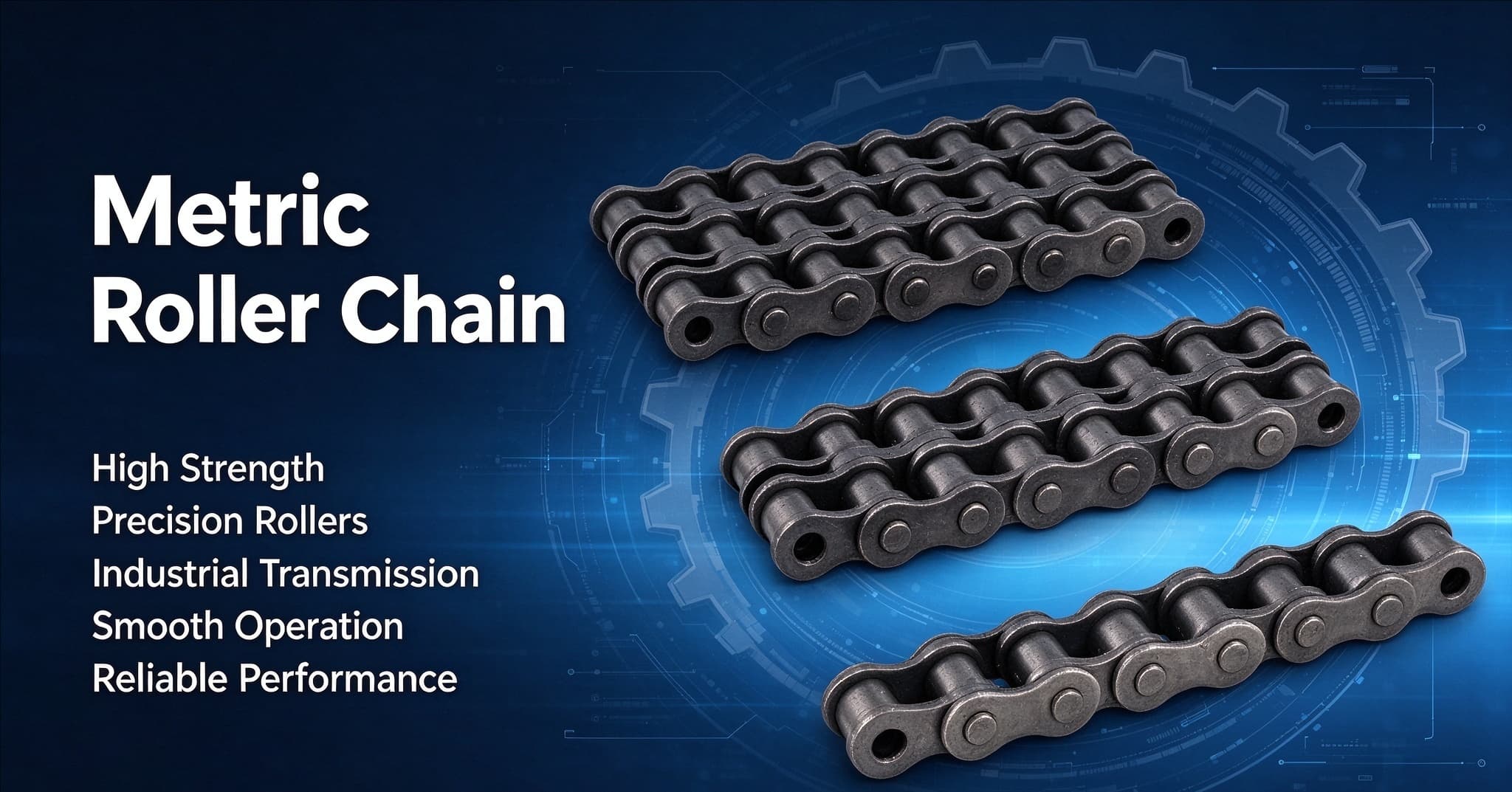

裁剪旋转 (1)_compressed.jpeg


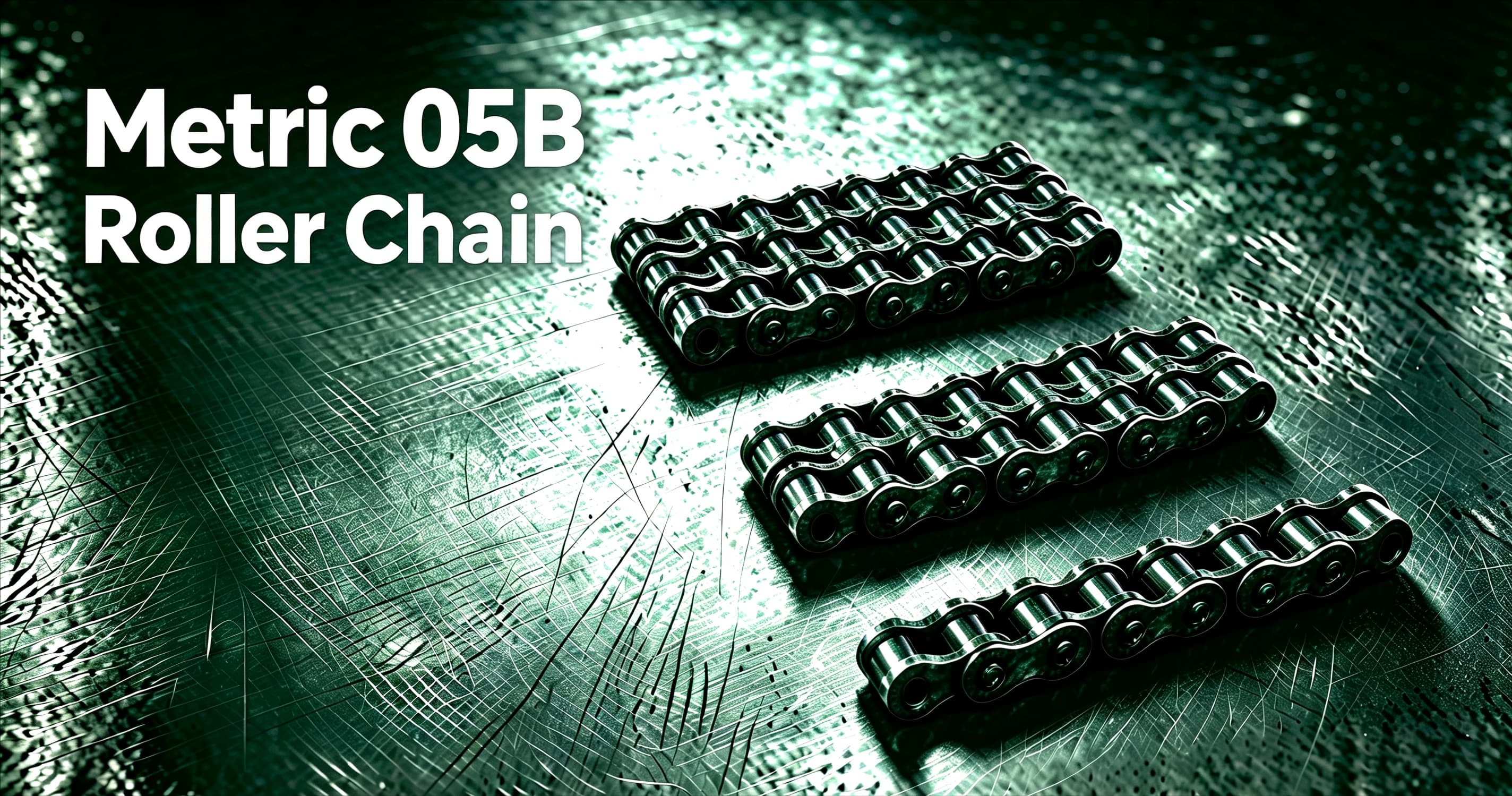

Metric Simplex Roller Chain


Chain Size Pitch P Roller diameter d1 max Width between inner plates b1 min Pin diameter d2 max Pin length Inner plate depth h2 max Plate thickness t/T max Average tensile strength Q0
mm mm mm mm L max
mm		 Lc max
mm		 mm mm kN
05B‑1 8.000 5.00 3.00 2.31 8.20 8.9 7.10 0.80 5.9

06B‑1

 9.525 6.35 5.72 3.28 13.15 14.10 8.20 1.30 10.4
08B‑1 12.700 8.51 7.75 4.45 16.70 18.20 11.80 1.60 19.4
10B‑1 15.875 10.16 9.65 5.08 19.50 20.9 14.70 1.70 27.5
12B‑1 19.050 12.07 11.68 5.72 22.50 24.2 16.00 1.85 32.2
16B‑1 25.400 15.88 17.02 8.28 36.10 37.4 21.00 4.15/3.1 77.1
20B‑1 31.750 19.05 19.56 10.19 41.30 45.0 26.40 4.50/3.5 112.8
24B‑1 38.100 25.40 25.40 14.63 53.40 57.8 33.20 6.00/4.8 178.0
28B‑1 44.450 27.94 30.99 15.90 65.10 69.5 36.70 7.50/6.0 236.4
32B‑1 50.800 29.21 30.99 17.81 66.00 71.0 42.00 7.00/6.0 277.5
40B‑1 63.500 39.37 38.10 22.89 82.20 89.2 52.96 8.50/8.0 394.0
48B‑1 76.200 48.26 45.72 29.24 99.10 107.00 63.80 12.00/10.0 621.6
56B‑1 88.900 53.98 53.34 34.32 114.60 123.00 77.80 13.50/12.0 940.0
64B‑1 101.600 63.50 60.96 39.40 130.00 138.50 90.17 15.00/13.0 1240.0
72B‑1 114.300 72.39 68.58 44.48 147.40 156.40 103.60 17.00/15.0 1550.0
Metric Duplex Roller Chain
Chain Size Pitch P Roller diameter d1 max Width between inner plates b1 min Pin diameter d2 max Pin length Inner plate depth h2 max Plate thickness T max Transverse Pt Average tensile strength Q0
mm mm mm mm L max
mm		 Lc max
mm		 mm mm mm kN
05B‑2 8.000 5.00 3.00 2.31 13.9 14.5 7.10 0.80 5.64 10.2

06B‑2

 9.525 6.35 5.72 3.28 23.4 24.4 8.20 1.30 10.24 18.7
08B‑2 12.700 8.51 7.75 4.45 31.0 32.2 11.80 1.60 13.92 38.7
10B‑2 15.875 10.16 9.65 5.08 36.1 37.5 14.70 1.70 16.59 56.2
12B‑2 19.050 12.07 11.68 5.72 42.0 43.6 16.00 1.85 19.46 66.1
16B‑2 25.400 15.88 17.02 8.28 68.0 69.3 21.00 4.15/3.1 31.88 152.1
20B‑2 31.750 19.05 19.56 10.19 77.8 81.5 26.40 4.50/3.5 36.45 229.0
24B‑2 38.100 25.40 25.40 14.63 101.7 106.2 33.20 6.00/4.8 48.36 319.2
28B‑2 44.450 27.94 30.99 15.90 124.6 129.1 36.70 7.50/6.0 59.56 406.8
32B‑2 50.800 29.21 30.99 17.81 124.6 129.6 42.00 7.00/6.0 58.55 508.5
40B‑2 63.500 39.37 38.10 22.89 154.5 161.5 52.96 8.50/8.0 72.29 711.9
48B‑2 76.200 48.26 45.72 29.24 190.4 198.2 63.80 12.00/10.0 91.21 1130.0
56B‑2 88.900 53.98 53.34 34.32 221.2 229.6 77.80 13.50/12.0 106.60 1760.0
64B‑2 101.600 63.50 60.96 39.40 249.9 258.4 90.17 15.00/13.0 119.89 2200.0
72B‑2 114.300 72.39 68.58 44.48 283.7 292.7 103.60 17.00/15.0 136.27 2750.0
Metric Triplex Roller Chain


Chain Size Pitch P Roller diameter d1 max Width between inner plates b1 min Pin diameter d2 max Pin length Inner plate depth h2 max Plate thickness t/T max Transverse Pt Average tensile strength Q0
mm mm mm mm L max
mm		 Lc max
mm		 mm mm mm kN
05B‑3 8.000 5.00 3.00 2.31 19.5 20.2 7.10 0.80 5.64 13.80

06B‑3

 9.525 6.35 5.72 3.28 33.5 34.6 8.20 1.30 10.24 30.10
08B‑3 12.700 8.51 7.75 4.45 45.1 46.1 11.80 1.60 13.92 57.80
10B‑3 15.875 10.16 9.65 5.08 52.7 54.1 14.70 1.70 16.59 84.50
12B‑3 19.050 12.07 11.68 5.72 61.5 63.1 16.00 1.85 19.46 101.80
16B‑3 25.400 15.88 17.02 8.28 99.8 101.2 21.00 4.15/3.1 31.88 227.10
20B‑3 31.750 19.05 19.56 10.19 114.2 117.9 26.40 4.50/3.5 36.45 334.30
24B‑3 38.100 25.40 25.40 14.63 150.1 154.6 33.20 6.00/4.8 48.36 493.00
28B‑3 44.450 27.94 30.99 15.90 184.2 188.7 36.70 7.50/6.0 59.56 609.50
32B‑3 50.800 29.21 30.99 17.81 183.2 188.2 42.00 7.00/6.0 58.55 770.50
40B‑3 63.500 39.37 38.10 22.89 226.8 233.8 52.60 8.50/8.0 72.20 1092.50
48B‑3 76.200 48.26 45.72 29.24 281.6 289.4 63.80 12.00/10.0 91.21 1710.00
56B‑3 88.900 53.98 53.34 34.32 327.8 336.2 77.80 13.50/12.0 106.60 2464.00
64B‑3 101.600 63.50 60.96 39.40 369.8 378.3 90.17 15.00/13.0 119.89 3300.00
72B‑3 114.300 72.39 68.58 44.48 420.0 429.0 103.60 17.00/15.0 136.27 4125.00
Metric Hollow Roller Chain
Chain Size Pitch P Inside width R Roller diameter D Overall width W Plate height H Hollow pin I.D. U Hollow pin O.D. L Minimum breaking load
mm mm mm mm mm mm mm KGS
08BHP 12.700 7.75 8.51 17.00 11.56 4.50 6.28 1100
10BHP 15.875 9.65 10.16 19.60 14.48 5.18 7.02 1500
12BHP 19.050 11.68 12.07 22.70 15.82 5.85 8.09 1700
16BHP 25.400 17.02 15.88 36.10 20.50 8.33 11.61 3340


Each model
