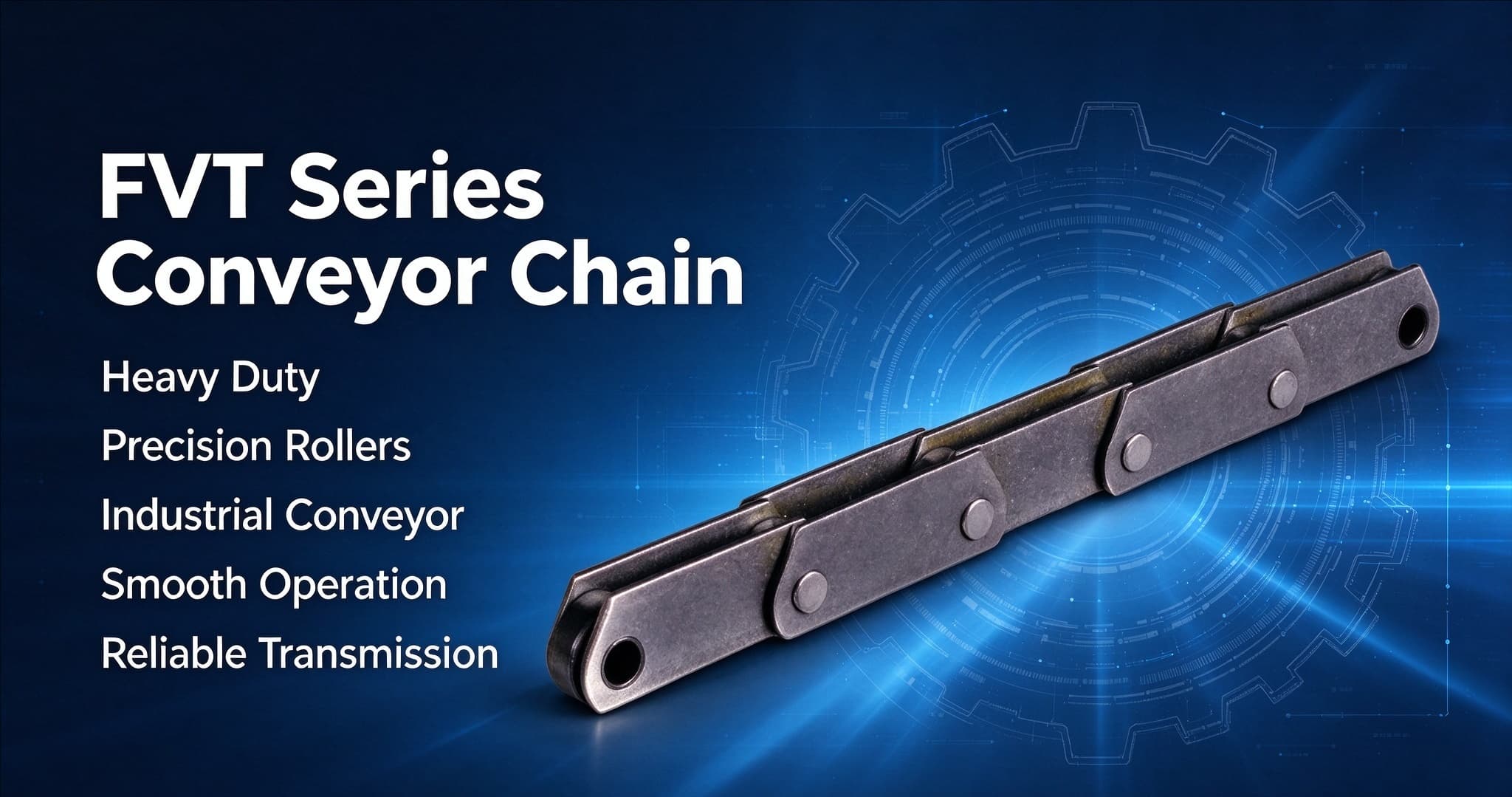

FVT Series Conveyor Chain_Shengzhou Hongxin Transmission (HXST) Co., Ltd.

裁剪旋转 (8)_compressed.jpeg

DIN Chain No.	Pitch P (mm)	Roller diameter	Pin diameter	Bush diameter	Plate thickness	Width between inner plates	Pin length		Plate depth		Ultimate tensile strength
DIN Chain No.	Pitch P (mm)	d1 max mm	d2 max mm	d3 max mm	T max mm	b1 min mm	L max mm	Lc max mm	h2 max mm	h max mm	Q min (kN/LB)	*Q min (kN/LB)
FVT40	50.0, 63.0, 80.0, 100.0, 125.0	32.0	10.0	15.0	3.0	18.0	36.0	39.0	35.0	22.5	40.0/9091	47.0/10681
FVT63	63.0, 80.0, 100.0, 125.0, 160.0	40.0	12.0	18.0	4.0	22.0	45.0	48.5	40.0	25.0	63.0/14317	75.0/17045
FVT90	63.0, 80.0, 100.0, 125.0, 160.0, 200.0, 250.0	48.0	14.0	20.0	5.0	25.0	53.0	56.5	45.0	27.5	90.0/20453	115.0/26136
FVT112	100.0, 125.0, 160.0, 200.0, 250.0	55.0	16.0	22.0	6.0	30.0	62.0	66.0	50.0	30.0	112.0/25452	170.0/38636
FVT140	100.0, 125.0, 160.0, 200.0, 250.0	60.0	18.0	25.0	6.0	35.0	67.0	71.5	60.0	37.5	140.0/31815	180.0/40908
FVT180	125.0, 160.0, 200.0, 250.0, 315.0	70.0	20.0	30.0	8.0	45.0	86.0	92.0	70.0	45.0	180.0/40908	250.0/56817
FVT250	160.0, 200.0, 250.0, 315.0	80.0	26.0	36.0	8.0	55.0	97.0	103.5	80.0	50.0	250.0/56817	300.0/68181
FVT315	160.0, 200.0, 250.0, 315.0, 400.0	90.0	30.0	42.0	10.0	65.0	113.0	126.5	90.0	55.0	315.0/71591	480.0/109089
