Stainless Steel Double Roller Chain

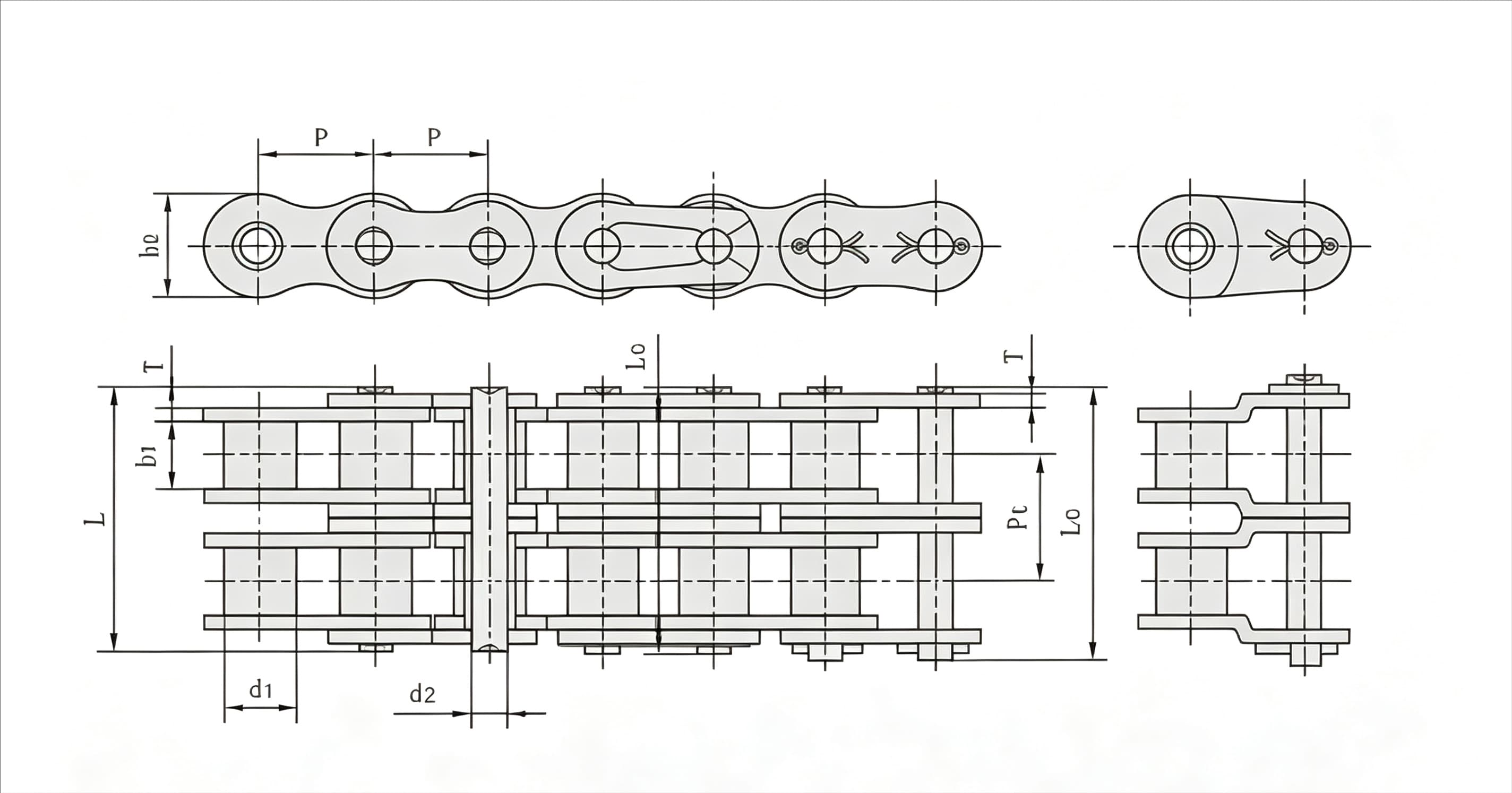

裁剪旋转 (5)_compressed.jpeg

Chain Size	Pitch P(mm)	Roller diameter d1 max(mm)	Width between inner plates b1 min(mm)	Pin diameter d2 max(mm)	Pin length L max(mm)	Pin length Lc max(mm)	Inner plate depth h2 max(mm)	Plate thickness T max(mm)	Transverse pitch Pt(mm)	Average tensile strength Q(kN)
40SS‑2	12.700	7.95	7.85	3.96	31.00	32.20	12.00	1.50	14.38	19.2/4316
41SS‑2	12.700	7.77	6.25	3.53	25.70	26.90	9.91	1.30	11.95	12.0/2698
50SS‑2	15.875	10.16	9.40	5.08	38.90	40.40	15.09	2.03	18.11	30.4/6834
60SS‑2	19.050	11.91	12.57	5.94	48.80	50.50	18.00	2.42	22.78	43.4/9757
80SS‑2	25.400	15.88	15.75	7.92	62.70	64.30	24.00	3.25	29.29	77.8/17490
100SS‑2	31.750	19.05	18.90	9.53	76.40	80.50	30.00	4.00	35.76	120.0/26977
120SS‑2	38.100	22.23	25.22	11.10	95.80	99.70	35.70	4.80	45.44	150.0/33720
140SS‑2	44.450	25.40	25.22	12.70	103.30	107.90	41.00	5.60	48.87	204.0/45859
160SS‑2	50.800	28.58	31.55	14.27	123.30	128.10	47.80	6.40	58.55	267.6/60156
04BSS‑2	6.000	4.00	2.80	1.85	12.30	13.30	5.00	0.60	5.50	4.0/899
05BSS‑2	8.000	5.00	3.00	2.31	13.90	14.50	7.10	0.80	5.64	6.2/1394
06BSS‑2	9.525	6.35	5.72	3.28	23.40	24.40	8.20	1.30	10.24	11.8/2651
08BSS‑2	12.700	8.51	7.75	4.45	31.00	32.20	11.80	1.60	13.92	21.0/4721
10BSS‑2	15.875	10.16	9.65	5.08	36.10	37.50	14.70	1.70	16.59	29.1/6542
12BSS‑2	19.050	12.07	11.68	5.72	42.00	43.60	16.00	1.85	19.46	37.0/8318
16BSS‑2	25.400	15.88	17.02	8.28	68.00	71.00	21.00	4.15/3.10	31.88	70.7/15894
20BSS‑2	31.750	19.05	19.56	10.19	77.80	81.50	26.40	4.50/3.50	36.45	105.6/23740
24BSS‑2	38.100	25.40	25.40	14.63	101.70	106.20	33.20	6.00/4.80	48.36	182.0/40915
28BSS‑2	44.450	27.94	30.99	15.90	124.60	129.10	36.70	7.50/6.00	59.56	216.0/48557
32BSS‑2	50.800	29.21	30.99	17.81	124.60	129.60	42.00	7.00/6.00	58.55	270.0/60698

Stainless Steel Double Roller Chain
