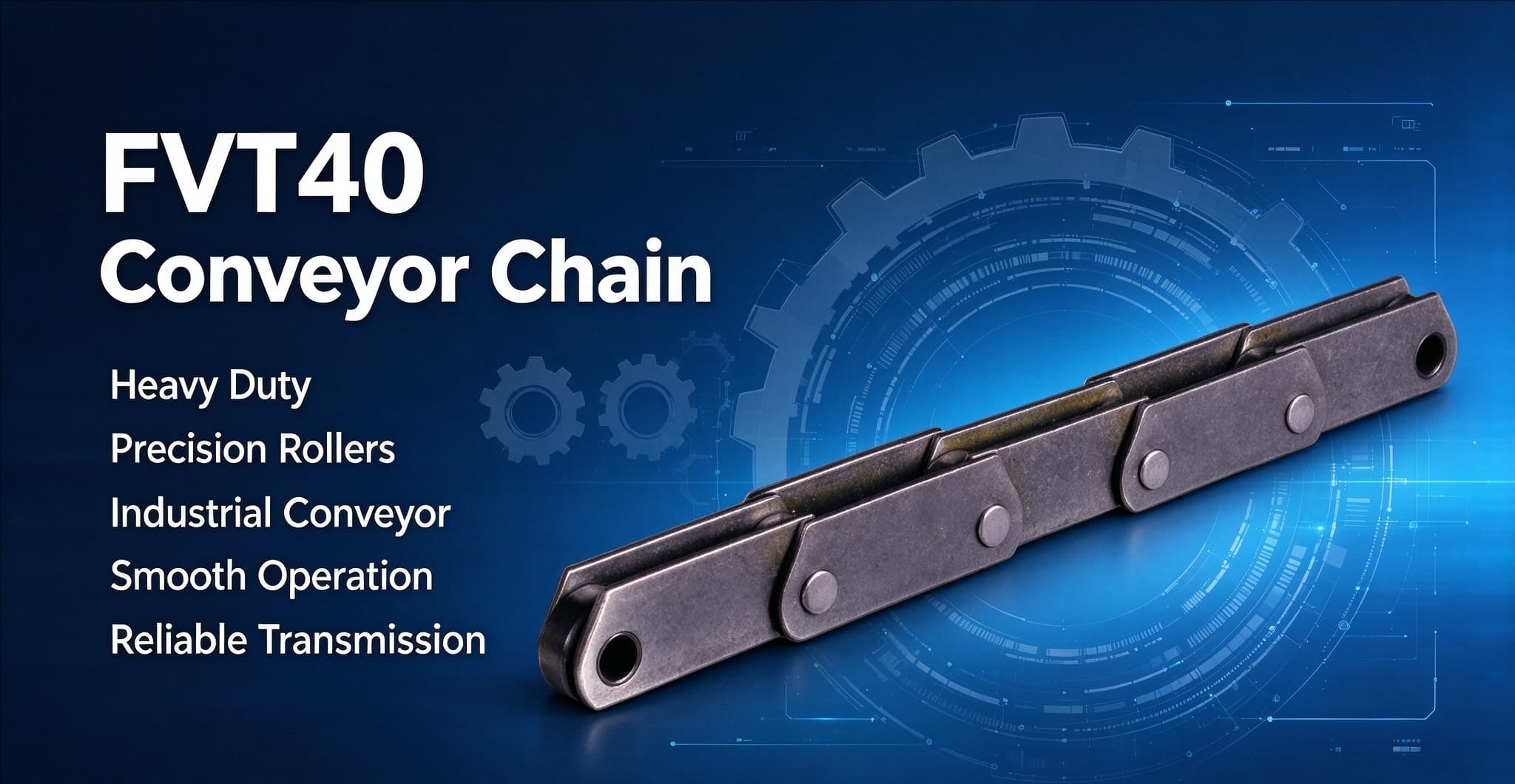

About #FVT40 Conveyor Chain
FVT40 is a DIN standard heavy-duty bush conveyor chain of the FV series. It is made of high-quality alloy steel, equipped with heat-treated pins, case-hardened seamless bushes and tempered high-strength link plates for reliable durability.
The chain can be fitted with small rollers, large rollers or flanged rollers. Custom attachments are available to suit various conveying structure requirements. Designed for low-speed, long-distance bulk material transport, it delivers stable operation and excellent wear resistance under heavy loads.
Widely used in wood processing, metallurgy, waste recycling, agriculture and other industrial conveying machinery. Carbon steel is the standard material, and stainless steel version is optional for corrosive working conditions. Matching sprockets can be supplied upon request.
FVT40 Conveyor Chains Dimension
| Item |
Specification |
| Chain Pitch |
50/63/80/100/125 mm |
| Roller diameter d1(max) |
32.0 mm |
| Pin diameter d2(max) |
10.0 mm |
| Bush diameter d3(max) |
15.0 mm |
| Plate thickness T(max) |
3.0 mm |
| Width between inner plates b1(min) |
18.0 mm |
| Pin length L(max) |
36.0 mm |
| Pin length Lc(max) |
39.0 mm |
| Plate depth h2(max) |
35.0 mm |
| Plate depth h(max) |
22.5 mm |
| Ultimate tensile strength Q(min) |
40.0 / 9091 kN/lb |
| *Ultimate tensile strength *Q(min) |
47.0 / 10681 kN/lb |
