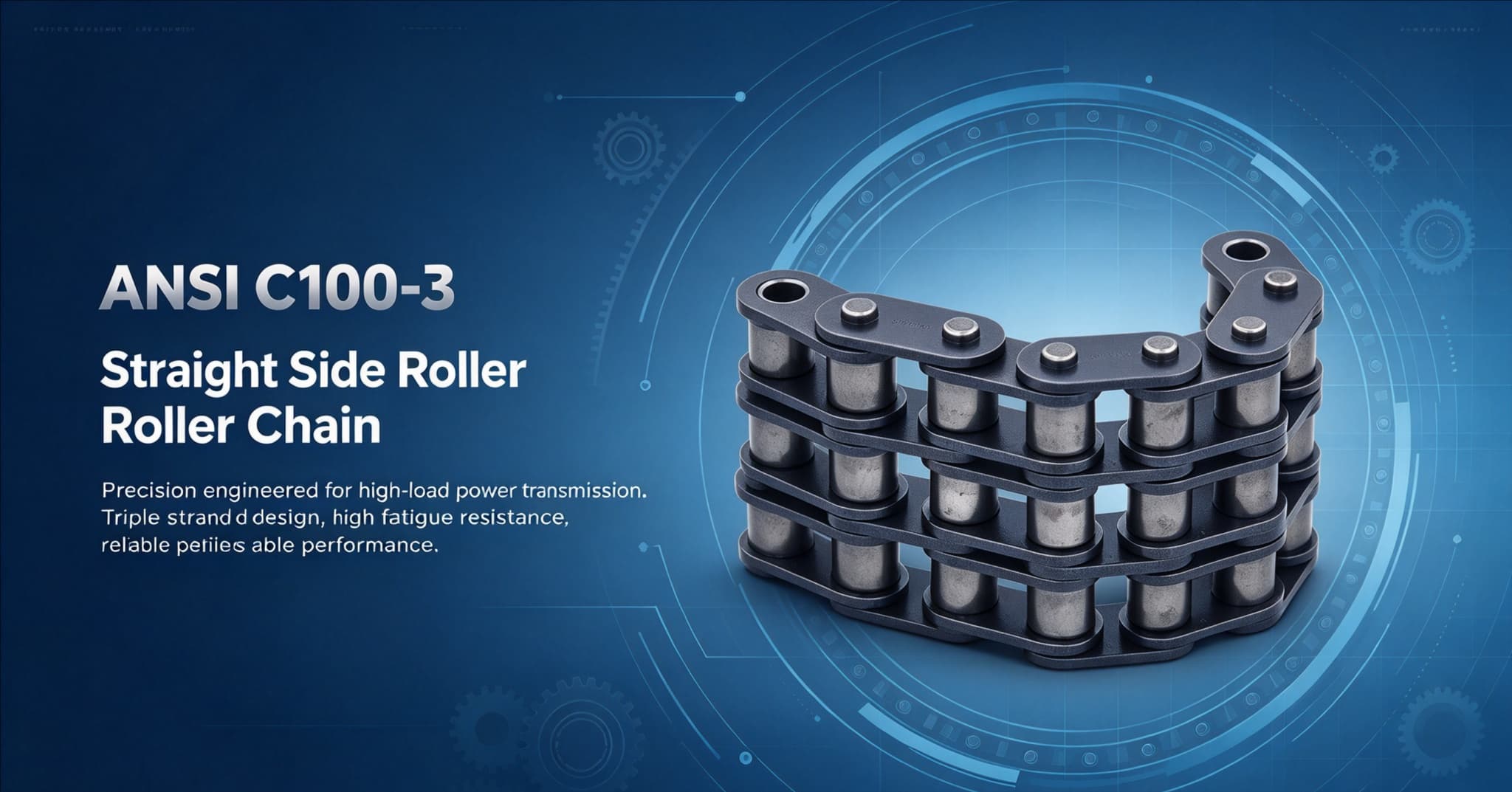

About #C100-3 Staight Side Roller Chain
ANSI C100-3 straight side roller chain is a heavy-duty triple-strand chain conforming to ANSI B29.1 standard. Designed with straight side plates, it supplies flat mounting surfaces for different attachments for bulk material conveying.
Key parts are made of high-tensile carbon steel and heat-treated for high tensile strength, excellent wear resistance and impact resistance. With a standard pitch of 1-1/4 inch, the triple-strand structure greatly raises load capacity and guarantees precise sprocket meshing with low vibration under heavy loads.
It can be supplied in riveted or cottered styles for simple installation and maintenance. Widely used in heavy-duty conveyors, grain handling and large processing machinery. Custom attachments and surface treatments are available for various operating environments.

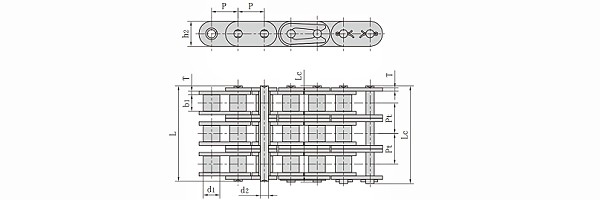

ANSI #C100-3 Staight Side Roller Chains Dimension
Pitch (p): 31.75mm
Roller Diameter (d1): 19.05mmWidth between inner plates (b1): 18.9mmPin diameter (d2): 9.53mmPin length (L): 112.2mmPin length (Lc): 116.3mmInner plate depth (h2): 30mmPlate thickness (T): 4mmTransverse pitch (Pt): 35.76mm
