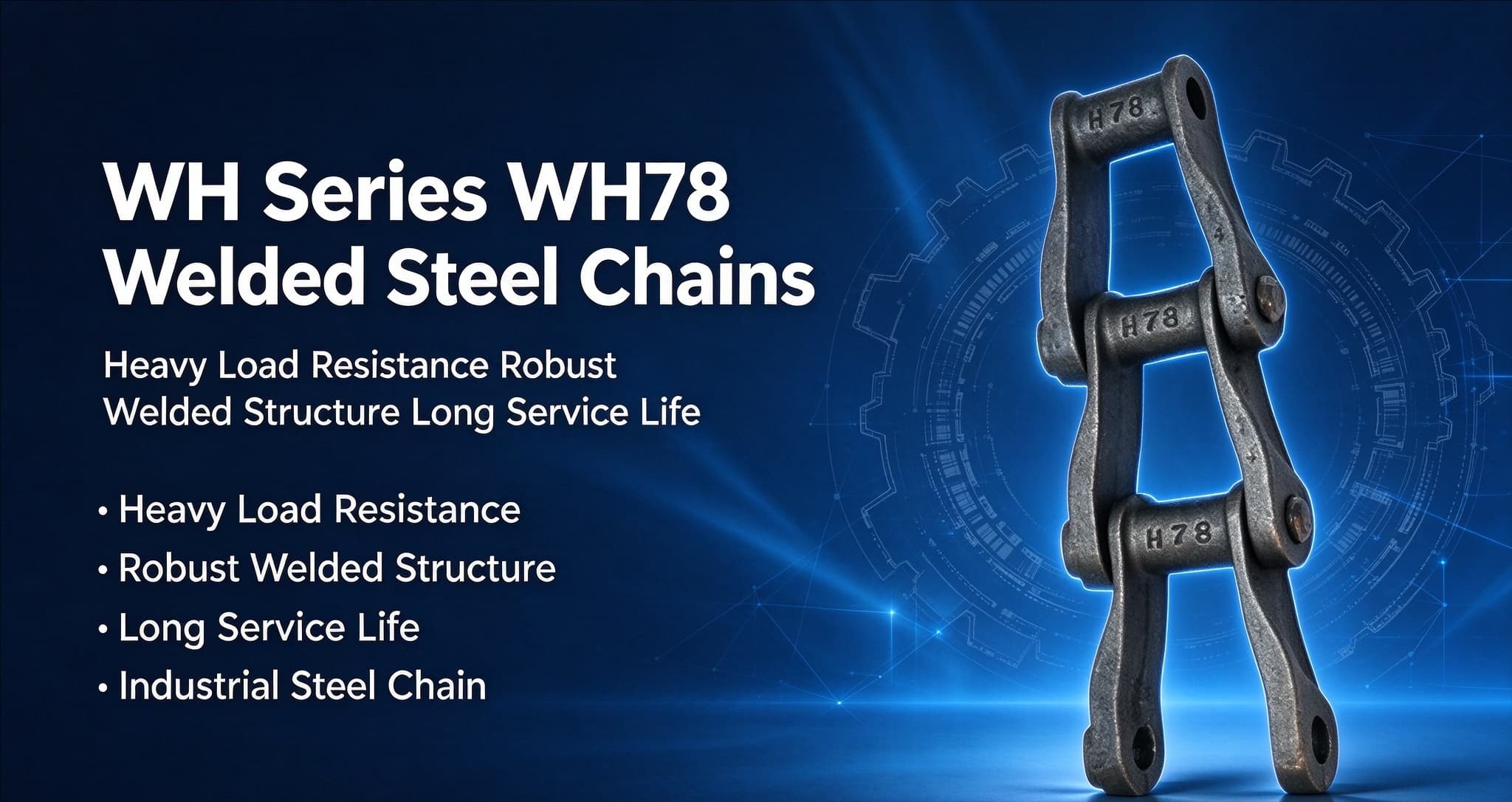

About WH78 Welded Steel Chain
WH78 welded steel chain belongs to WH series heavy-duty welded steel chains. It is fabricated by welding solid steel components, featuring robust one-piece construction, high tensile strength and excellent impact resistance.
Made of premium carbon or alloy steel, the chain delivers reliable wear resistance under harsh operating conditions. Its simple structure allows easy assembly, disassembly and maintenance.
This chain is widely used for bulk material conveying, including gravel, coal, ore, ash and agricultural products. It fits bucket elevators, apron conveyors and drag conveyors in mining, cement, agriculture and waste treatment industries.
Custom options like heat treatment and special surface treatment are available to extend service life. Our WH78 chain strictly follows industry standards, stable in performance and cost-effective for heavy-load continuous conveying tasks.

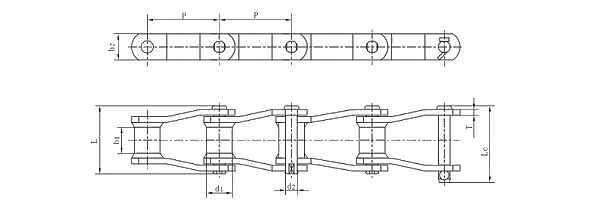

WH78 Welded Steel Chains Dimension
| WH78 Welded Steel Chain Dimensions |
Image |
| Pitch(P): 66.27 mm |
|
| Roller diameter(d1): 22.90 mm |
| Width between inner plates(b1): 28.40 mm |
| Pin diameter(d2): 12.78 mm |
| Pin length(L): 73.00 mm |
| Pin length(Lc): 79.3 mm |
| Inner plate depth(h2): 28.4 mm |
| Plate thickness(T): 6.4 mm |
| Tensile strength: 106.8/24273 kN/lbf |
| Weight per meter: 6.20 kg/m |
