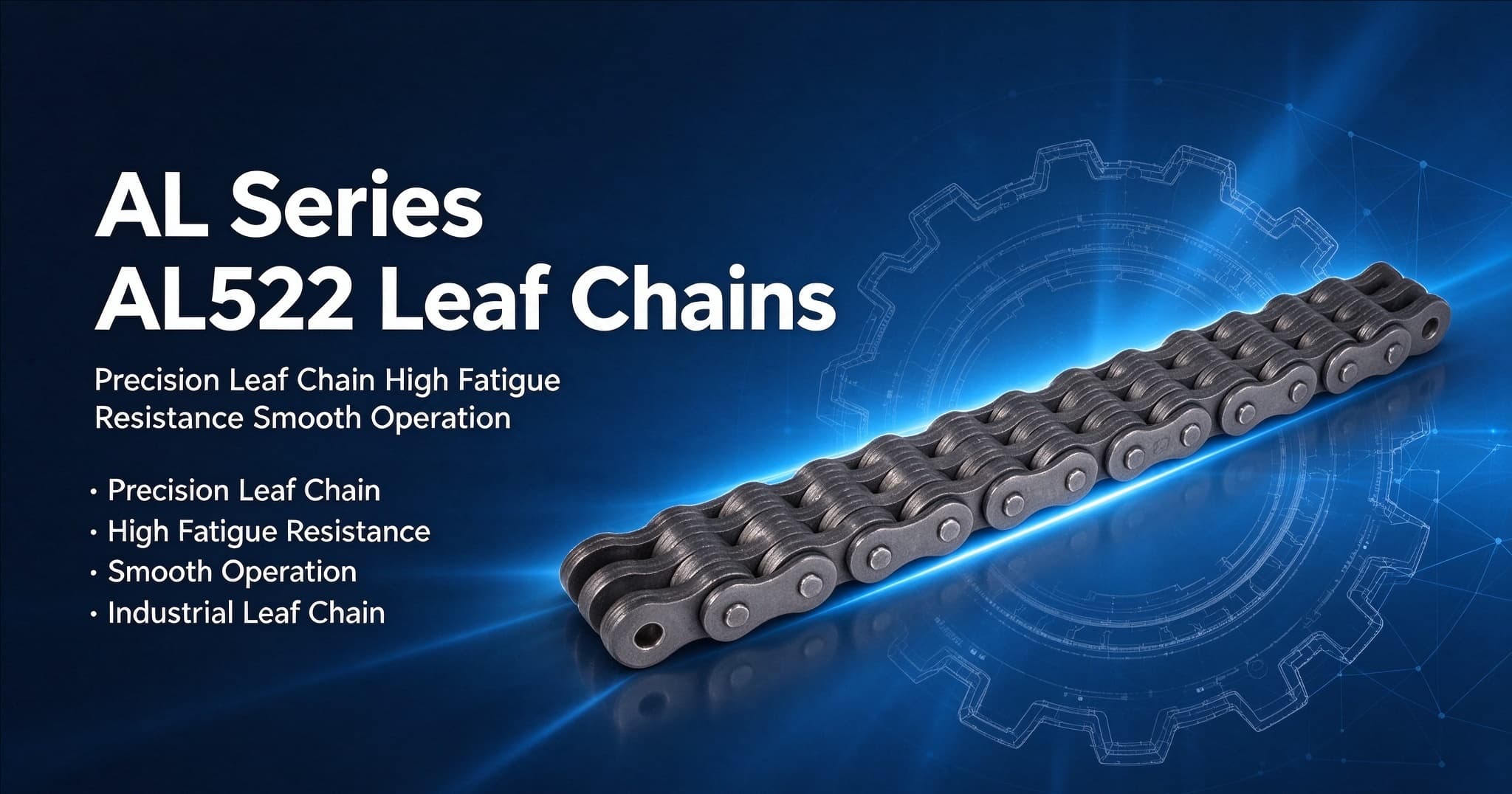

About AL522 Leaf Chains
AL522 is ANSI AL series leaf chain, 2×2 lacing, pitch 15.875mm (0.625 inch). Made of high-strength alloy steel link plates and pins, heat-treated and pre-stretched to control elongation and boost fatigue performance. This rollerless chain works with sheaves, featuring compact structure and steady load capacity. Typical applications: forklift masts, lifting platforms and light-to-medium hoisting systems. Surface options: blackening, phosphating for improved wear and rust resistance. Produced to ANSI B29.8 standard, fully interchangeable, simple to install and maintain. Custom cut lengths and connecting links are available.
AL522 Leaf Chains Technical Data
| AL522 Leaf Chain Dimensions |
Image |
| Pitch(P): 15.875 mm |
|
| Plate lacing: 2×2 |
| Plate depth(h2): 12.8 mm |
| Plate thickness(T): 2.03 mm |
| Pin diameter(d2): 5.08 mm |
| Pin length(L): 11.05 mm |
| Tensile strength: 24.5/5508 kN/lbf |
| Weight per meter: 0.64 kg/m |
