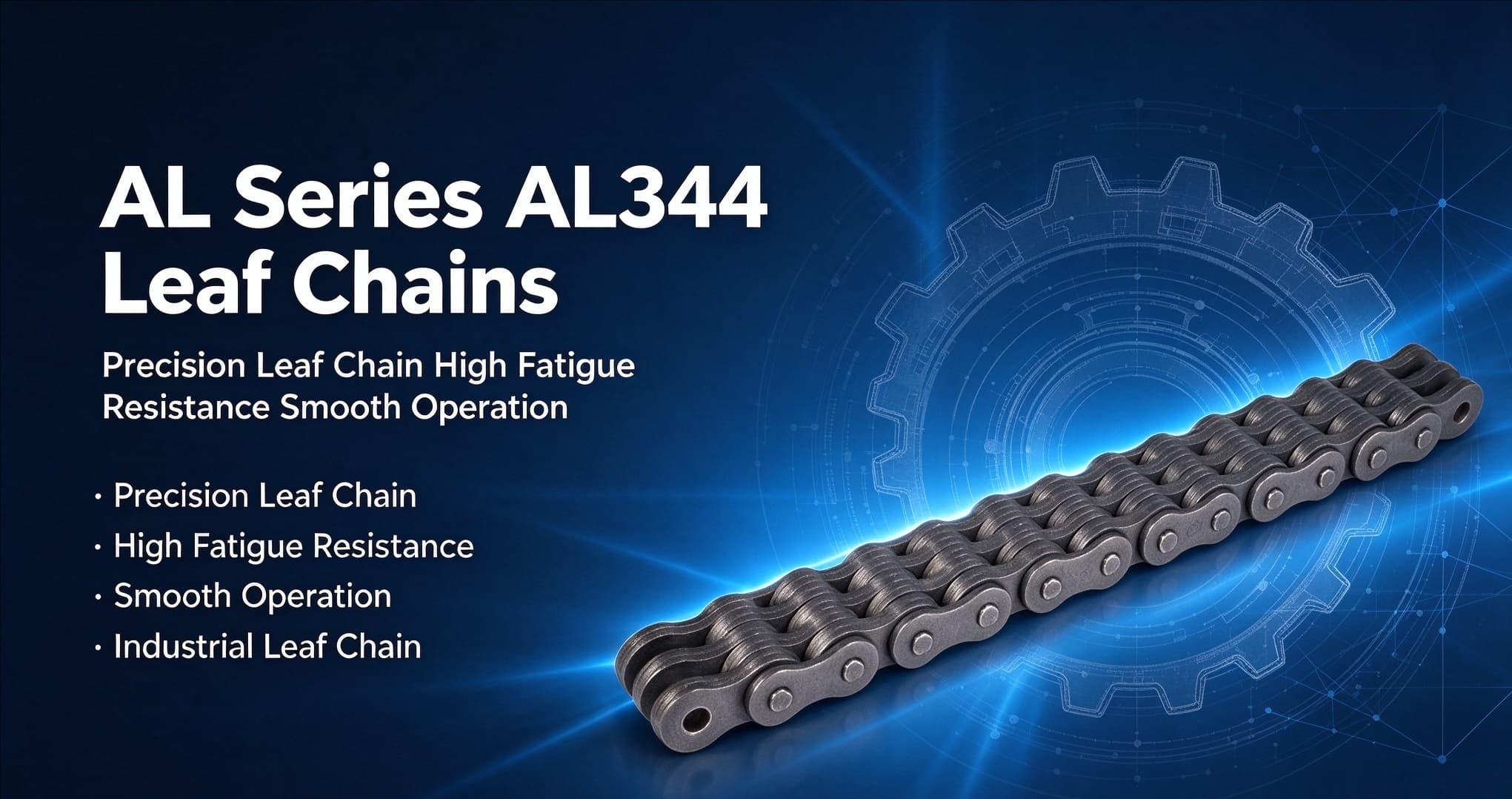

About AL344 Leaf Chains
AL344 is ANSI AL series light-duty leaf chain, 4×4 lacing, pitch 9.525mm (0.375 inch). Constructed of high-strength alloy steel link plates and hardened pins, heat-treated and pre-stretched at factory to minimize initial elongation. Compact rollerless structure saves space and delivers reliable tensile strength and fatigue resistance. It runs smoothly on sheaves, widely used for forklift masts, counterweight systems and light lifting equipment. Surface options include blackening and phosphating for better wear and corrosion resistance. Made to ANSI B29.8 standard, interchangeable, easy to assemble and maintain. Custom connecting links and cut lengths are available.
AL344 Leaf Chains Technical Data
| AL344 Leaf Chain Dimensions |
Image |
| Pitch(P): 9.525 mm |
|
| Plate lacing: 4×4 |
| Plate depth(h2): 7.7 mm |
| Plate thickness(T): 1.30 mm |
| Pin diameter(d2): 3.58 mm |
| Pin length(L): 11.60 mm |
| Tensile strength: 18.0/4090 kN/lbf |
| Weight per meter: 0.46 kg/m |
