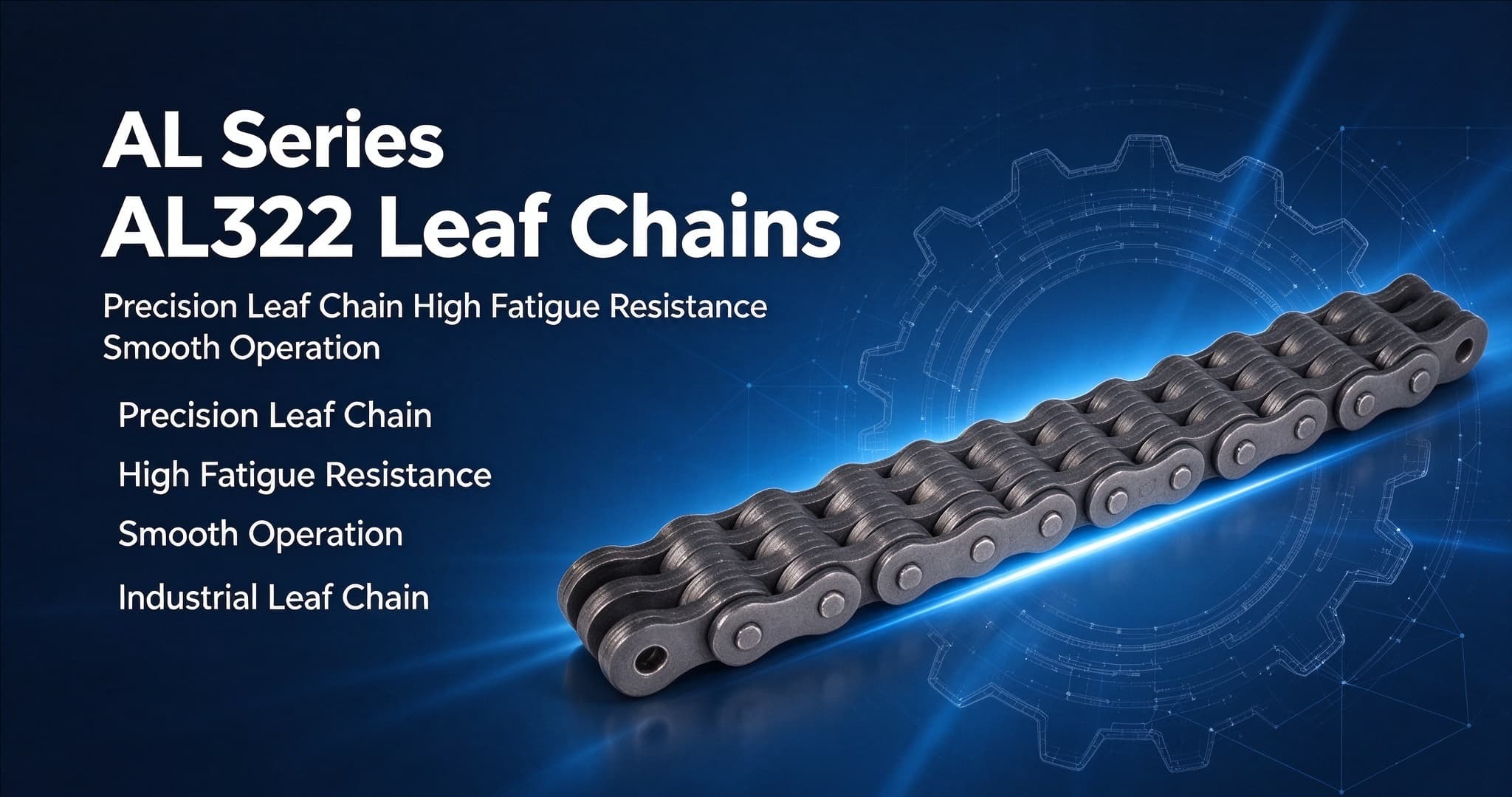

About AL322 Leaf Chains
AL322 belongs to ANSI AL series light-duty leaf chains, 2×2 lacing, pitch 9.525mm. Made of high-strength alloy steel with heat treatment and pre-stretching, delivering stable tensile strength and excellent fatigue resistance. Compact, rollerless structure saves installation space, runs smoothly with low elongation. Widely used for forklift masts, lifting platforms and light hoisting equipment. Surface treatment options include blackening, phosphating to boost wear and corrosion resistance. Strictly manufactured to ANSI B29.8 standard, consistent dimension, easy assembly and maintenance. Custom connecting links are available upon request.
AL322 Leaf Chains Technical Data
| AL322 Leaf Chain Dimensions |
Image |
| Pitch(P): 9.525 mm |
|
| Plate lacing: 2×2 |
| Plate depth(h2): 7.7 mm |
| Plate thickness(T): 1.30 mm |
| Pin diameter(d2): 3.58 mm |
| Pin length(L): 6.80 mm |
| Tensile strength: 9.0/2045 kN/lbf |
| Weight per meter: 0.23 kg/m |
