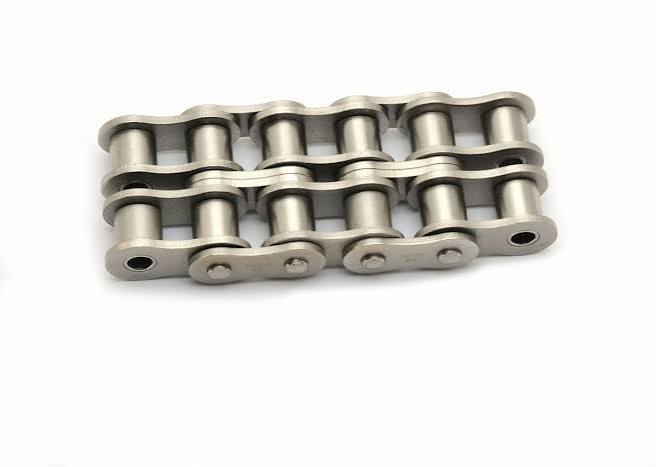

Precision-engineered pins, bushings and rollers guarantee smooth operation, low friction, strong tensile load capacity and excellent wear resistance. Its double-row structure delivers higher power transmission efficiency and heavier load bearing performance than single-strand chains.
Commonly applied in food processing, packaging conveyors, chemical equipment, marine machinery and pharmaceutical production lines. Custom chain lengths, connecting links and offset links are available to match diverse heavy-duty drive and conveying applications.

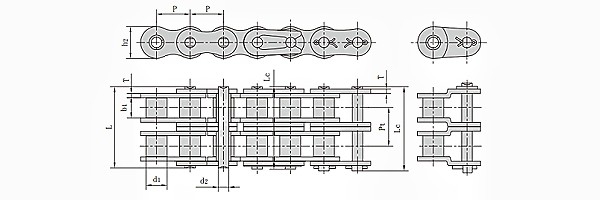

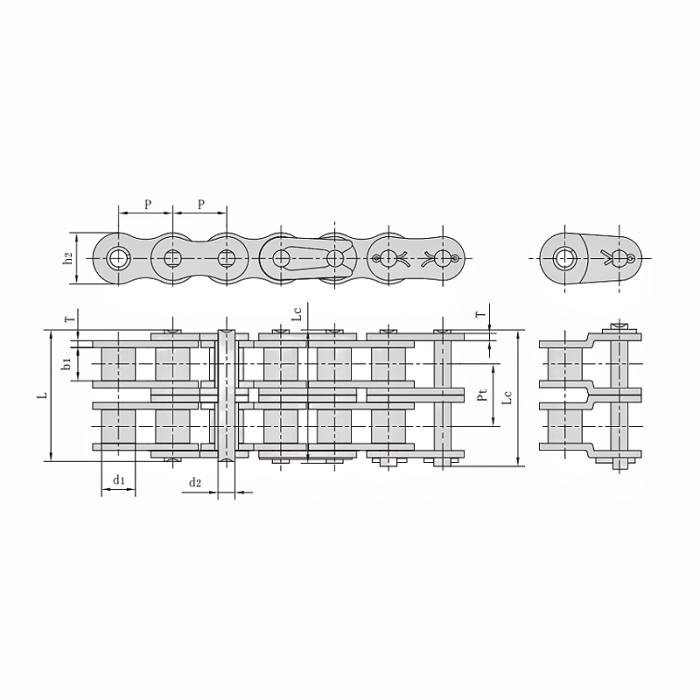

ANSI #50SS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 15.875mm
Roller diameter : 10.16mm
Width between inner plates (b1): 9.4mm
Pin diameter (d2): 5.08mm
Pin length (L): 38.9mm
Pin length (Lc): 40.4mm
Inner Plate depth (h2): 15.09mm
Plate thickness (T): 2.03mm
Transverse pitch (Pt): 18.11mm
