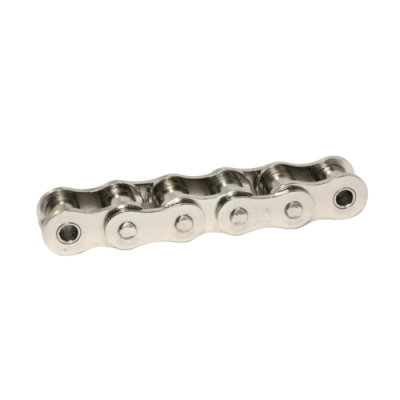

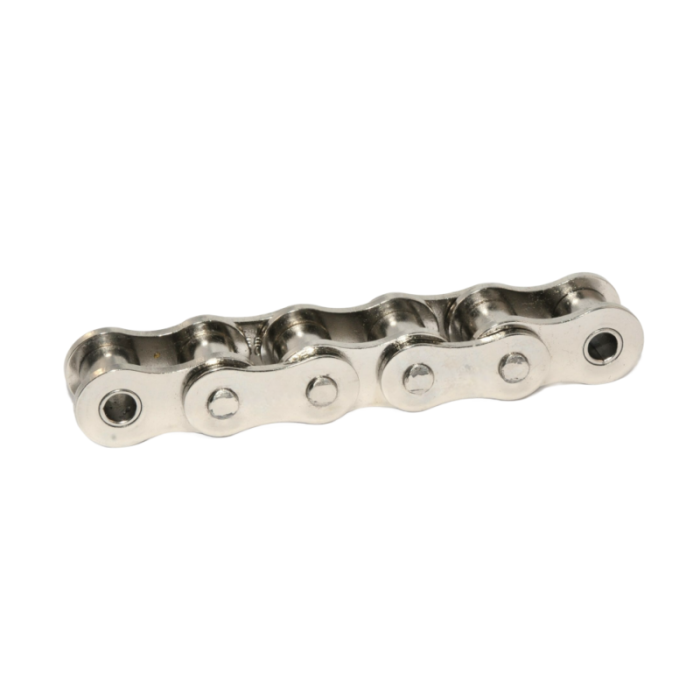

ANSI #50SS-1 Stainless Steel Roller Chains

  • Categories: Single Strand Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 50SS-1 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction



    About #50SS Stainless Steel Roller Chain

    ANSI #50SS stainless steel roller chain strictly complies with ANSI industry standards, constructed from premium stainless steel for exceptional corrosion, rust and moisture resistance.

    Precision-manufactured pins, bushings and rollers deliver smooth operation, low friction, stable transmission and outstanding tensile strength. It works reliably in humid, acidic, saline and sanitary environments, ideal for food processing, packaging machinery, chemical equipment, agricultural conveyors and marine transmission systems.

    Wear-resistant structure extends service life with minimal maintenance. Custom lengths, connecting links and offset links are available to meet diverse industrial drive and conveying demands.

    ANSI #50SS Stainless Steel Roller Chain Dimension




  • Pitch (P): 15.875mm

  • Roller diameter (d1): 10.16mm

  • Width between inner plates (b1) : 9.4mm

  • Pin diameter (d2): 5.08mm

  • Pin length (L): 20.7mm

  • Pin length (Lc): 22.2mm

  • Inner plate depth (h2): 15.09mm

  • Plate thickness (T): 2.03mm
