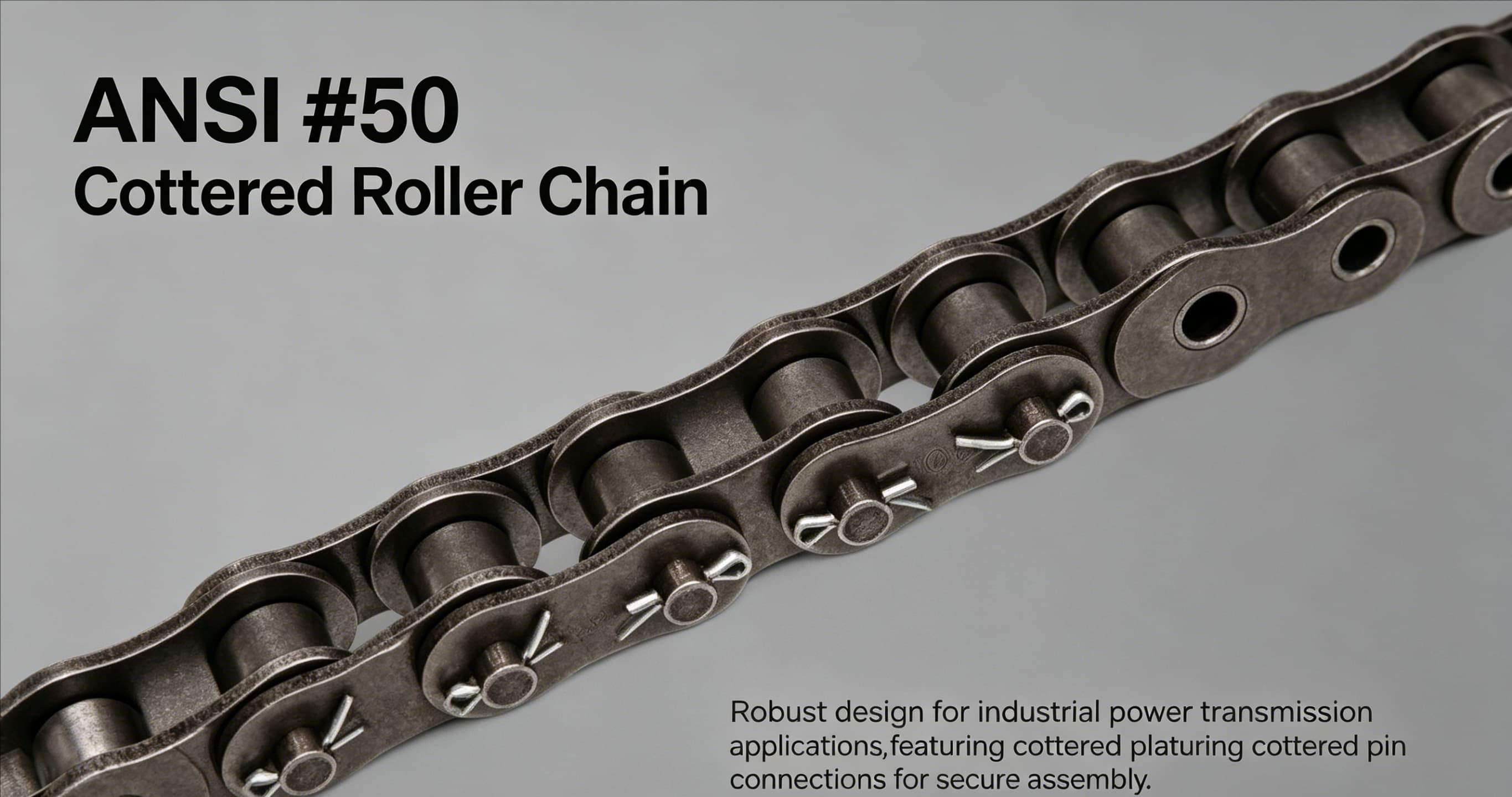

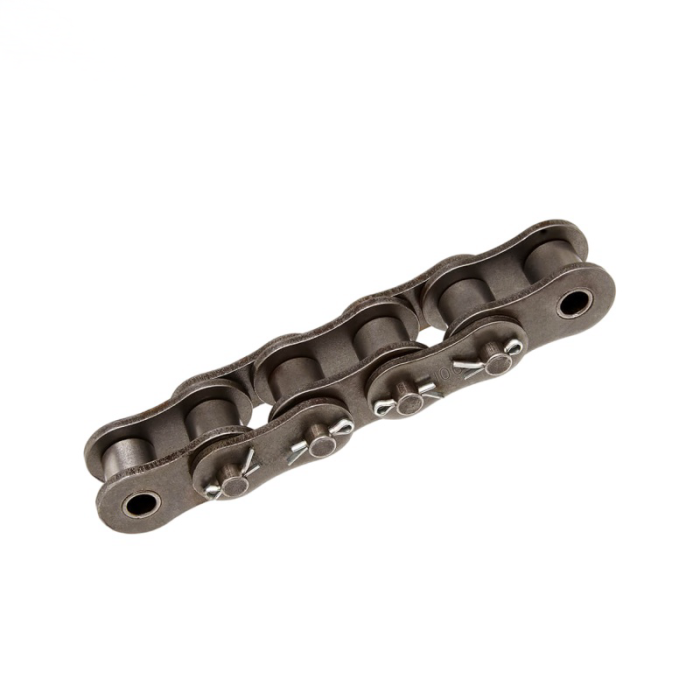

ANSI #50 cottered roller chain strictly complies with ANSI industrial standards, crafted from high-strength carbon steel with precision heat treatment for outstanding tensile strength and wear resistance.
Cottered pin design enables easy disassembly, quick length adjustment and convenient on-site maintenance. Compact structure delivers stable low-noise transmission, suited for moderate-load power drive scenarios.
Resistant to fatigue and abrasion, it fits agricultural machinery, conveyors, packaging equipment and general industrial drives. Strict dimensional control ensures perfect sprocket matching, long service life and reliable continuous operation for heavy-duty industrial applications.

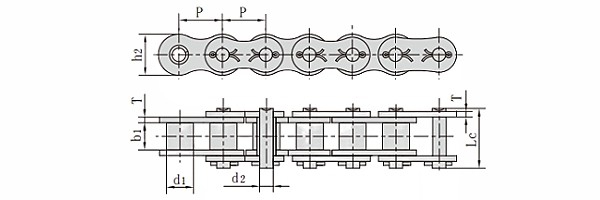

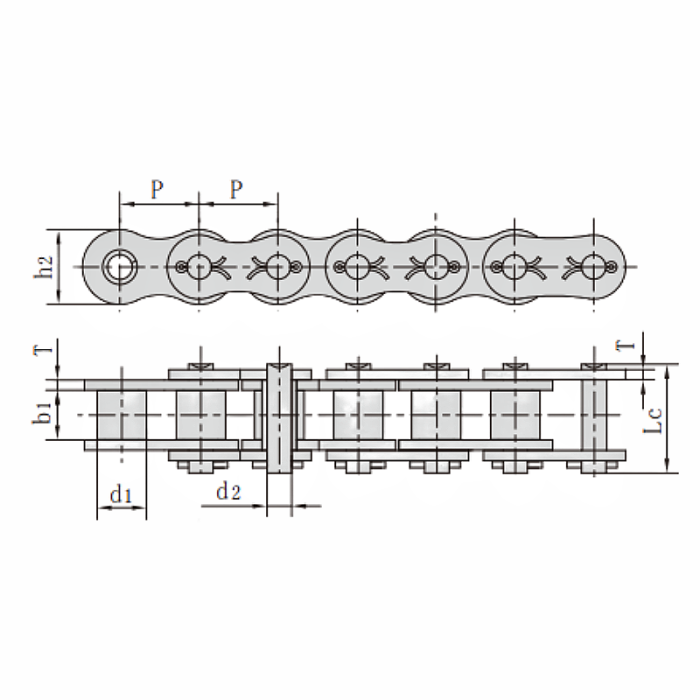

ANSI #50-1 Cottered Roller Chains Dimension
Pitch (P): 15.875mm
Roller diameter (d1): 10.16mm
Width between inner plates (b1): 9.4mm
Pin diameter (d2): 5.08mm
Pin length (Lc): 23.3mm
Inner plate depth (h2): 15.09mm
Plate thickness (T) : 2.03mm
