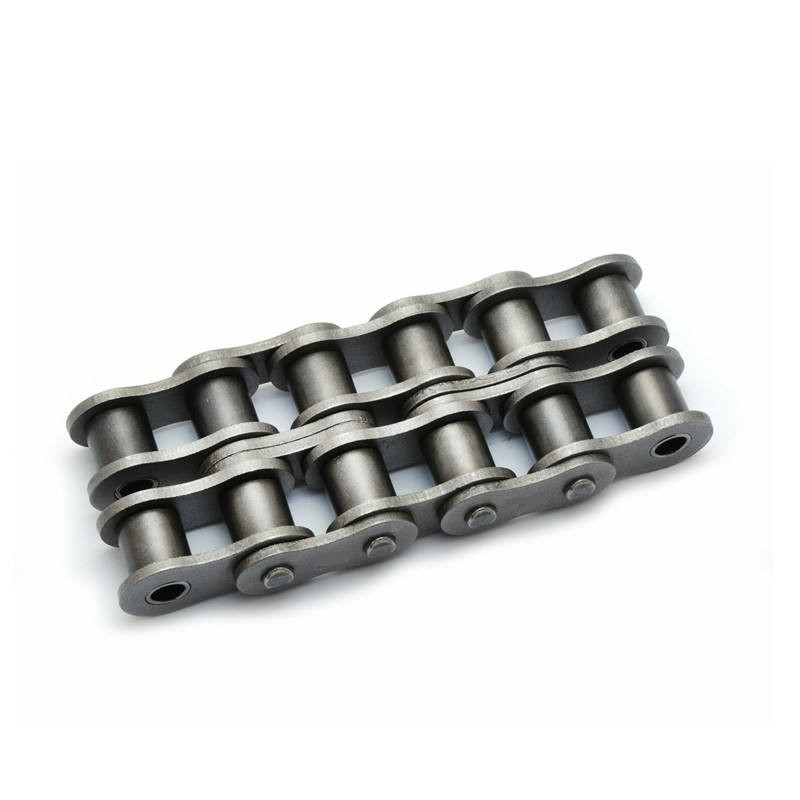

About #50-2 Double Roller Chain
ANSI #50-2 double roller chain strictly complies with ANSI industrial standards. Crafted from high-strength carbon steel with precision heat treatment, it delivers outstanding tensile strength, wear resistance and stable load capacity.
Dual-row structure evenly distributes heavy torque, ideal for conveyors, agricultural machinery, packaging and general power transmission equipment. Smooth pin-bushing fit ensures low friction, quiet operation and long service life.
Available with surface anti-rust treatment options. Rigid quality inspection guarantees consistent dimensional accuracy and reliable performance for heavy-duty industrial applications.

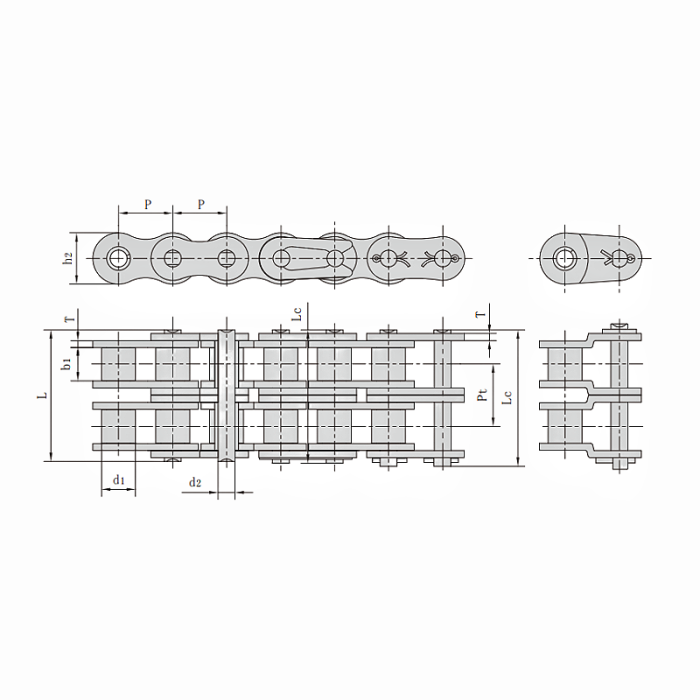

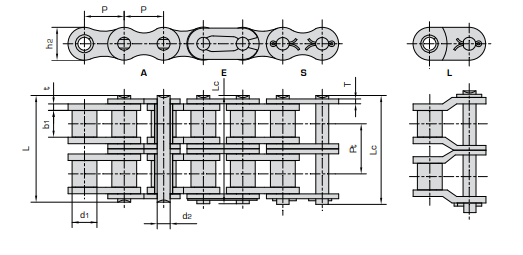

ANSI #50-2 Roller Chains Dimension
Pitch (P): 15.875mm
Roller diameter (d1): 10.16mm
Width between inner plates (b1): 9.4mm
Pin diameter (d2): 5.08mm
Pin length (L): 38.9mm
Pin length (Lc): 40.4mm
Inner plate depth (h2): 15.09mm
Plate thickness (T): 2.03mm
Transverse pitch (Pt): 18.11mm
