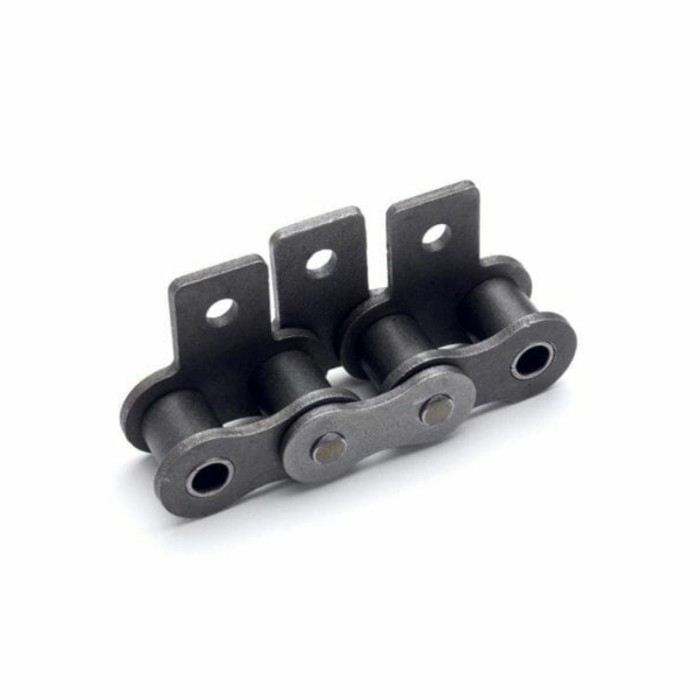

ANSI #41 SA1 attachment roller chain conforms fully to ANSI industrial standards. It features straight SA1 side attachments with precise drilled holes, allowing quick installation of conveying fixtures, pallets and transport brackets.
Constructed from premium carbon steel with precise heat treatment, the chain offers solid tensile strength, great wear resistance and stable running performance.
Accurately machined rollers minimize friction and noise for smooth light-load transmission and conveying.
Suitable for small conveyors, agricultural machines, packaging and automated assembly equipment. Custom chain lengths and anti-corrosion surface finishes are available to satisfy your unique equipment needs.

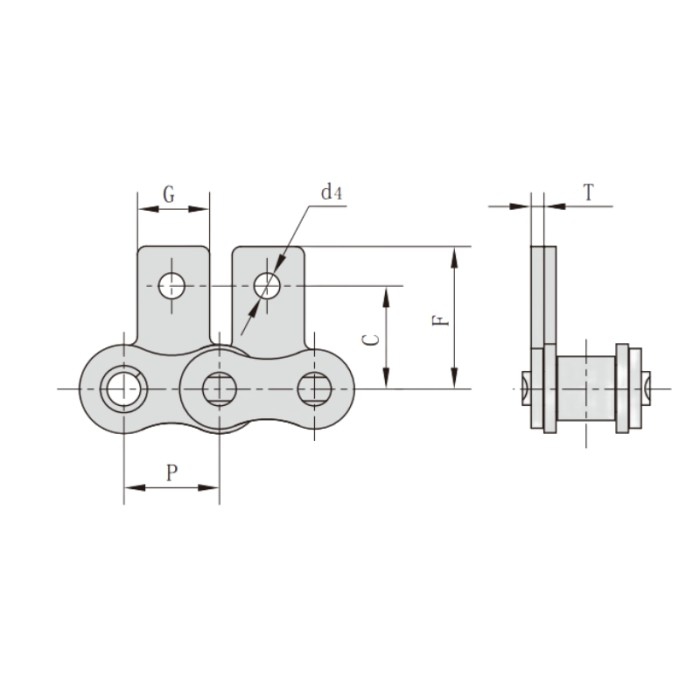

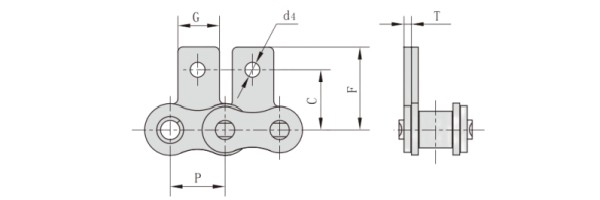

ANSI #41 SA1 Attachment Roller Chain Dimension
Pitch (P): 12.7mm
Attachment Dimension (G): 9.5mm
Attachment Dimension (C): 12.7mm
Attachment Dimension (F): 19.05mm
Attachment Dimension (d4): 3.4mm
Link Plate Thickness (T): 1.5mm
