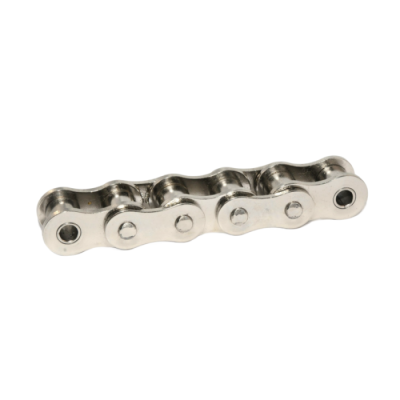

ANSI #41SS-1 Stainless Steel Roller Chains

  • Categories: Single Strand Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 41SS-1 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

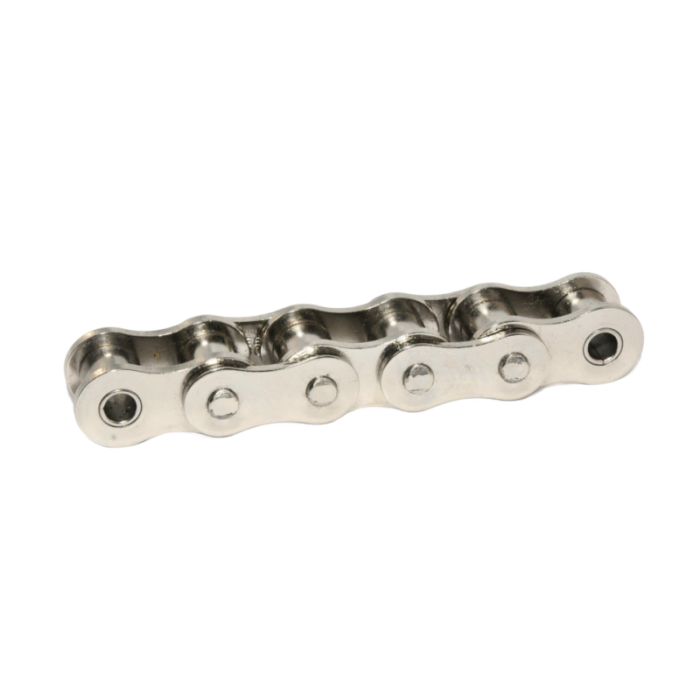

    About #41SS Stainless Steel Roller Chain

    #41SS roller chain complies with ANSI industry standards, manufactured from high-grade stainless steel with superior rust and corrosion resistance. It withstands moist, slightly acidic, alkaline and sanitary working conditions effectively.


    Precision-engineered pins, bushings and rollers provide steady tensile strength, low friction and smooth operation, greatly reducing abrasion and extending service lifespan.


    Perfect for food machinery, beverage production, pharmaceutical, textile, small agricultural and marine conveying equipment. Complete accessories including connecting links and offset links support quick assembly. It is a durable, hygienic power transmission chain for light to medium load applications.

    ANSI #41SS Stainless Steel Roller Chain Dimension


  • Pitch (P): 12.7mm
  • Roller diameter (d1): 7.77mm
  • Width between inner plates (b1) : 6.25mm
  • Pin diameter (d2): 3.58mm
  • Pin length (L): 13.75mm
  • Pin length (Lc): 15mm
  • Inner plate depth (h2): 9.91mm
  • Plate thickness (T): 1.3mm
