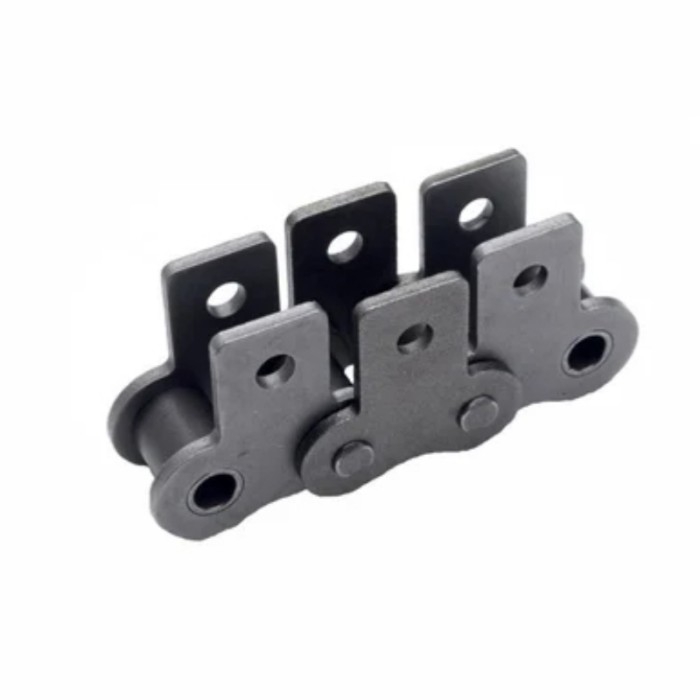

About #40 SK1 Attachment Roller Chain
ANSI #40 SK1 attachment roller chain meets official ANSI industry specifications. It features offset SK1 side plates with accurate mounting holes, convenient for fixing trays, fixtures and transport accessories.
Made of high-grade carbon steel with standardized heat treatment, the chain boasts strong tensile strength, excellent abrasion resistance and stable long-term performance. Precision-machined rollers ensure low friction, quiet operation and reliable medium-load power transmission & conveying.
Perfect for packaging lines, agricultural machinery, automated assembly and light industrial conveyors. Custom cutting lengths and surface anti-rust treatments can be provided to fit your equipment requirements.

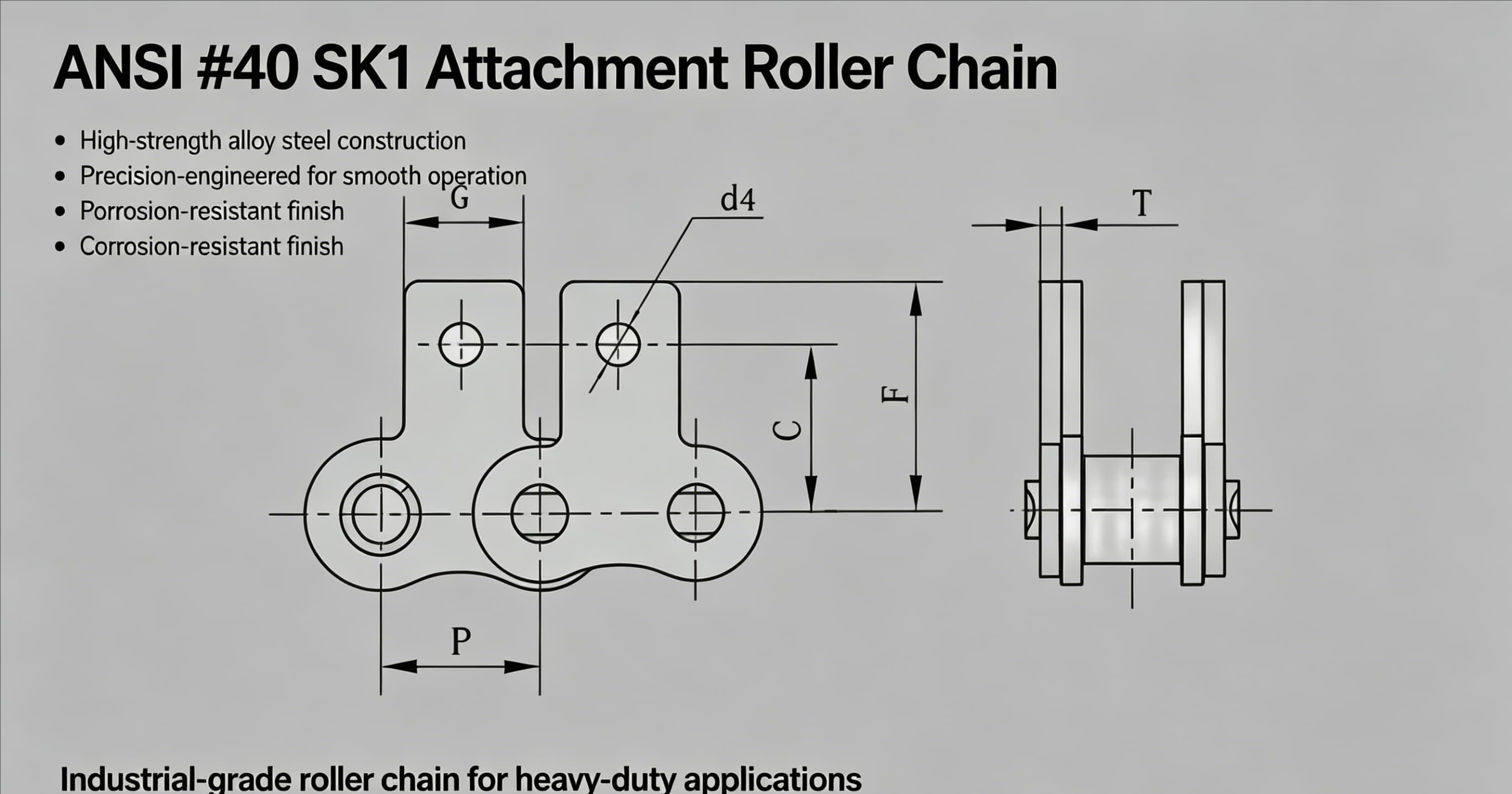

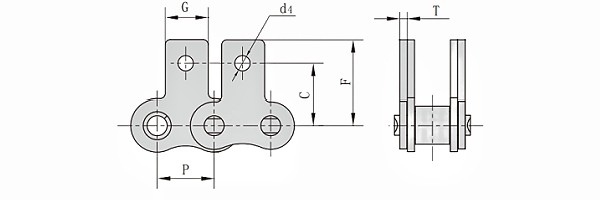

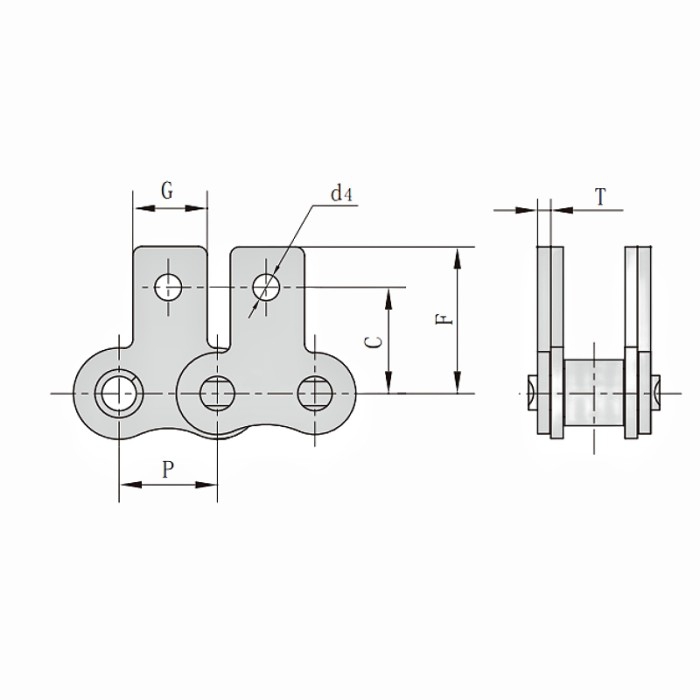

ANSI #40 SK1 Attachment Roller Chain Dimension
Pitch (P): 12.7mm
Attachment Dimension (G): 9.5mm
Attachment Dimension (C): 12.7mm
Attachment Dimension (F): 19.05mm
Attachment Dimension (d4): 3.4mm
Link Plate Thickness (T): 1.5mm
