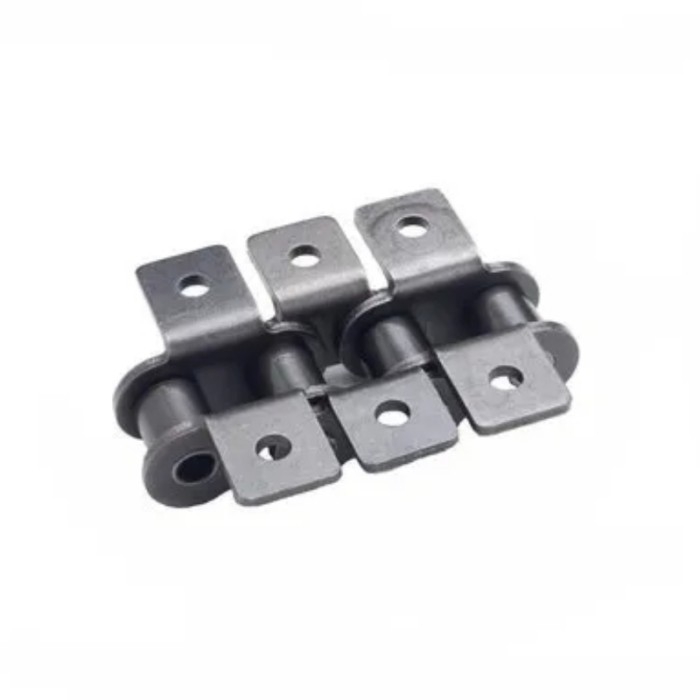

ANSI #40 Roller Chain With K1 Attachment

  • Categories: Roller Chain With K1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 40-K1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

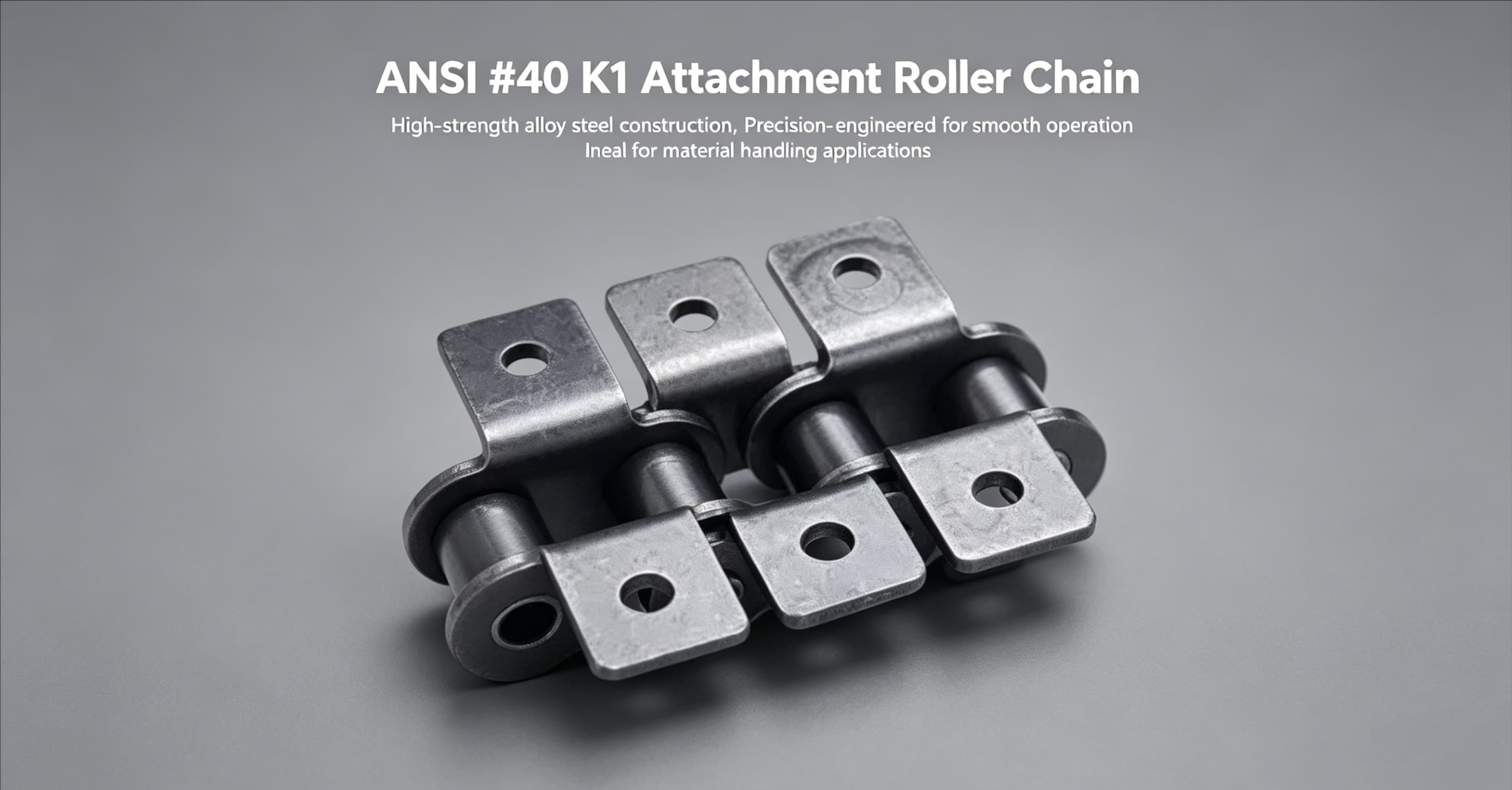

    裁剪旋转 (3)_compressed.jpeg

    About #40 K1 Attachment Roller Chain

    Manufactured to strict ANSI standards, this #40 roller chain is fitted with standard K1 attachments, well-suited for material conveying and handling.


    Made of high-grade steel, it features high tensile strength, excellent wear resistance and stable operation. It runs quietly and needs little maintenance for longer service life. Fully compatible with standard #40 sprockets for easy installation and replacement. Ideal for conveyors, packaging equipment and general industrial machinery. A durable, cost-effective pick for your daily power transmission work.

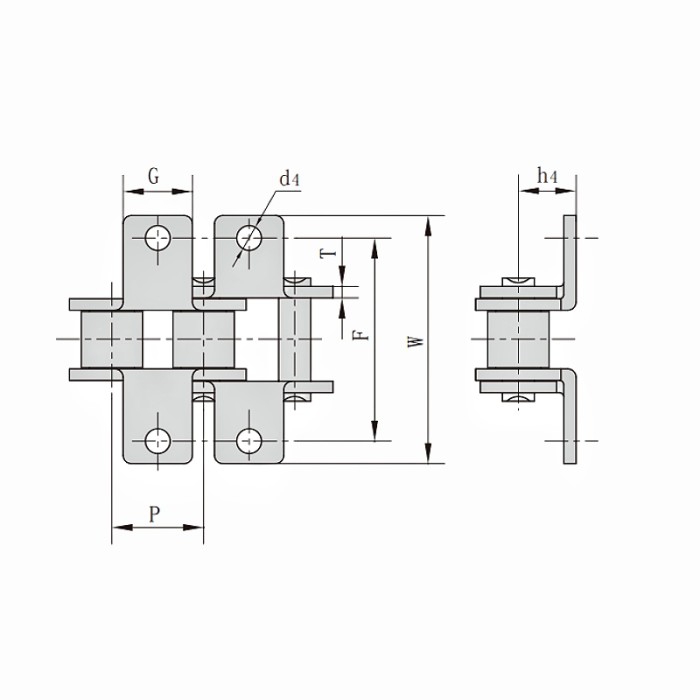

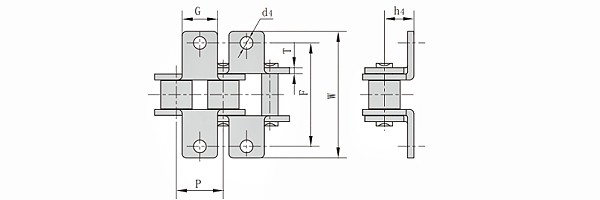

    ANSI #40 K1 Attachment Roller Chain Dimension



  • Pitch (P): 12.7mm
  • Attachment Dimension (G): 9.5mm
  • Attachment Dimensio n (F): 25.4mm
  • Attachment Dimension (w): 35.2mm
  • Attachment Dimension (h4): 7.9mm
  • Attachment Dimension (d4): 3.4mm
  • Link Plate Thickness (T) : 1.5mm
