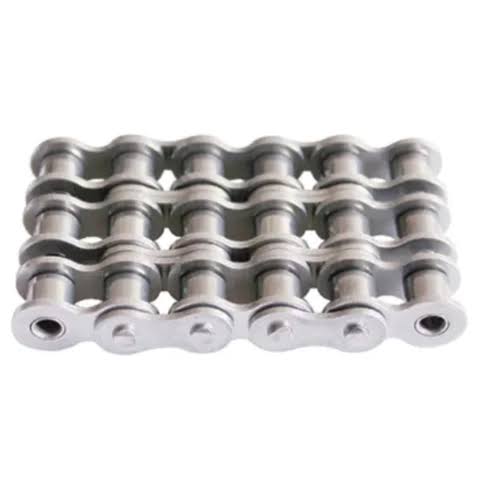

About #40SS-3 Stainless Steel Roller Chain
Compliant with strict ANSI standards, our #40SS-3 triple strand stainless steel roller chain adopts high-grade stainless steel material, featuring outstanding anti-rust, anti-corrosion and wear resistance.
It maintains stable transmission performance in humid, chemical and outdoor harsh environments, suitable for food machinery, marine equipment, chemical industry and other scenarios. With high tensile strength, smooth running and low noise, this chain requires little maintenance and boasts a long service life. Fully interchangeable with standard #40 sprockets, it enables easy installation and replacement. A reliable power transmission solution for your industrial operations.

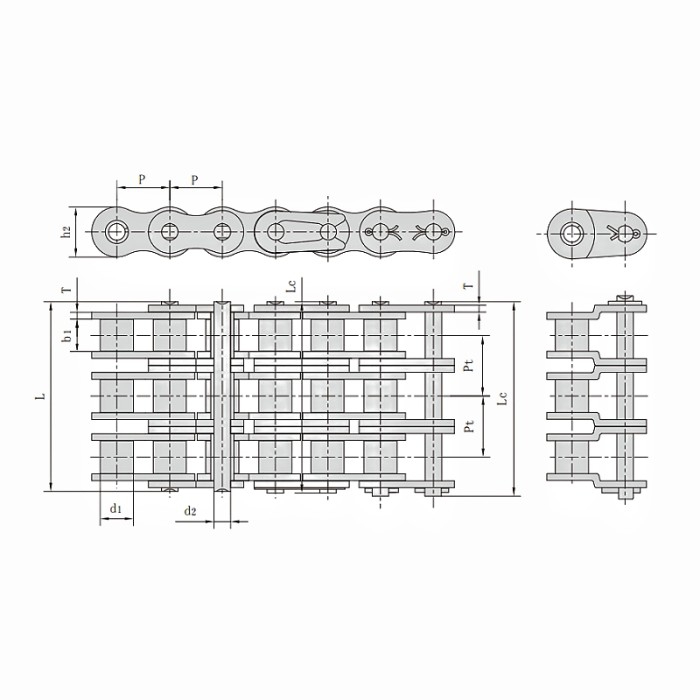

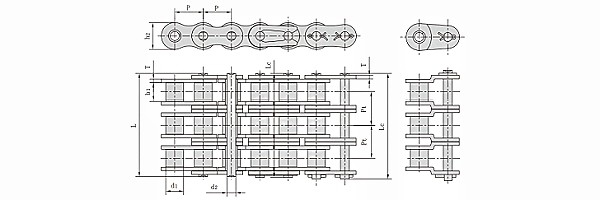

ANSI #40SS-3 Stainless Steel Roller Chain Dimension
Pitch (P): 12.7mmRoller diameter (d1): 7.95mmWidth between inner plates (b1): 7.85mmPin diameter (d2): 3.96mmPin length (L): 45.4mmPin length (Lc): 46.6mmInner plate depth (h2) : 12mmPlate thickness (T) : 1.5mmTransverse pitch (Pt): 14.38mm
