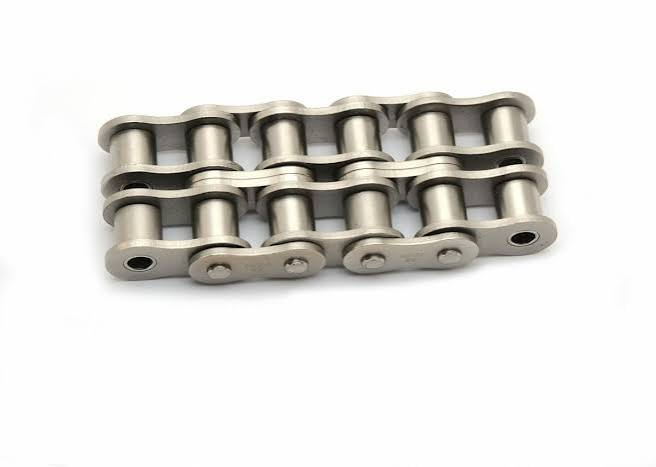

About #40SS-2 Stainless Steel Roller Chain
Fully compliant with ANSI standards, this duplex chain is crafted from premium 304 stainless steel. Featuring solid rollers and solid bushings, it boasts high tensile strength, excellent wear resistance and outstanding anti-corrosion performance.
It works steadily in humid, chemical and extreme temperature environments. Low maintenance and long service life make it ideal for food processing, chemical industry, conveying systems and various industrial power transmission applications. Reliable quality ensures stable operation for your equipment.

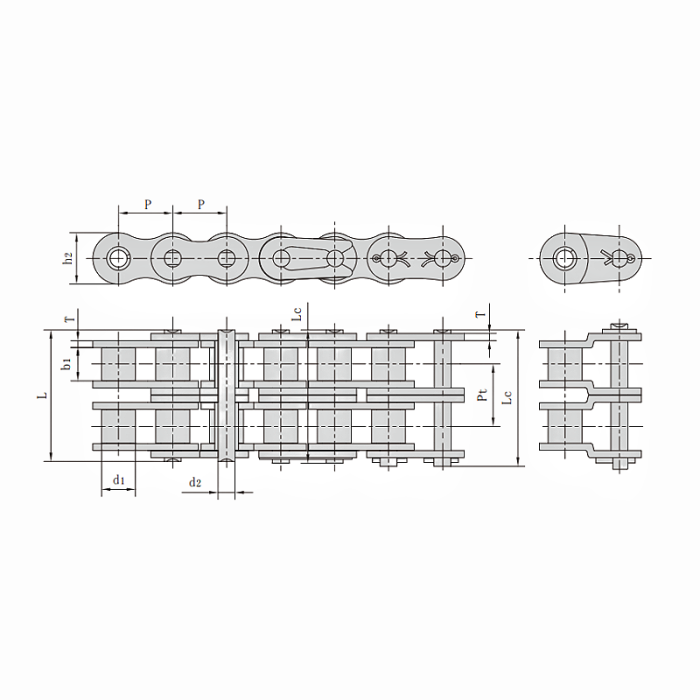

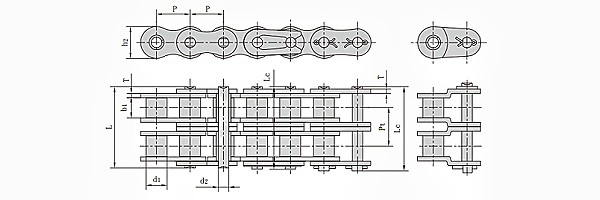

ANSI #40SS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 12.7mmRoller diameter : 7.95mmWidth between inner plates (b1): 7.85mmPin diameter (d2): 3.96mmPin length (L): 31mmPin length (Lc): 32.2mmInner Plate depth (h2): 12mmPlate thickness (T): 1.5mmTransverse pitch (Pt): 14.38mm
