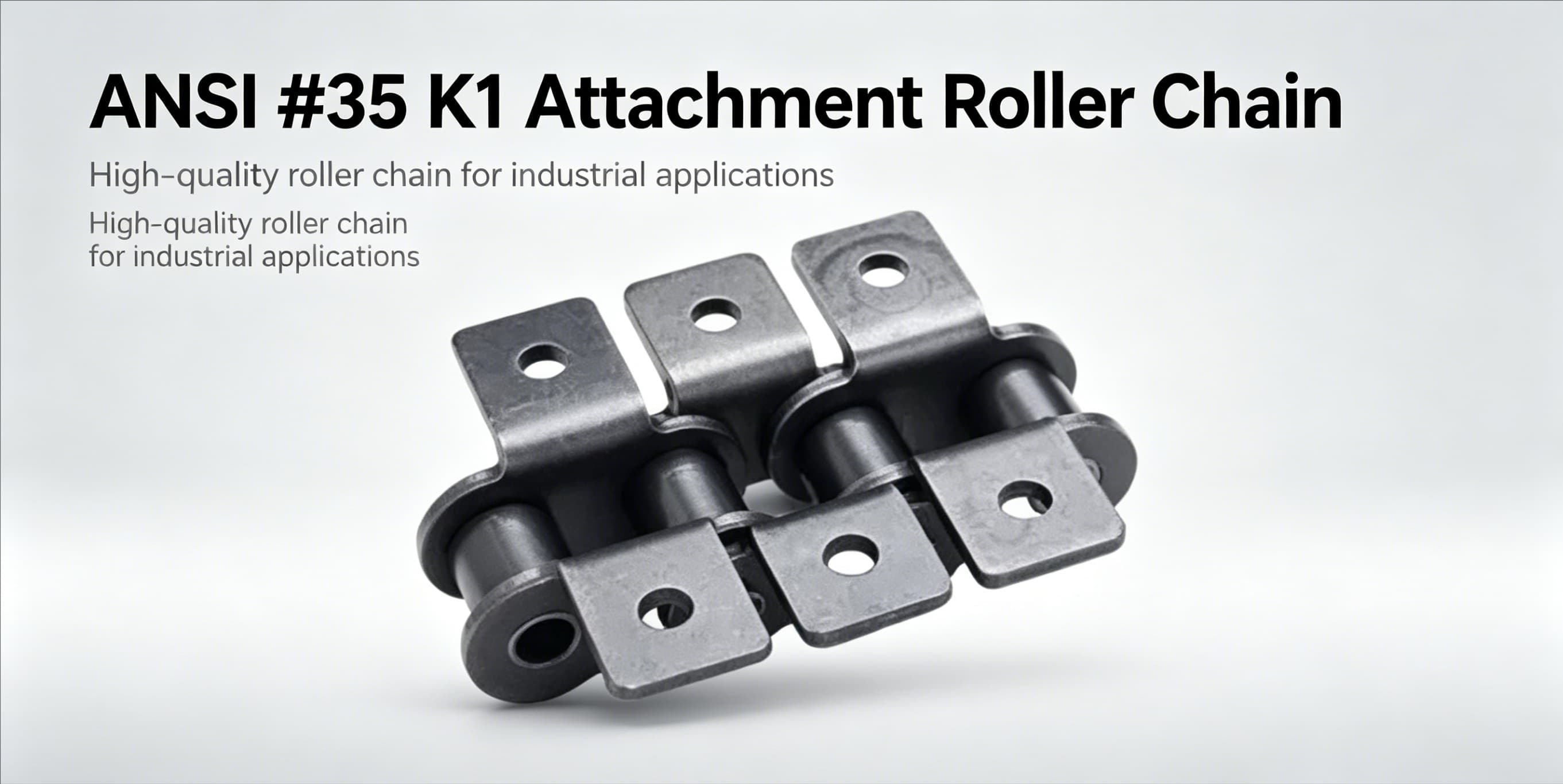

ANSI #35 Roller Chain With K1 Attachment

  • Categories: Roller Chain With K1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 35-K1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction



    About #35 K1 Attachment Roller Chain

    Compliant with ANSI industrial standards, this K1 attachment roller chain adopts premium heat-treated steel material, featuring outstanding wear resistance and structural toughness.


    Equipped with standard bent K1 tabs with mounting holes, it enables easy installation and stable accessory connection. Precise machining ensures smooth running, low friction and reliable power transmission.


    Ideal for conveying machinery, agricultural facilities and general industrial transmission equipment. Durable performance, long service life and stable operation meet diverse industrial application demands.

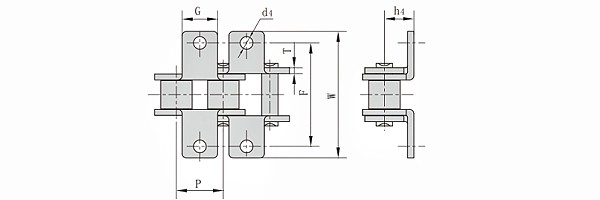

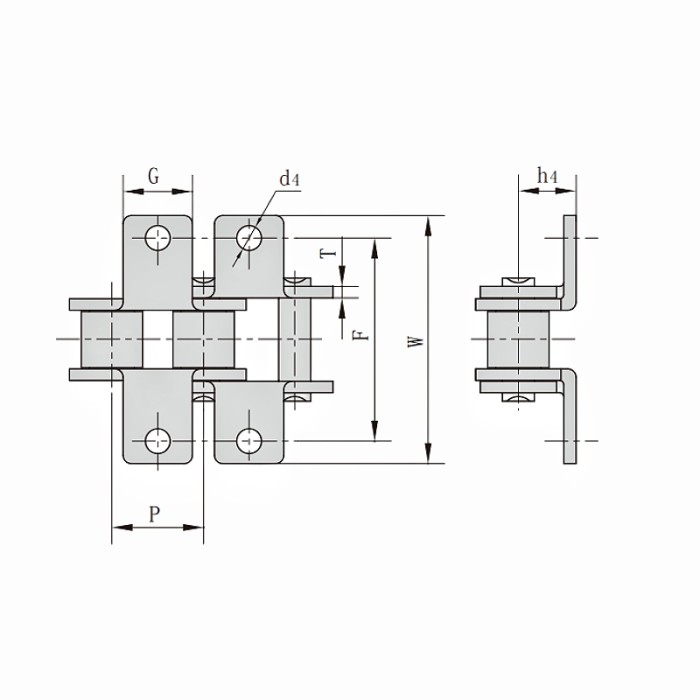

    ANSI #35 K1 Attachment Roller Chain Dimension



  • Pitch (P): 9.525mm
  • Attachment Dimension (G): 7.9mm
  • Attachment Dimensio n (F): 19mm
  • Attachment Dimension (w): 28.6mm
  • Attachment Dimension (h4): 6.35mm
  • Attachment Dimension (d4): 3.4mm
  • Link Plate Thickness (T) : 1.3mm
