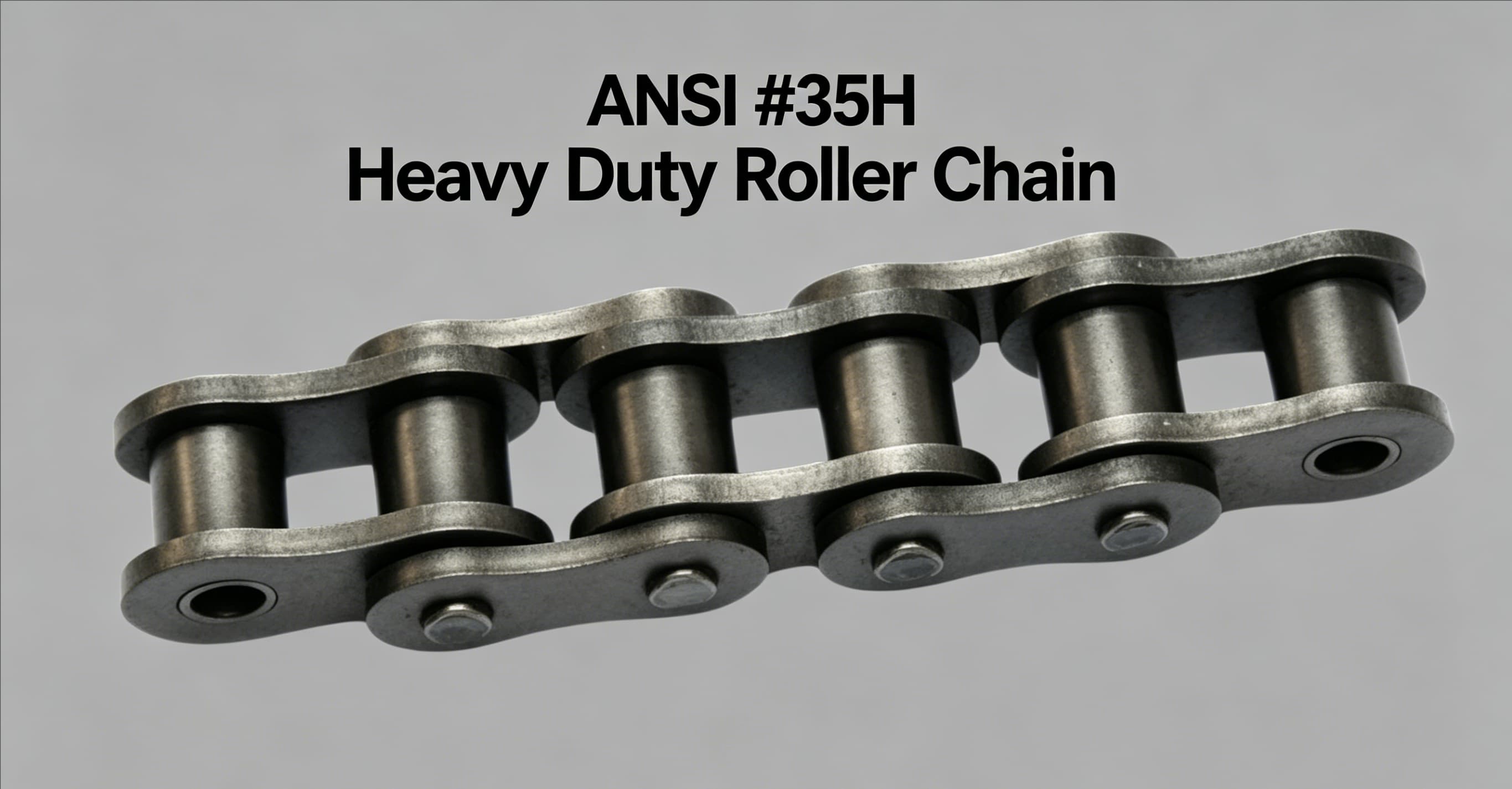

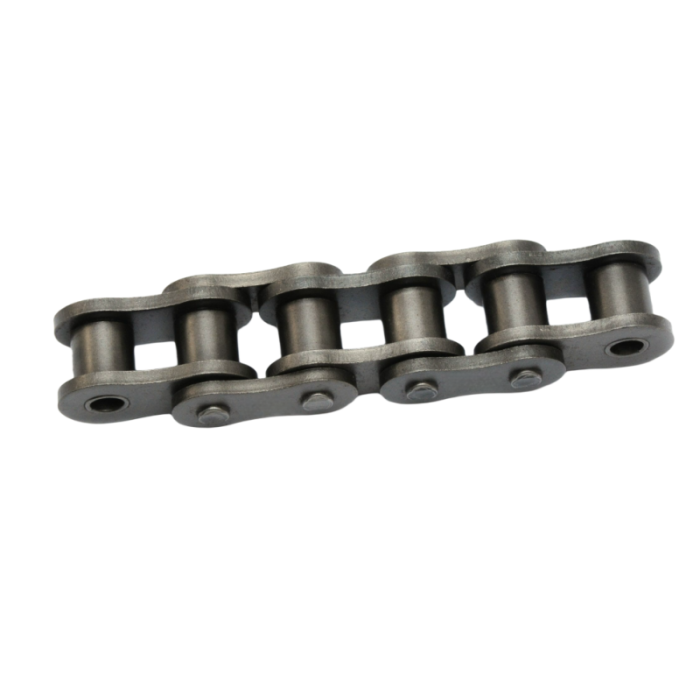

About #35H Heavy Duty Roller Chain
Built to ANSI B29.1 standards, our #35H heavy duty roller chain features a 3/8” pitch with thicker link plates for superior strength and durability. Crafted from high-grade carbon steel with heat-treated pins, solid bushings, and shot-peened surfaces, it delivers high tensile strength (2,315 lbs average) and excellent shock load resistance.
Designed for heavy loads and harsh conditions, it ensures minimal initial stretch, smooth operation, and long service life. Ideal for industrial machinery, agricultural equipment, and heavy conveyors. Interchangeable with standard #35H chains, easy to install and maintain.

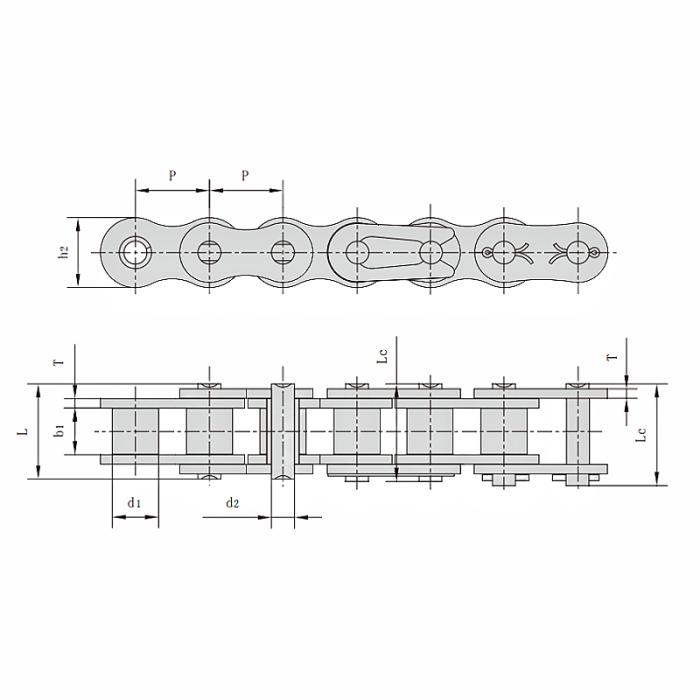

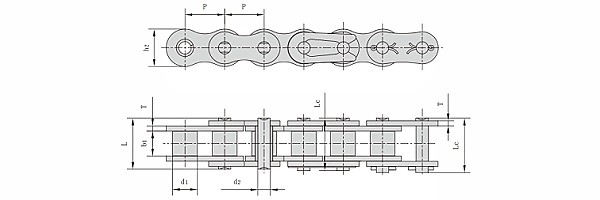

ANSI #35H Heavy Duty Roller Chains Dimension
Pitch (P): 9.525mmRoller diameter (d1): 5.08mmWidth between inner plates (b1): 4.77mmPin diameter (d2): 3.58mmpin length (L): 13.3mmPin length (Lc): 14.3mmInner plate depth (h2): 9mmPlate thickness (T): 1.5mm
