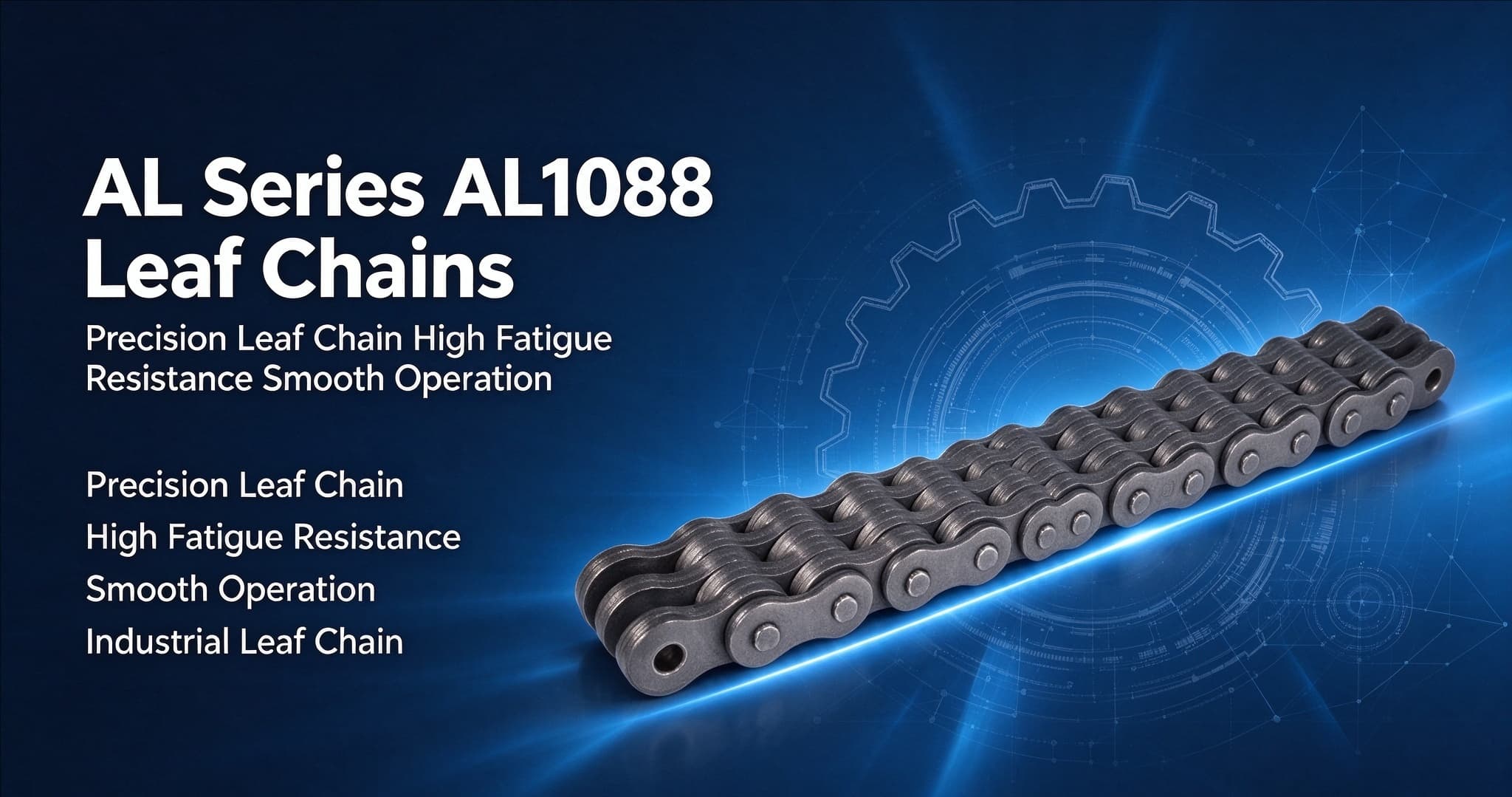

About AL1088 Leaf Chains
AL1088 is an ultra-heavy-duty AL series leaf chain conforming to ANSI B29.8 standard. It adopts an 8×8 lacing structure with a pitch of 31.75 mm (1.25 inch). Constructed from heat-treated high-strength alloy steel, it is equipped with precision blanked link plates and hardened solid pins for exceptional tensile strength and superior fatigue resistance.
It is specially built for the toughest lifting and tensioning jobs. It features low permanent elongation under sustained heavy loads and flexes smoothly on sheaves. It is widely used for heavy forklift masts, large hoists, lifting platforms and counterweight systems. Optional surface treatments and custom clevis fittings are available to meet diverse working demands.
AL1088 Leaf Chains Technical Data
| AL1088 Leaf Chain Dimensions |
Image |
| Pitch(P): 31.750 mm |
|
| Plate lacing: 8×8 |
| Plate depth(h2): 25.6 mm |
| Plate thickness(T): 4.00 mm |
| Pin diameter(d2): 9.53 mm |
| Pin length(L): 68.50 mm |
| Tensile strength: 338.0/75982 kN/lbf |
| Weight per meter: 9.83 kg/m |
