About ANSI #25-2 Roller Chains
#25-2 stands for double-strand ANSI standard roller chain with 6.35mm pitch. Made of high-carbon steel with overall heat treatment, pins, rollers and plates feature high hardness & wear resistance.
Strictly manufactured per ANSI B29.1 specs, it boasts stable tensile strength and smooth transmission performance. Available with connecting links & offset links for easy installation.

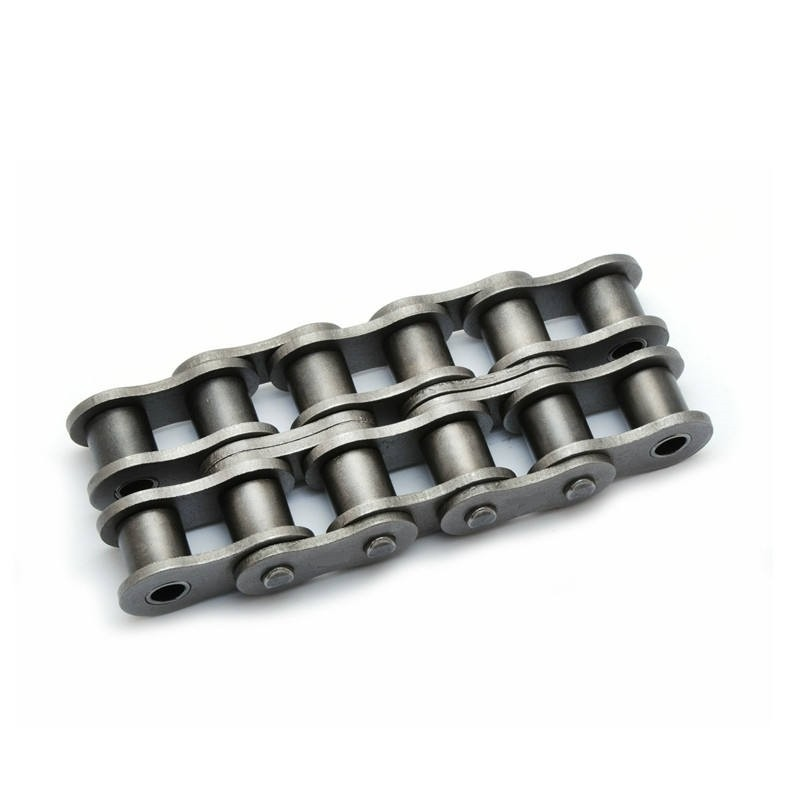

Widely used in small automation equipment, packaging machinery and precision conveyor systems. Custom options: stainless steel, attachment chains for special conveying demands.#25-2 Double Roller Chain

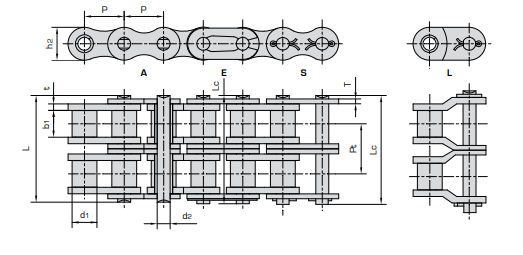

ANSI #25-2 Roller Chains Dimension
Pitch(P): 6.35mmRoller diameter(d1): 3.3mmWidth between inner plates(b1): 3.18mmPin diameter (d2) : 2.31mmpin length (L): 14.5mmPin length(Lc): 15mmInner plate depth (h2): 6mmPlate thickness (T): 0.8MMTransverse Ptich (Pt）: 6.4MM
