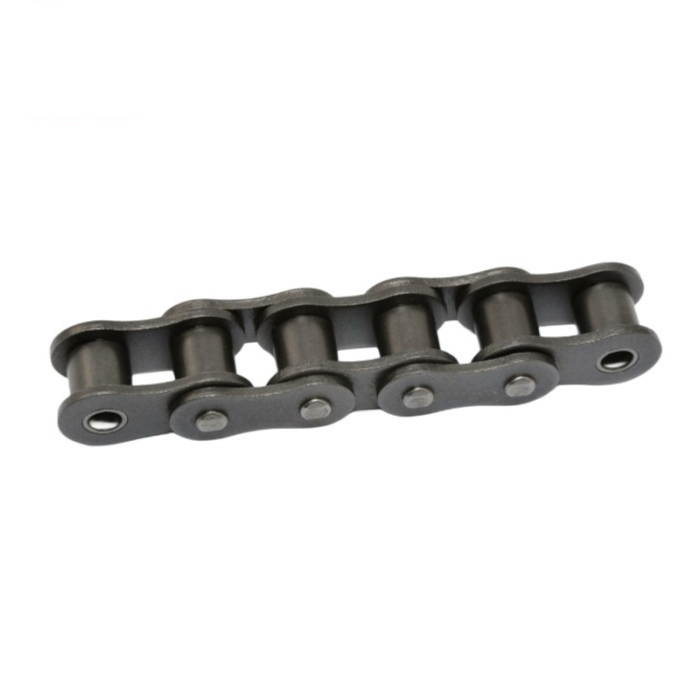

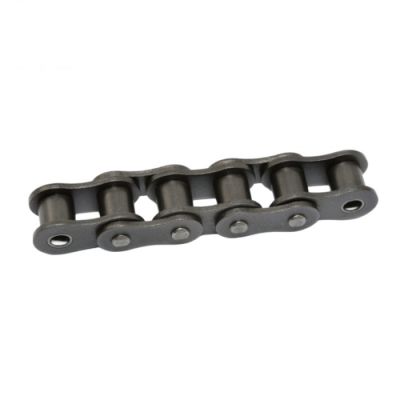

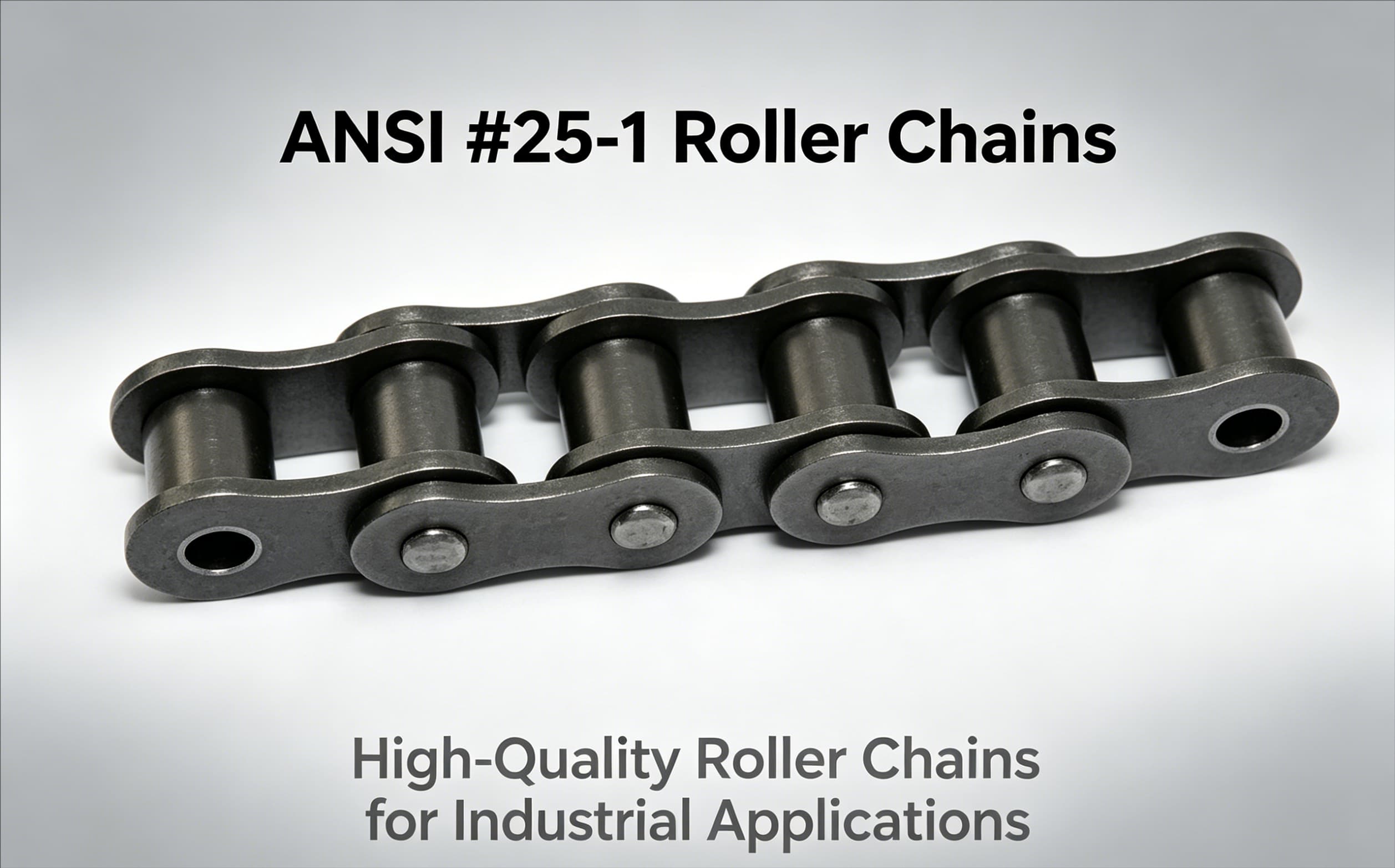

About ANSI #25-1 Roller Chains
The ANSI #25-1 roller chain is a standard single-strand roller chain manufactured in accordance with ANSI/ASME B29.1 industry specifications. Known for its compact size, high tensile strength, and exceptional wear resistance, this chain is widely used in light-duty power transmission and conveying systems across industries.

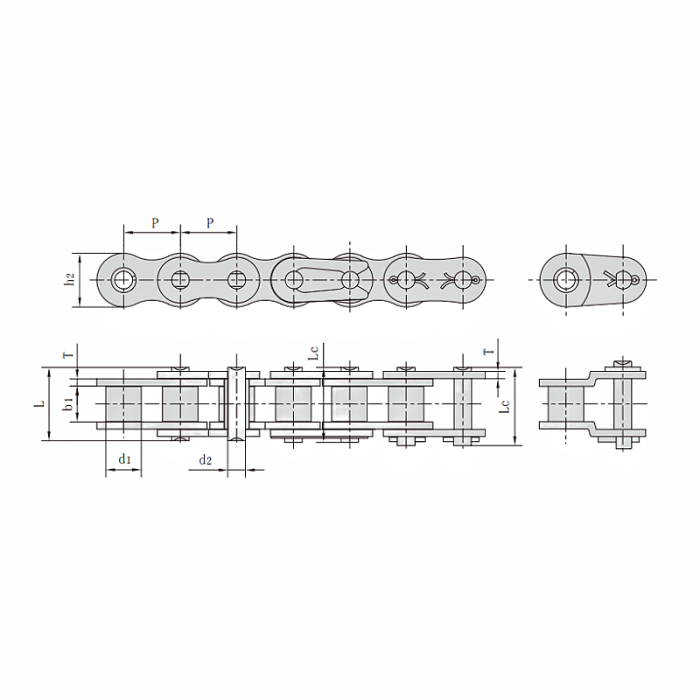

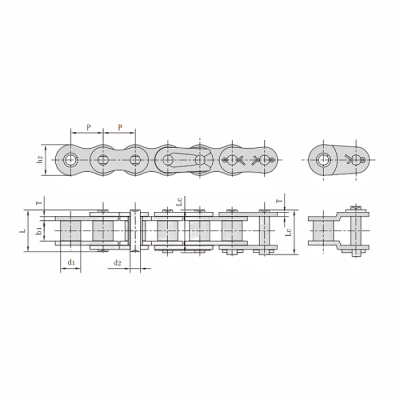

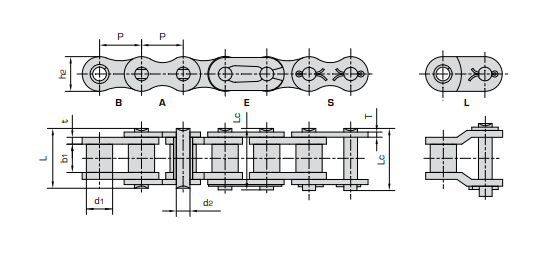

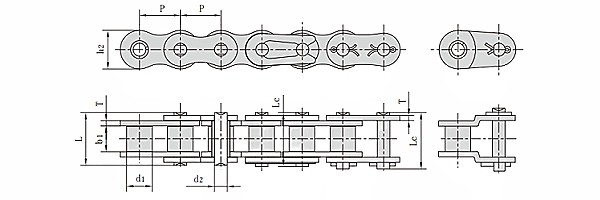

ANSI #25-1 Roller Chains Dimension
Pitch(p): 6.35mm
Roller diameter(d1): 3.3mmWidth between inner plates(b1): 3.18mmPin diameter (d2): 2.31mmPin length (L): 7.9mmPin length (LC): 8.4mmInner plate depth (h2): 6mmPlate thickness (T) : 0.8mm
