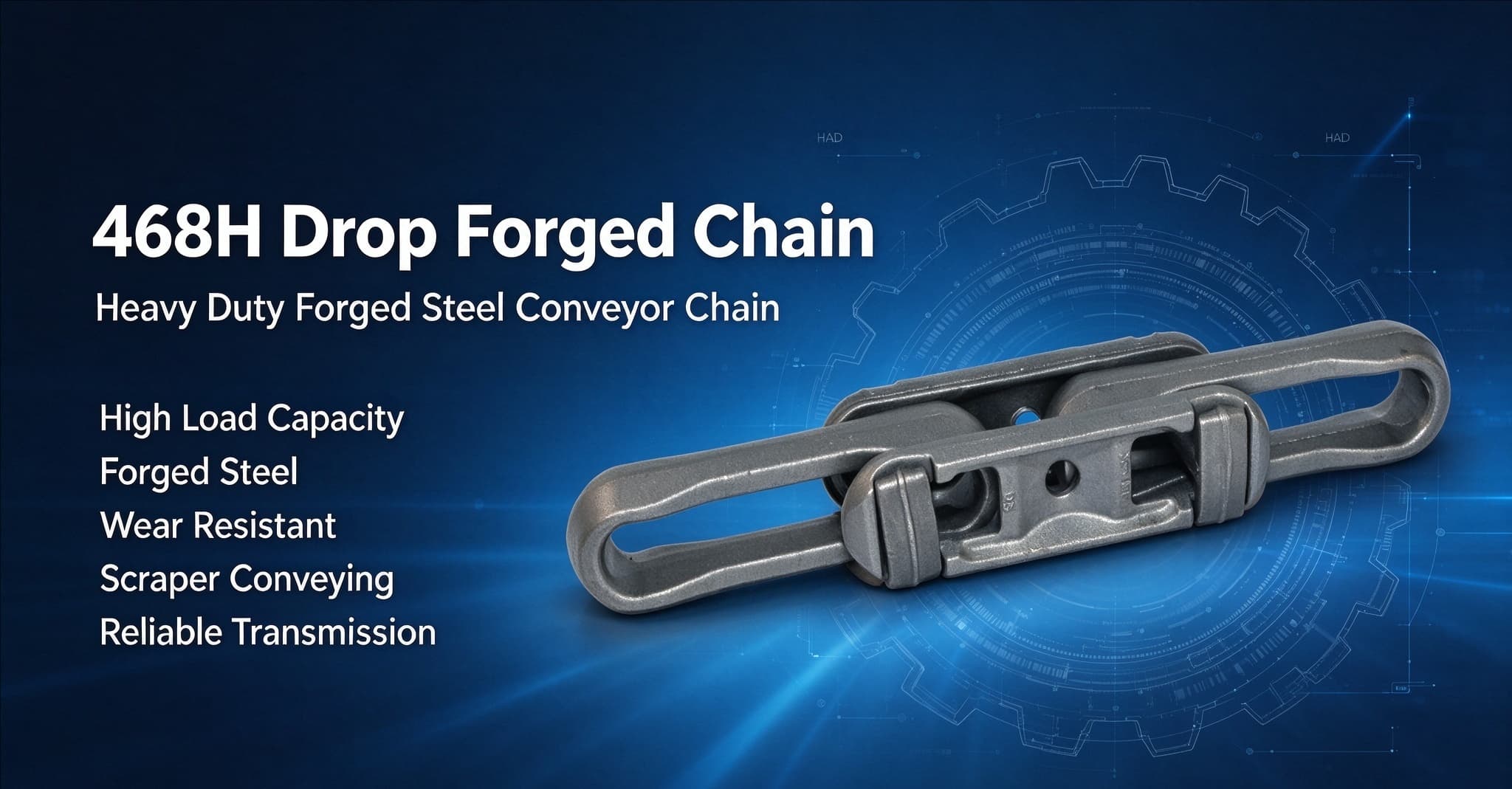

About 468H Drop Forged Chain
468H drop forged chain is a heavy-duty forged conveyor chain widely used for overhead and floor conveyor systems. It is manufactured by drop forging high-strength alloy steel, delivering superior tensile strength, impact resistance and wear resistance compared with cast chains.
Solid one-piece forged construction minimizes deformation under heavy loads and frequent impacts. Precision-machined joint surfaces reduce friction and extend service life. This chain features compact structure, reliable articulation and easy assembly or disassembly for maintenance.
Common applications include automotive painting lines, material handling, foundries and heavy industrial conveying. Our 468H chain undergoes strict heat treatment and quality inspection to guarantee consistent performance. Custom attachments are available to meet diverse conveying requirements.

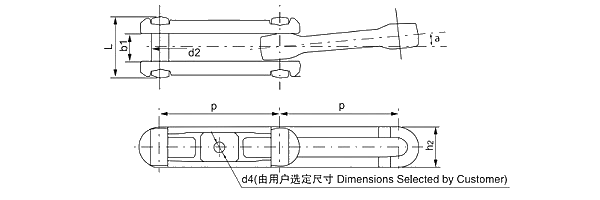

468H Drop Forged Chains Dimension
| 468H Drop Forged Chain Dimensions |
Product Image |
| Referenced Pitch(P): 102.4 mm |
|
| Pin diameter(d2): 19.5 mm |
| Pin length: 84.1 mm |
| Standard measurement length(min/max): 3063.1/3090.2 mm |
| Number of pitch standard measurement length: 30 pitches |
| Side corner(O): 9 mm |
| Width of sidebar(h2): 47.8 mm |
| Tensile strength: 311.7 kN |
| Weight per meter: 11.5 kg/m |
