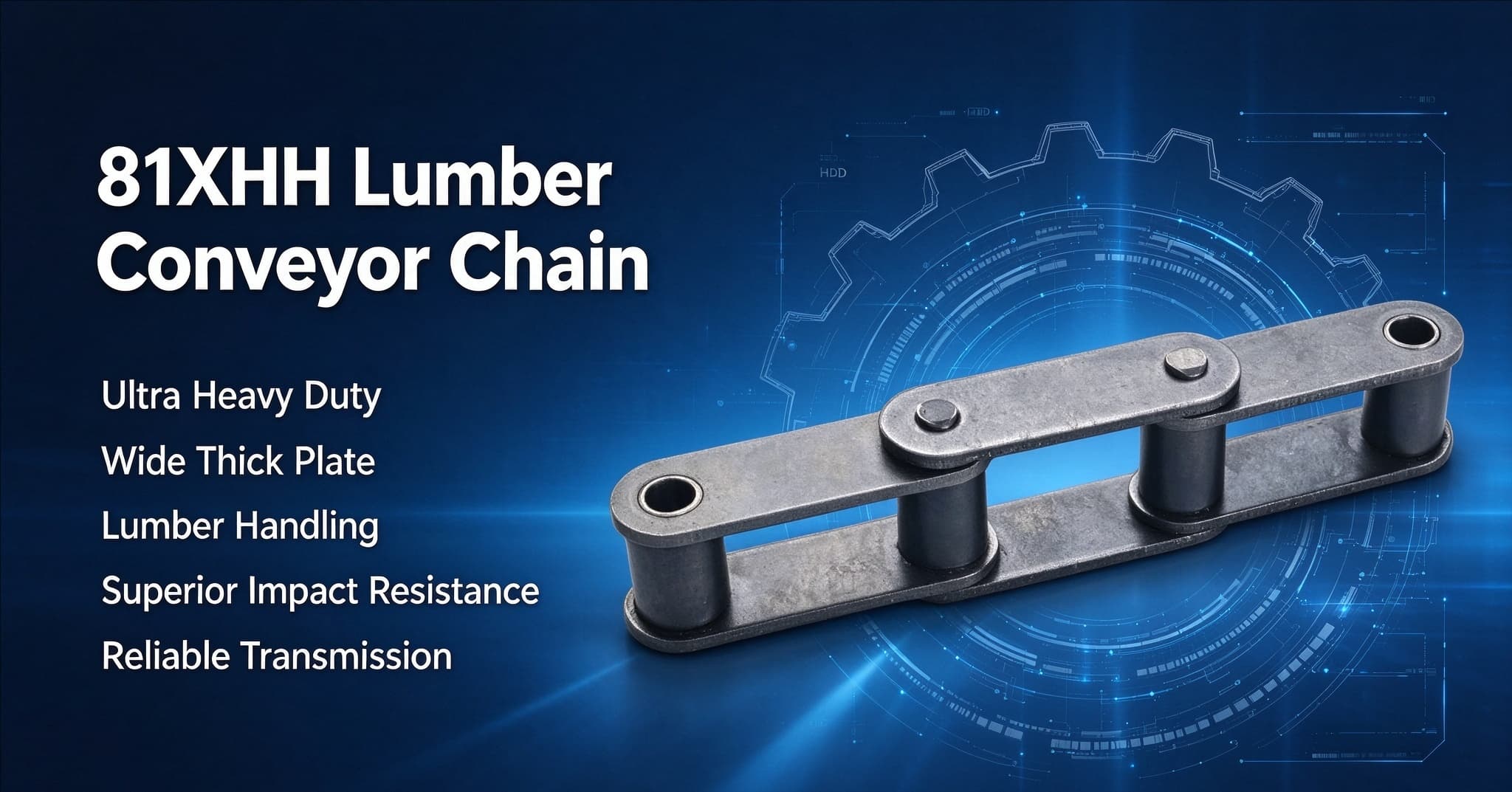

About 81XHH Lumber Conveyor Chain
81XHH lumber conveyor chain is an upgraded heavy-duty version of the 81X series, specially engineered for lumber transport applications. It features reinforced side plates, solid rollers and precision heat-treated components to withstand heavy loads, wood debris, shock and abrasive working conditions in sawmills and timber yards.
The chain maintains standard 81X series pitch for easy installation and replacement. Its robust construction delivers high tensile strength, outstanding wear resistance and long service life under continuous operation. Optimized clearances help prevent jamming caused by wood chips and sawdust.
Widely used in log conveyors, lumber sorting lines and timber processing systems. Available with different surface treatments for corrosion protection. Custom attachments can be supplied to meet diverse lumber handling requirements. Reliable performance minimizes downtime for your timber production line.
81XHH Lumber Conveyor Chains Dimension

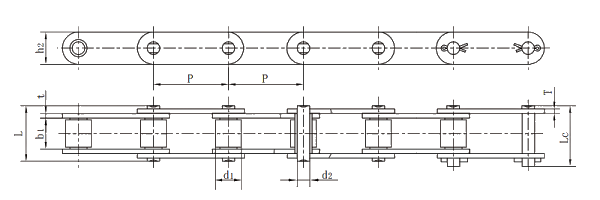

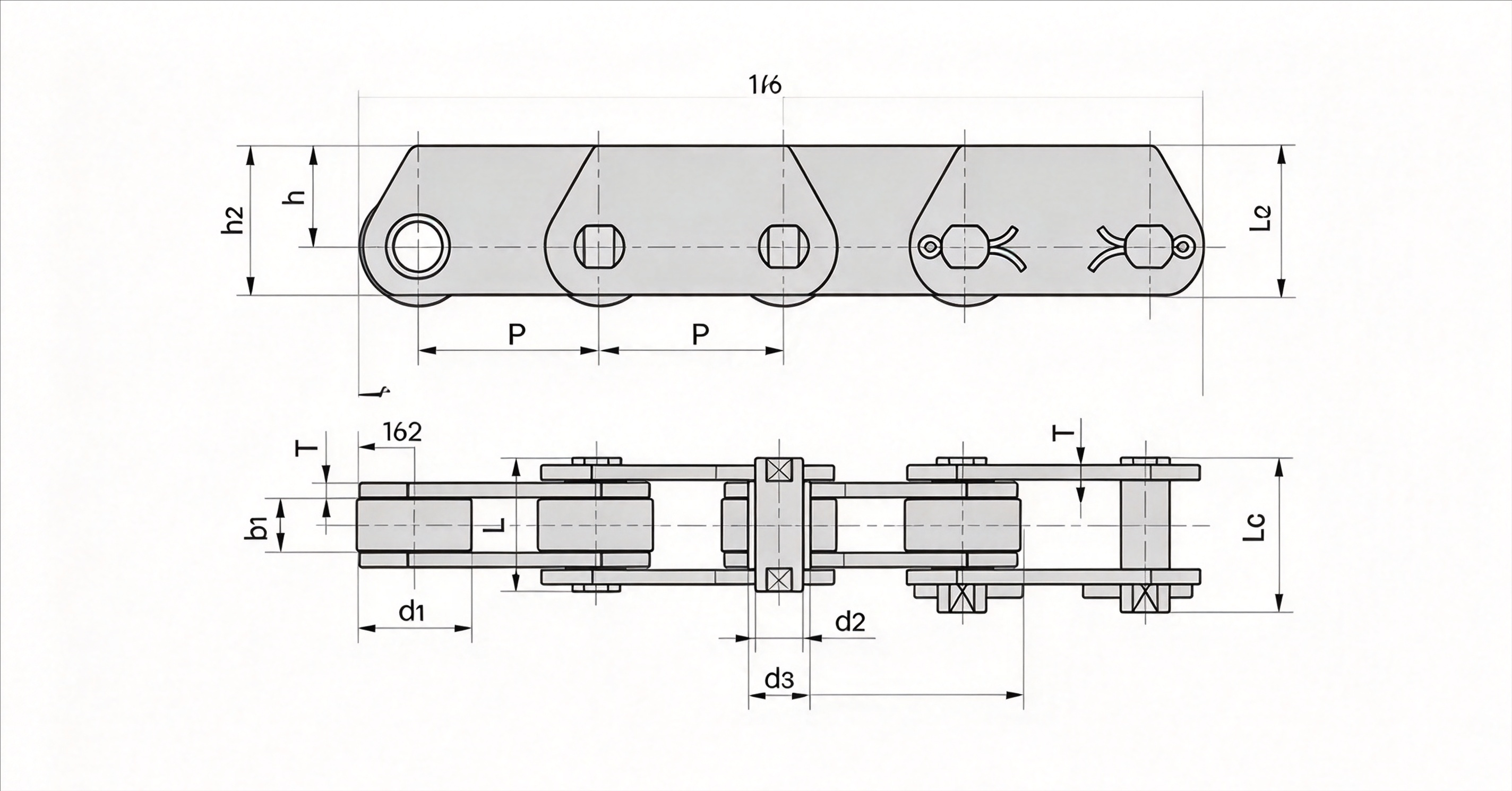

| 81XHH lumber Conveyor Chain Dimensions |
Product Image |
| Pitch(P): 66.27 mm |
|
| Roller diameter(d1): 23.00 mm |
| Width between inner plates(b1): 27.78 mm |
| Pin diameter(d2): 11.10 mm |
| Pin length(L): 65.6 mm |
| Pin length(Lc): 70.0 mm |
| Inner plate depth(h2): 31.35 mm |
| Plate thickness(T): 7.94 mm |
| Tensile strength: 191.1/43432 kN/lbf |
| Weight per meter: 6.70 kg/m |
