About 81XH Lumber Conveyor Chain
81XH lumber conveyor chain is a heavy-duty enhanced version of 81X chain, specially engineered for lumber and timber conveying. Built with thicker heat-treated side plates, reinforced pins and large solid rollers, it offers superior tensile strength and outstanding wear resistance under harsh working conditions.
This chain maintains stable operation when transporting logs, planks and wood scraps. Its robust structure resists impact, abrasion and heavy loads common in sawmills. Multiple attachment options are available to match different lumber conveyor systems.
Surface treatment can be provided to boost corrosion resistance. Widely applied in sawmills, wood processing plants and timber yards. Easy to install and maintain. Custom sizes and attachments are available on demand.
81XH Lumber Conveyor Chains Dimension

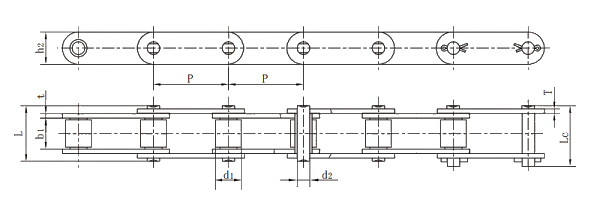

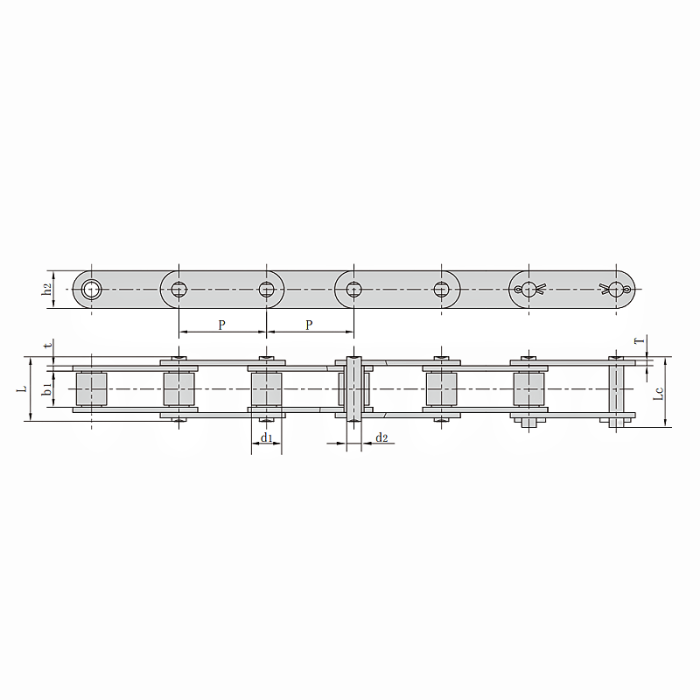

| 81XH lumber Conveyor Chain Dimensions |

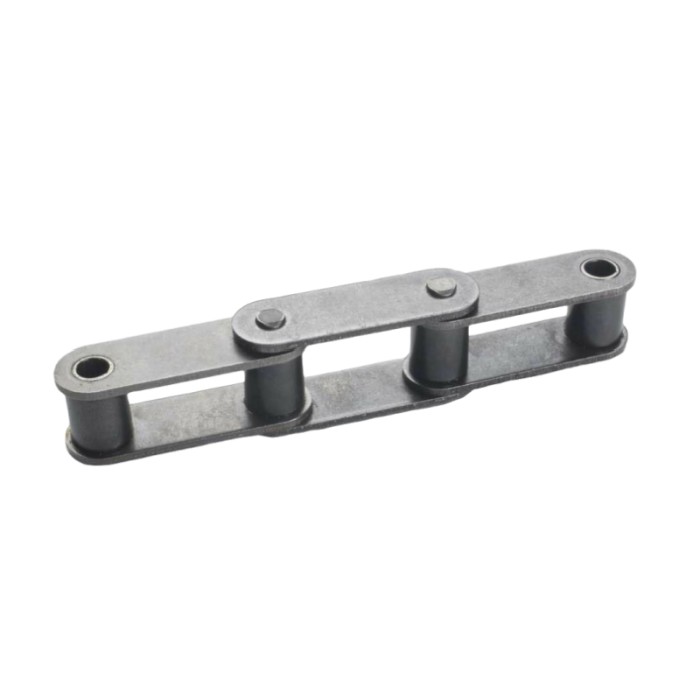

Product Image |
| Pitch(P): 66.27 mm |
|
| Roller diameter(d1): 23.00 mm |
| Width between inner plates(b1): 27.78 mm |
| Pin diameter(d2): 11.10 mm |
| Pin length(L): 60.7 mm |
| Pin length(Lc): 65.1 mm |
| Inner plate depth(h2): 31.35 mm |
| Plate thickness(t/T): 7.94/5.55 mm |
| Tensile strength: 151.9 kN / 34523 lbf |
| Weight per meter: 5.88 kg/m |
