About 81X Lumber Conveyor Chain
81X conveyor chain is a widely used heavy-duty slat conveyor chain conforming to industry standards. It features robust construction with thick side plates, solid rollers and precision pins, delivering excellent tensile strength and wear resistance.
Designed for material conveying applications, it runs smoothly on sprockets with low noise and stable operation. Its simple structure allows easy assembly, disassembly and maintenance. The chain can be equipped with various attachments to fit different conveying needs.
Available in carbon steel or surface-treated versions for enhanced anti-corrosion performance. Ideal for agriculture, wood processing, packaging and general conveying systems, transporting bulk goods, boards and packages reliably under continuous working conditions. Custom specifications are acceptable upon request.

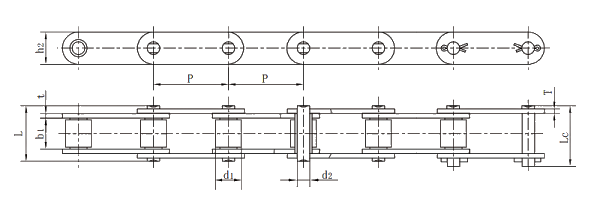

81X Lumber Conveyor Chains Dimension
| 81X Lumber Conveyor Chain Size |
Product Image |
| Pitch(P): 66.27 mm |
|
| Roller diameter(d1): 23.00 mm |
| Width between inner plates(b1): 27.00 mm |
| Pin diameter(d2): 11.10 mm |
| Pin length(L): 49.0 mm |
| Pin length(Lc): 53.5 mm |
| Inner plate depth(h2): 28.5 mm |
| Plate thickness(T): 4.00 mm |
| Tensile strength: 106.7 kN / 24250 lbf |
| Weight per meter: 3.78 kg/m |
