Product Introduction

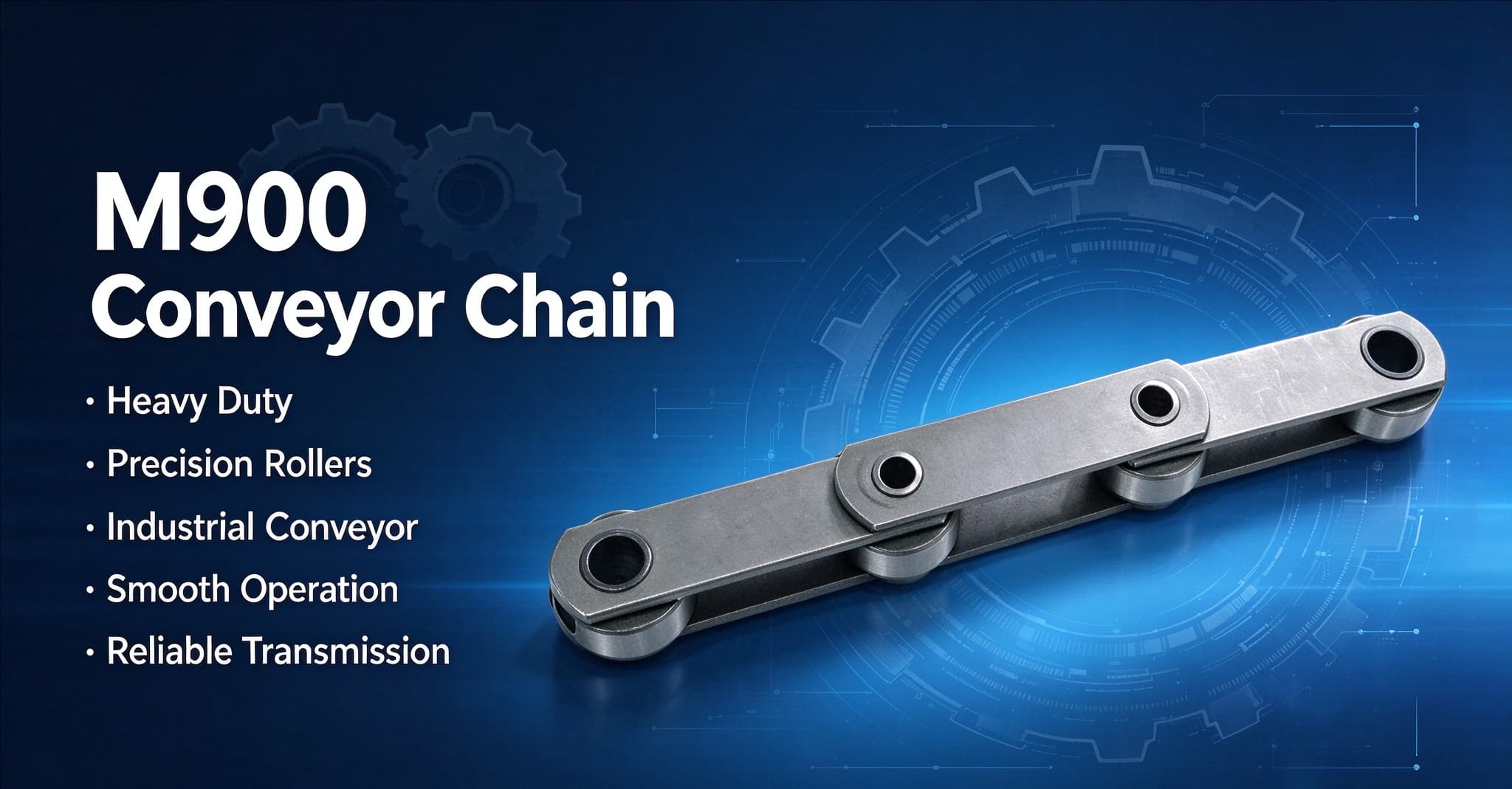

About #M900 Conveyor Chain
M900 conveyor chain is a heavy-duty industrial chain engineered for reliable material transportation under demanding working conditions. It adopts precision manufacturing and thickened plate structure to deliver excellent tensile strength and wear resistance, stable for continuous long-hour operation.
Various attachments are available to match different conveying needs, facilitating smooth transport of bulk materials, boxes and workpieces. Multiple material options are offered, including carbon steel and stainless steel, with surface treatments like heat treatment or galvanization to boost corrosion resistance and extend service life.
Widely applied in mining, cement, agriculture, waste treatment and other heavy conveying systems. Customized specifications can be provided upon request to fit diverse equipment layouts.
M900 Conveyor Chains Dimension

| Chain Number | Pitch P | Rollers Style | Rollers Flange thickness G |
Bushings Diameter D5 |
Pins Diameter D6 |
Over All Pin Cotter | Between sidebars L | Sidebars Thickness S |
Sidebars Height H |
Breaking Load DIN standard | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chain | mm | D1 | D2 | D4 | mm | mm | mm | F1 | F2 | mm | mm | mm | kN |
| M900 | 250 | 85 | 170 | 210 | 18 | 60 | 44 | 158 | 89 | 78 | 16 | 120 | 900 |
| M900 | 315 | 85 | 170 | 210 | 18 | 60 | 44 | 158 | 89 | 78 | 16 | 120 | 900 |
| M900 | 400 | 85 | 170 | 210 | 18 | 60 | 44 | 158 | 89 | 78 | 16 | 120 | 900 |
| M900 | 500 | 85 | 170 | 210 | 18 | 60 | 44 | 158 | 89 | 78 | 16 | 120 | 900 |
