M450 Conveyor Chain

  • Categories: M Series Conveyor Chain
  • Brand: HXST-Drive
  • Model: M450 Conveyor Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Conveyor Chain
  • Quality: Durable Conveyor Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

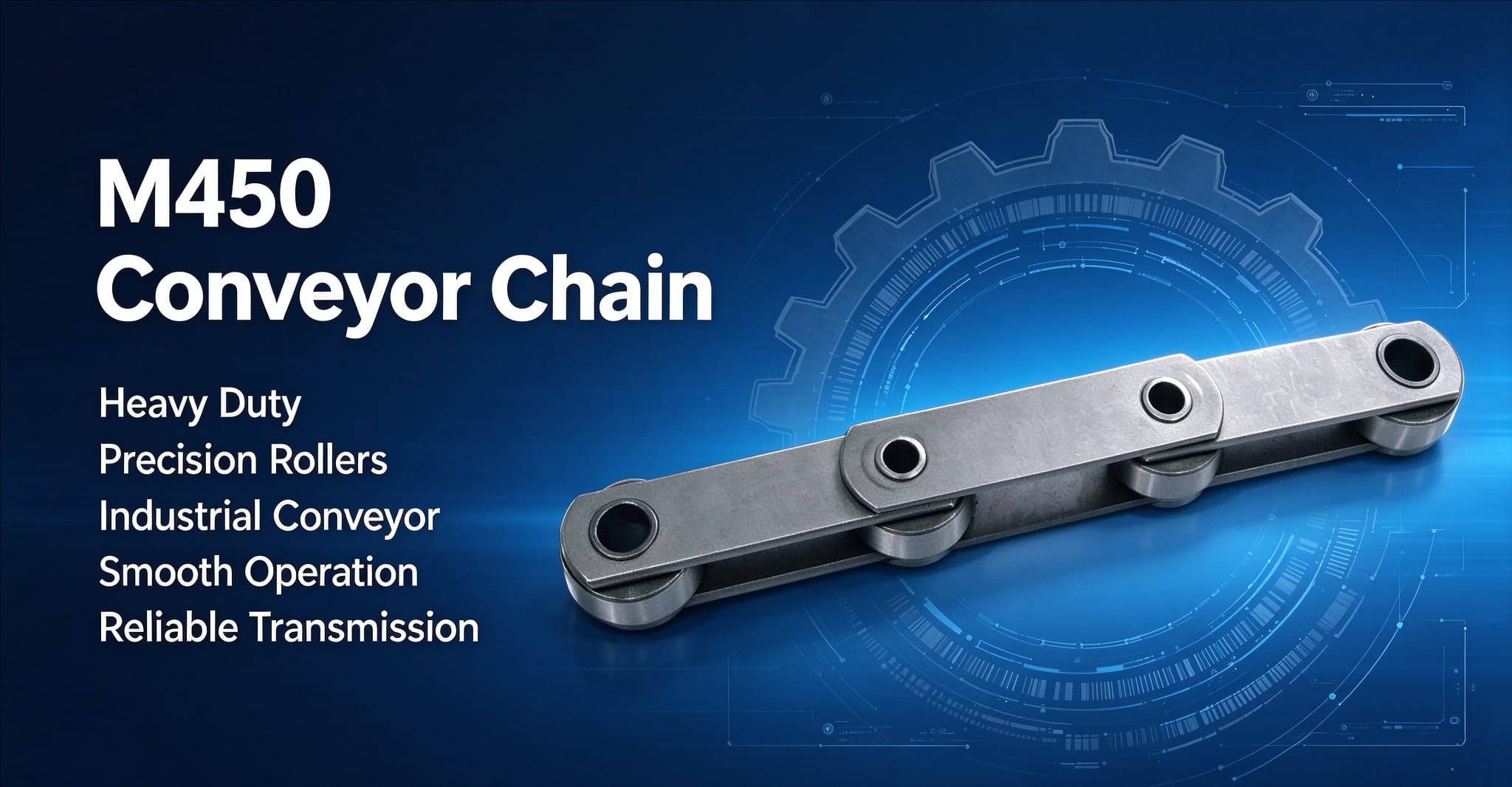

    裁剪旋转 (5)_compressed.jpeg

    About #M450 Conveyor Chain

    M450 conveyor chain is a heavy-duty industrial chain engineered for reliable material transportation under demanding working conditions. It adopts precision manufacturing and thickened plate structure to deliver excellent tensile strength and wear resistance, stable for continuous long-hour operation.

    Various attachments are available to match different conveying needs, facilitating smooth transport of bulk materials, boxes and workpieces. Multiple material options are offered, including carbon steel and stainless steel, with surface treatments like heat treatment or galvanization to boost corrosion resistance and extend service life.

    Widely applied in mining, cement, agriculture, waste treatment and other heavy conveying systems. Customized specifications can be provided upon request to fit diverse equipment layouts.

    M450 Conveyor Chains  Dimension

    裁剪旋转 (5).jpeg

    Chain Number Pitch P Rollers Style Rollers
    Flange thickness G
    Bushings
    Diameter D5
    Pins
    Diameter D6
    Over All Pin Cotter Between sidebars L Sidebars
    Thickness S
    Sidebars
    Height H
    Breaking Load DIN standard
    Chain mm D1 D2 D4 mm mm mm F1 F2 mm mm mm kN
    M450 200 60 120 140 14 42 30 118 66 56 12 80 450
    M450 250 60 120 140 14 42 30 118 66 56 12 80 450
    M450 315 60 120 140 14 42 30 118 66 56 12 80 450
    M450 400 60 120 140 14 42 30 118 66 56 12 80 450
