M315 Conveyor Chain

  • Categories: M Series Conveyor Chain
  • Brand: HXST-Drive
  • Model: M315 Conveyor Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Conveyor Chain
  • Quality: Durable Conveyor Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (4)_compressed.jpeg

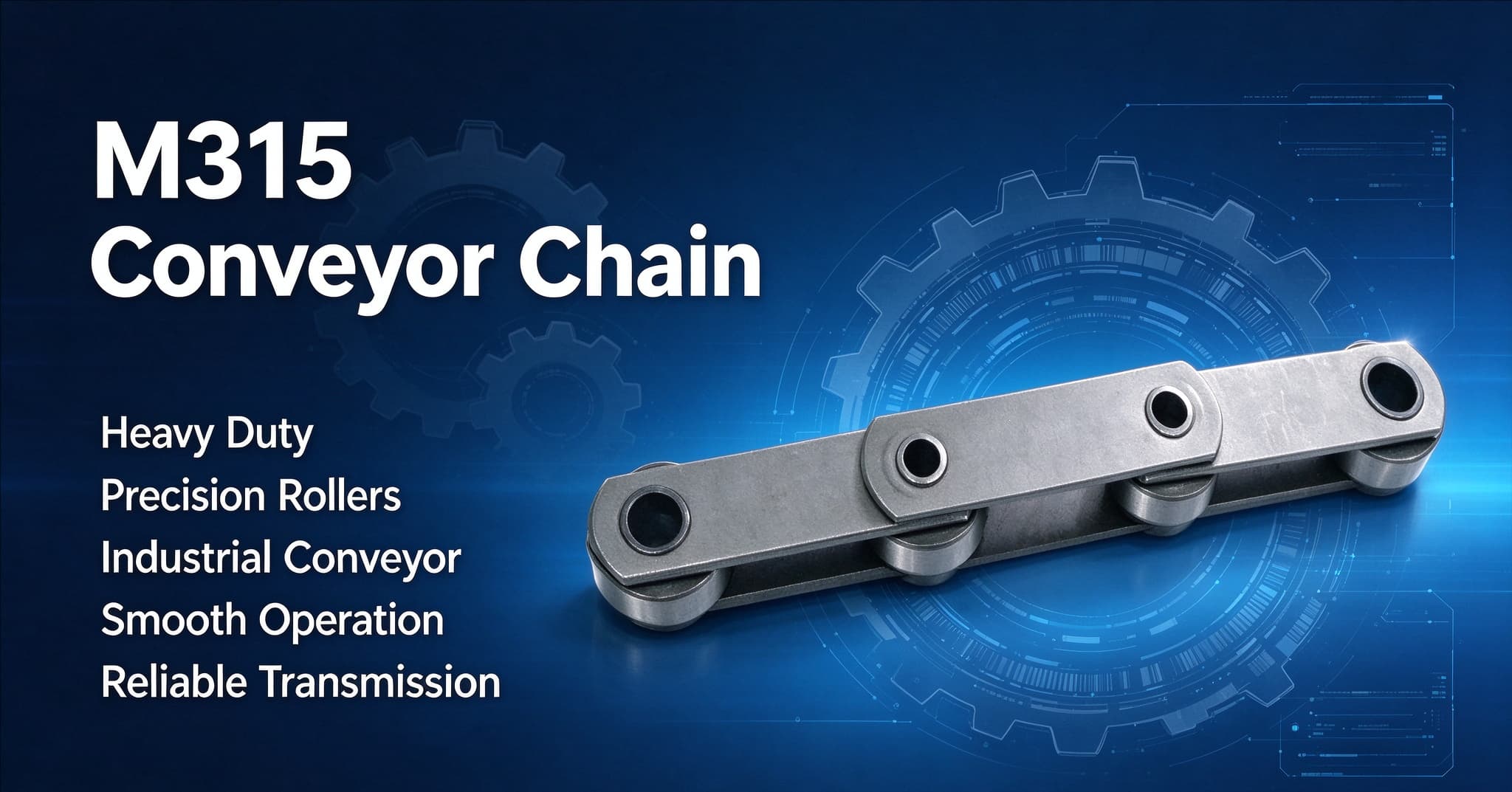

    About #M315 Conveyor Chain

    M315 conveyor chain is a heavy-duty industrial chain engineered for reliable material transportation under demanding working conditions. It adopts precision manufacturing and thickened plate structure to deliver excellent tensile strength and wear resistance, stable for continuous long-hour operation.

    Various attachments are available to match different conveying needs, facilitating smooth transport of bulk materials, boxes and workpieces. Multiple material options are offered, including carbon steel and stainless steel, with surface treatments like heat treatment or galvanization to boost corrosion resistance and extend service life.

    Widely applied in mining, cement, agriculture, waste treatment and other heavy conveying systems. Customized specifications can be provided upon request to fit diverse equipment layouts.

    M315 Conveyor Chains  Dimension

    裁剪旋转 (5).jpeg

    Chain Number Pitch P Rollers Style Rollers
    Flange thickness G
    Bushings
    Diameter D5
    Pins
    Diameter D6
    Over All Pin Cotter Between sidebars L Sidebars
    Thickness S
    Sidebars
    Height H
    Breaking Load DIN standard
    Chain mm D1 D2 D4 mm mm mm F1 F2 mm mm mm kN
    M315 160 50 100 120 12 36 25 102 55 48 10 70 315
    M315 200 50 100 120 12 36 25 102 55 48 10 70 315
    M315 250 50 100 120 12 36 25 102 55 48 10 70 315
    M315 315 50 100 120 12 36 25 102 55 48 10 70 315
    M315 400 50 100 120 12 36 25 102 55 48 10 70 315
