About #FV40 Conveyor Chain
FV40 is a DIN standard heavy-duty bush conveyor chain of the FV series. It is made of high-quality alloy steel, equipped with heat-treated pins, case-hardened seamless bushes and tempered high-strength link plates for reliable durability.
The chain can be fitted with small rollers, large rollers or flanged rollers. Custom attachments are available to suit various conveying structure requirements. Designed for low-speed, long-distance bulk material transport, it delivers stable operation and excellent wear resistance under heavy loads.
Widely used in wood processing, metallurgy, waste recycling, agriculture and other industrial conveying machinery. Carbon steel is the standard material, and stainless steel version is optional for corrosive working conditions. Matching sprockets can be supplied upon request.

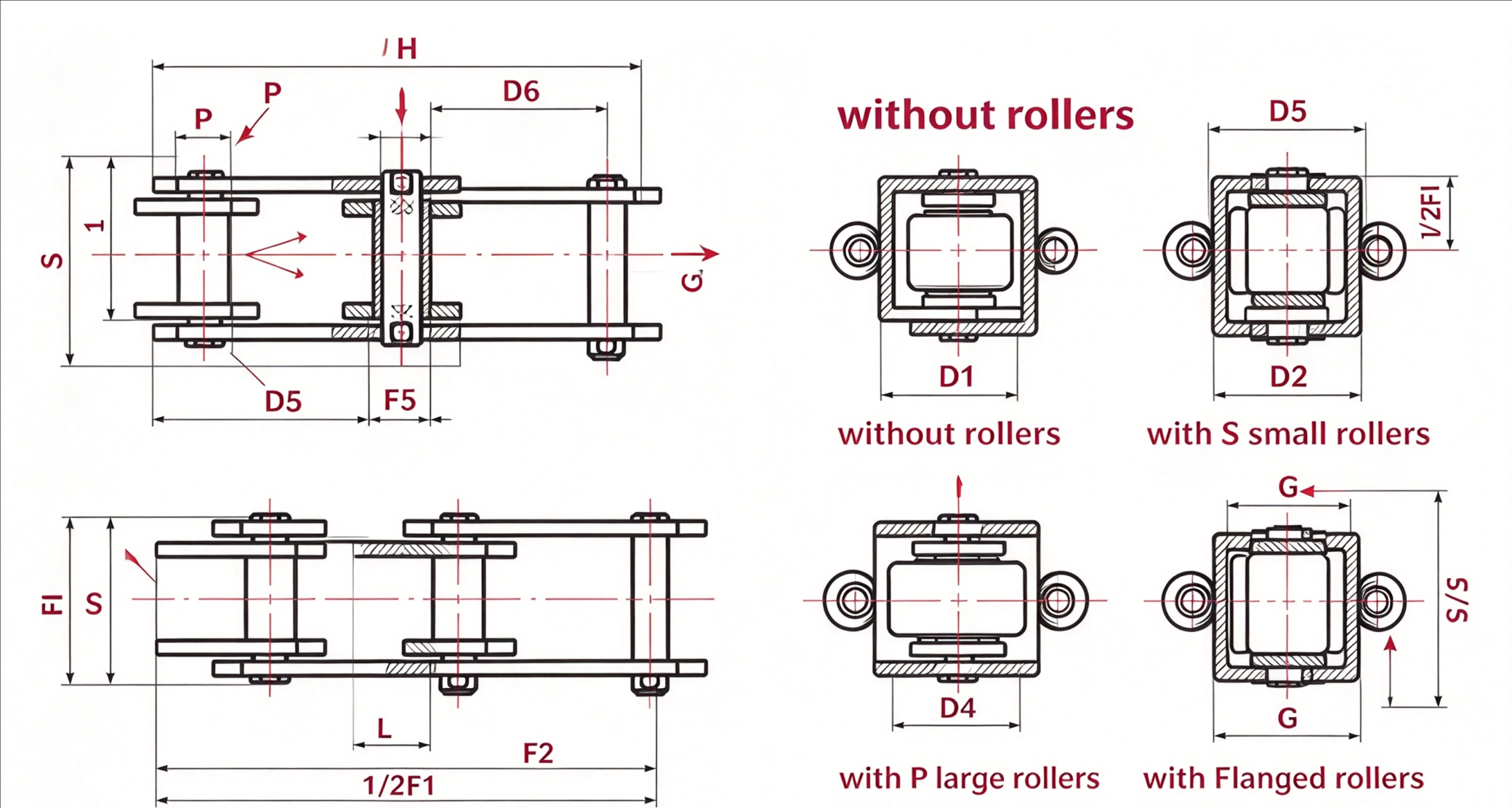

FV40 Conveyor Chains Dimension
| Chain Number |
Pitch
P |
Rollers Style |
Rollers
Flange thickness
G |
Bushings
Diameter
D5 |
Pins
Diameter
D6 |
Over-All Pin & Cotter |
Between Sidebars
L |
Sidebars
Thickness
S |
Sidebars
Height
H |
Breaking Load
DIN standard |
| Chain |
mm |
D1 |
D2 |
D3 |
D4 |
mm |
mm |
mm |
F1 |
F2 |
mm |
mm |
mm |
kN |
| FV40 |
50 |
20 |
32 |
40 |
50 |
4 |
15 |
10 |
36 |
21 |
18 |
3 |
25 |
40 |
| 63 |
20 |
32 |
40 |
50 |
4 |
15 |
10 |
36 |
21 |
18 |
3 |
25 |
40 |
| 80 |
20 |
32 |
40 |
50 |
4 |
15 |
10 |
36 |
21 |
18 |
3 |
25 |
40 |
| 100 |
20 |
32 |
40 |
50 |
4 |
15 |
10 |
36 |
21 |
18 |
3 |
25 |
40 |
| 125 |
20 |
32 |
40 |
50 |
4 |
15 |
10 |
36 |
21 |
18 |
3 |
25 |
40 |
