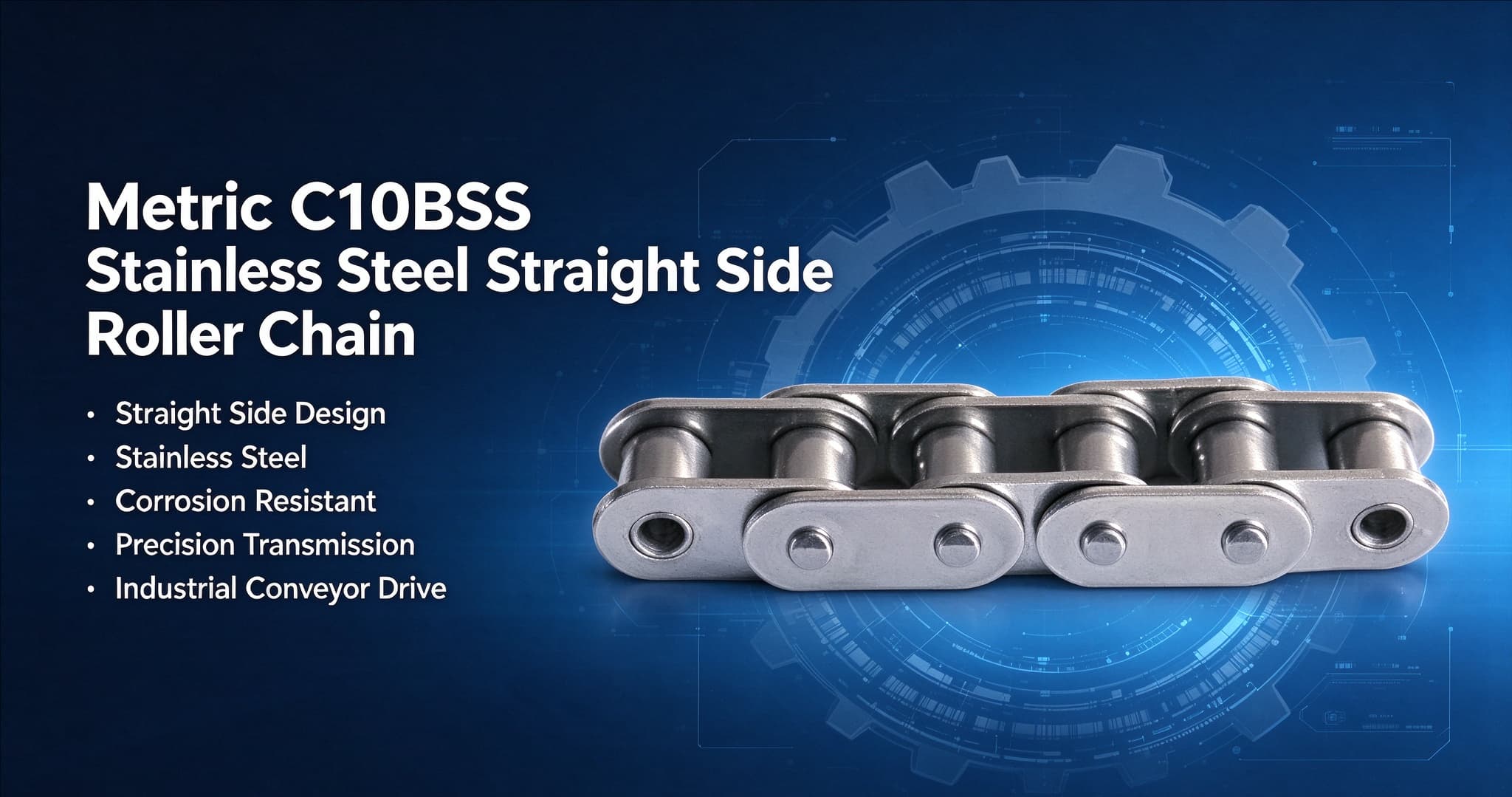

About #C10BSS Staight Side Roller Chain
Metric C10BSS Stainless Steel Straight Side Roller Chain complies with ISO metric standards. Fabricated from high-grade stainless steel, it features excellent rust and corrosion resistance, suitable for wet, acidic and sanitary working environments.
The straight side plate design enables precise sprocket meshing and stable operation. Each component is precision machined to ensure uniform pitch and low friction for long-term continuous running. Compared with alloy steel chains, it maintains reliable performance in corrosive scenarios.
Custom attachments and surface treatments are available on request. It is commonly used in food machinery, pharmaceutical equipment, beverage production lines and chemical conveying systems.

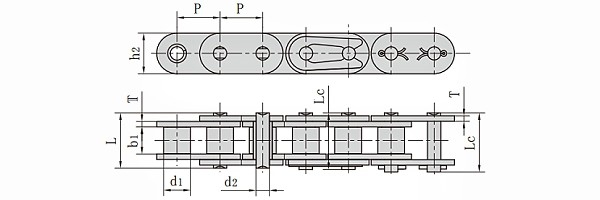

Metric #C10BSS Staight Side Roller Chains Dimension
Pitch (p): 15.875mm
Roller Diameter (d1): 10.16mmWidth between inner plates (b1): 9.65mmPin diameter (d2): 5.08mmPin length (L): 19.5mmPin length (Lc): 20.9mmInner plate depth (h2): 14.7mmPlate thickness (T): 1.7mm
