About #C80-2 Staight Side Roller Chain
ANSI C80-2 straight side roller chain is a double-strand conveyor chain following ANSI specifications. Equipped with straight side plates, it supports easy mounting of different attachments for material transportation.
Made of heat-treated alloy steel, its pins, bushings and rollers feature high tensile strength and outstanding wear resistance. The double-row design offers higher load capacity for heavy-duty conveying.
It is widely used in grain machinery, mining conveyors and bulk material handling systems. Strict quality checks ensure precise dimensions and stable running performance. Custom attachments and surface treatments are available upon request.

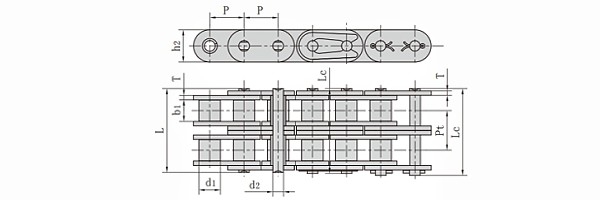

ANSI #C80-2 Staight Side Roller Chains Dimension
Pitch (p): 25.4mm
Roller Diameter (d1): 15.88mmWidth between inner plates (b1): 15.75mmPin diameter (d2): 7.92mmPin length (L): 62.7mmPin length (Lc): 65.8mmInner plate depth (h2): 24mmPlate thickness (T): 3.25mmTransverse pitch (Pt): 29.29mm
