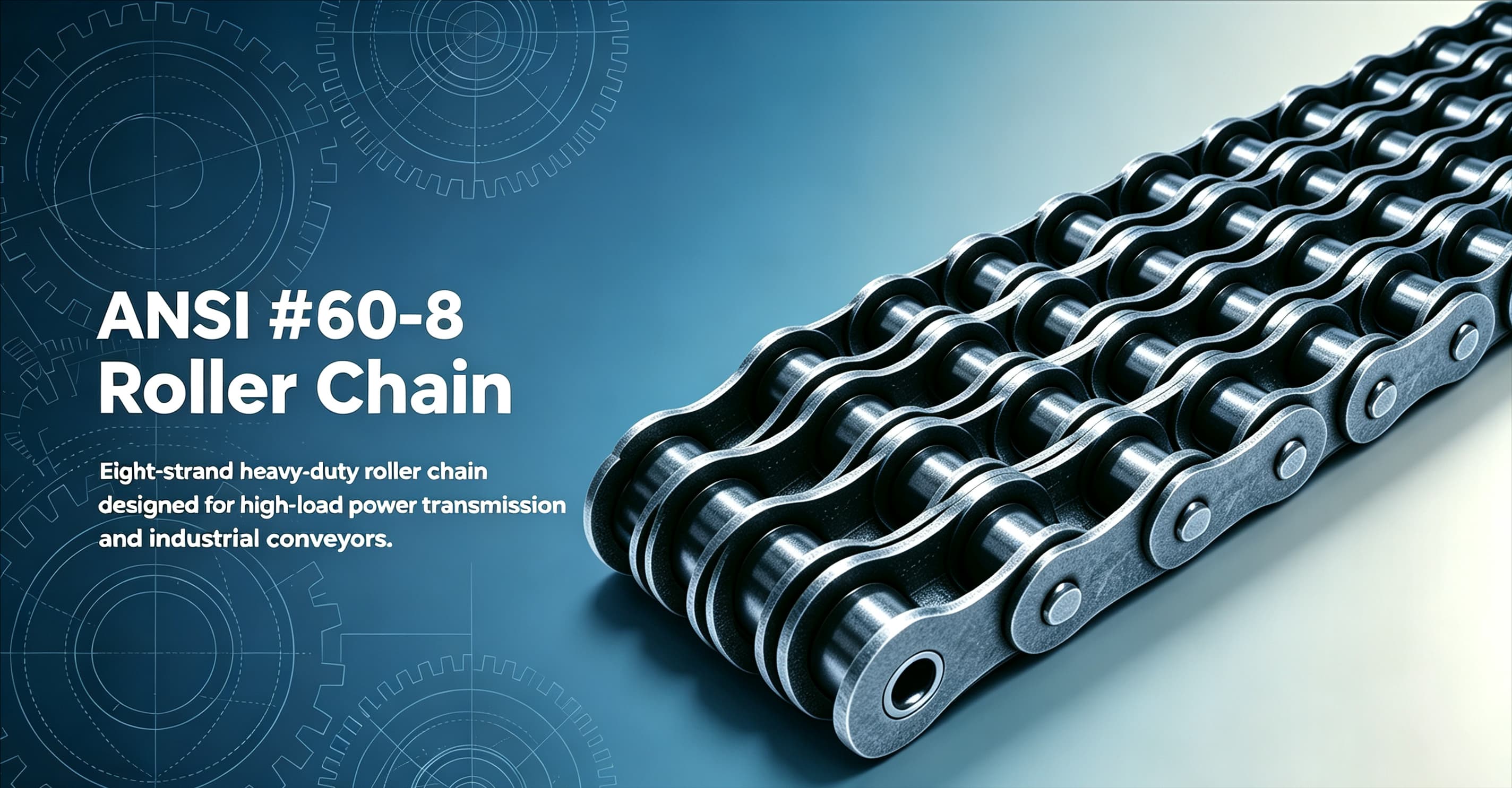

About #60-8 Multiple Roller Chain

ANSI #60-8 roller chain conforms to ANSI standard. It is an 8-strand multi-row roller chain fabricated from high-grade carbon and alloy steel. Critical components including pins, bushings and rollers are heat-treated to boost tensile strength, wear resistance and fatigue resistance.

Precision manufacturing ensures smooth power transfer, low noise and stable operation under medium to heavy loads. Suitable for long-duration continuous running. Widely applied in conveyors, agricultural machinery, packaging and material handling systems. Custom attachments, special surface treatments and tailored lengths are available. All chains undergo strict quality inspection prior to delivery for reliable service.

ANSI #60-8 Multiple Roller Chains  Dimension

Pitch (P): 19.05mm

Roller diameter (d1): 11.91mm

Width between inner plates (b1): 12.57mm

Pin diameter (d2): 5.94mm

Pin length (L): 185.8mm

Pin length (Lc): 187.6mm

Inner plate depth (h2): 18mm

Plate thickness (T): 2.42mm

Transverse pitch (Pt）: 22.78mm
