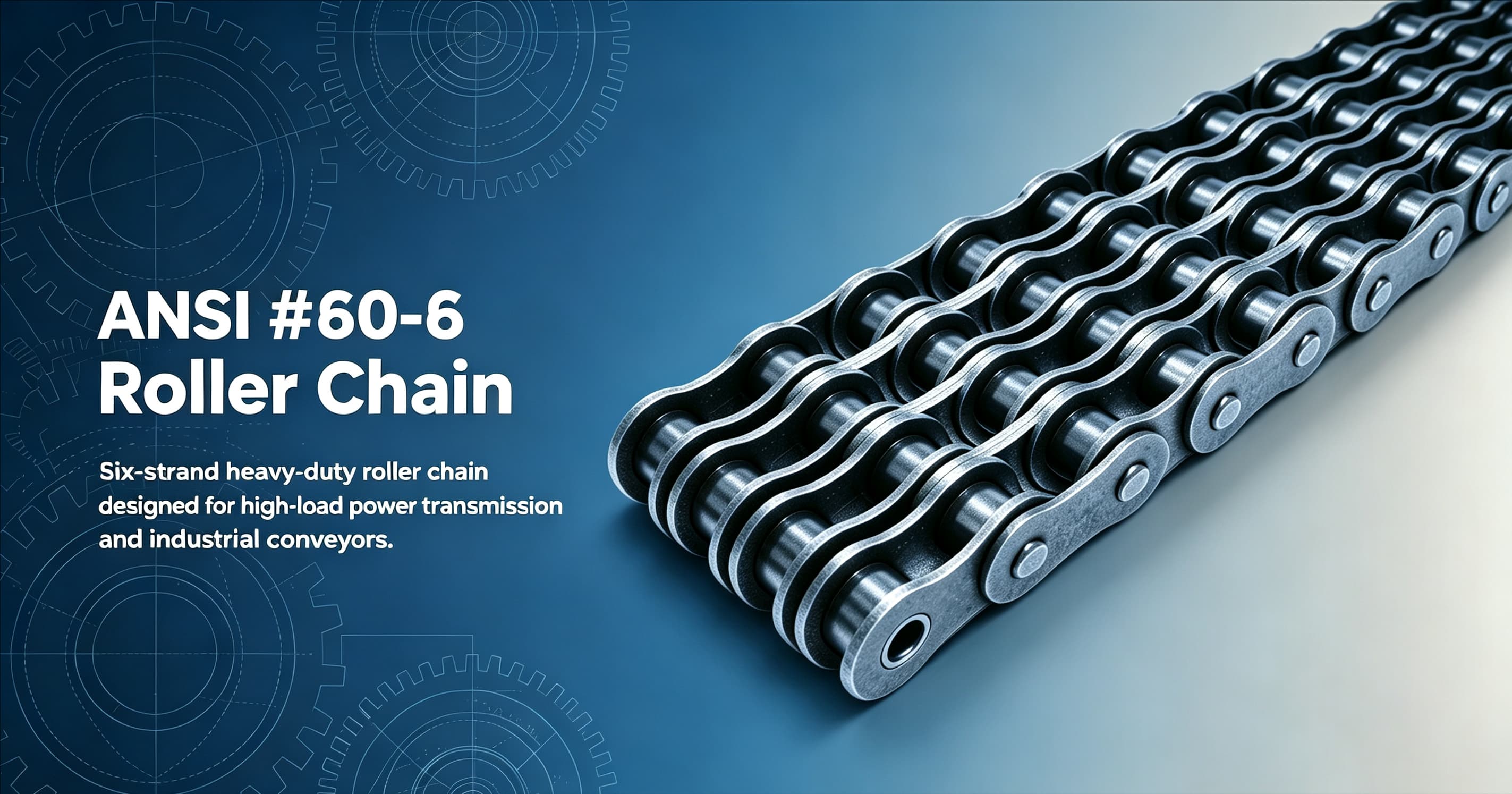

About #60-6 Multiple Roller Chain

ANSI #60-6 roller chain is a six-strand roller chain meeting ANSI standard. It is made of high-quality alloy steel. Pins, bushings and rollers are heat-treated to ensure good tensile strength and wear resistance. The 6-strand structure provides large load capacity and stable power transfer. With precise pitch control, it runs smoothly with low noise and vibration during long-time operation. It is widely applied in industrial conveyors, packaging machinery and general heavy-duty transmission equipment. We can supply customized attachments, surface treatment and cottered type to match various working requirements.

ANSI #60-6 Multiple Roller Chains  Dimension

Pitch (P): 19.05mm

Roller diameter (d1): 11.91mm

Width between inner plates (b1): 12.57mm

Pin diameter (d2): 5.94mm

Pin length (L): 139.8mm

Pin length (Lc): 141.8mm

Inner plate depth (h2): 18mm

Plate thickness (T): 2.42mm

Transverse pitch (Pt）: 22.78mm
