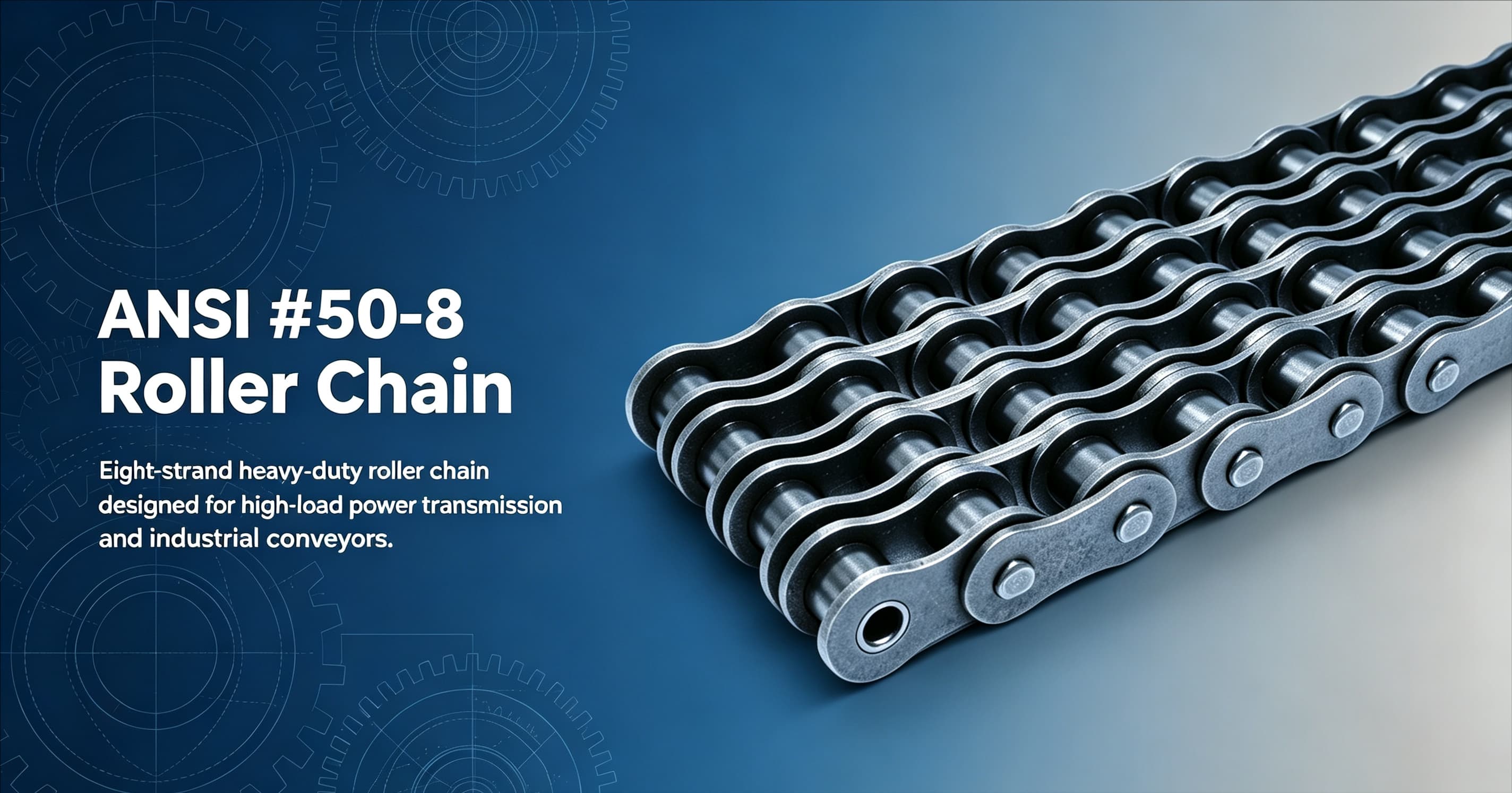

About #50-8 Multiple Roller Chain

ANSI #50-8 roller chain complies with ANSI standard. It is an 8-strand multi-row roller chain made of premium carbon and alloy steel. All key parts like pins, bushings and rollers undergo professional heat treatment to achieve great tensile strength, wear resistance and anti-fatigue property.

Precision machining and tight assembly deliver stable power transmission with low friction and low noise. It handles medium loads steadily for long-time running. Common applications include conveyors, agricultural machinery, food processing and packaging equipment. We can provide customized attachments, surface treatments and cut-to-length chains. Every piece passes rigorous quality testing before shipment to ensure consistent and dependable performance.

ANSI #50-8 Multiple Roller Chains  Dimension

Pitch (P): 15.875mm

Roller diameter (d1): 10.16mm

Width between inner plates (b1): 9.4mm

Pin diameter (d2): 5.08mm

Pin length (L): 147.5mm

Pin length (Lc): 149mm

Inner plate depth (h2): 15.09mm

Plate thickness (T): 2.03mm

Transverse pitch (Pt）: 18.11mm
