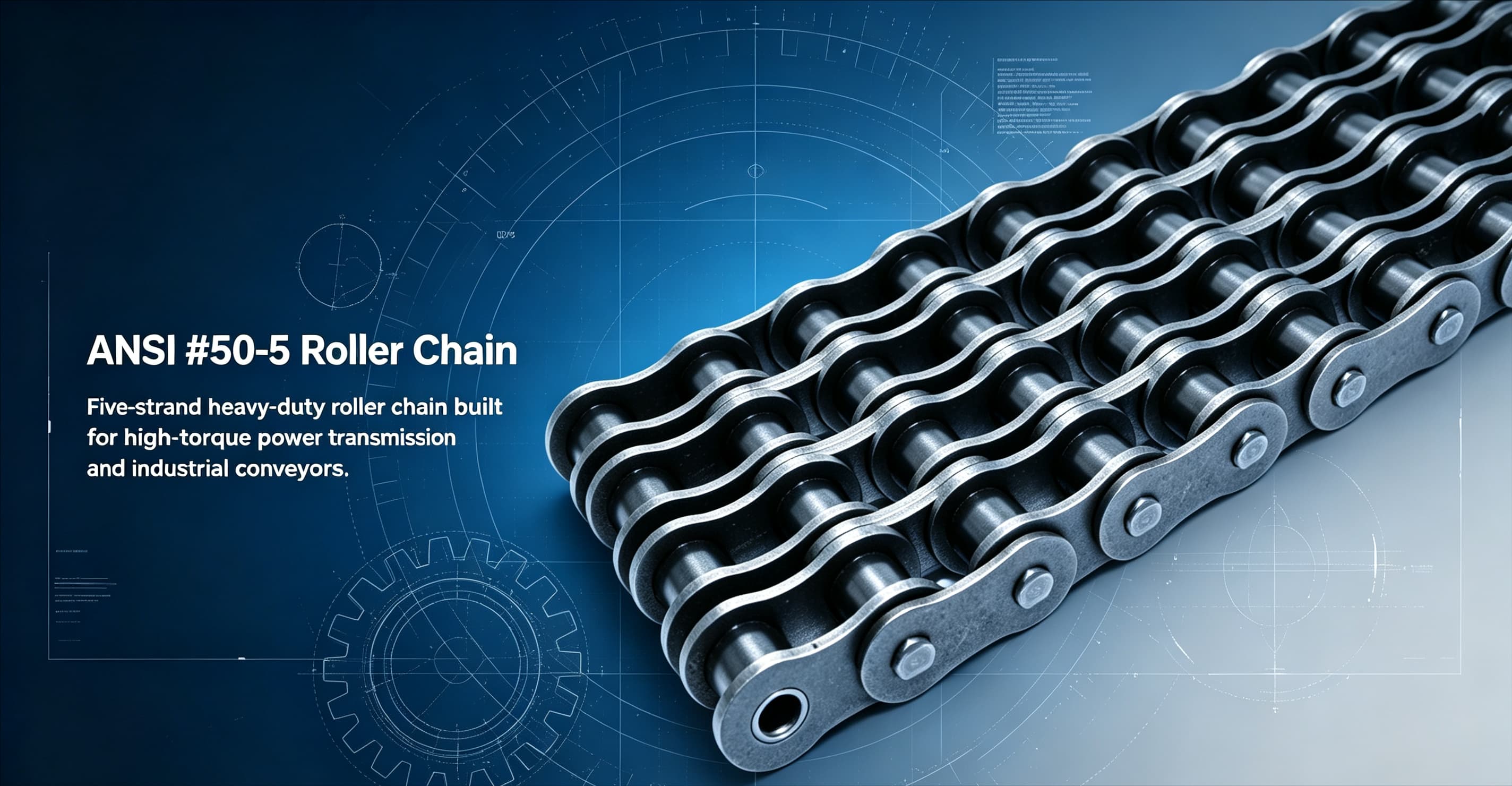

About #50-5 Multiple Roller Chain

ANSI #50-5 roller chain is a five-strand roller chain manufactured to ANSI standard. Made of high-quality alloy steel, it features precise machining, strong tensile strength and excellent wear resistance. The five-strand design delivers high power transmission capacity, stable operation under heavy loads. Widely used in industrial machinery, conveyor systems and heavy-duty transmission equipment. Custom options including surface treatment and special attachments are available upon request.

ANSI #50-5 Multiple Roller Chains  Dimension

Pitch (P): 15.875mm

Roller diameter (d1): 10.16mm

Width between inner plates (b1): 9.4mm

Pin diameter (d2): 5.08mm

Pin length (L): 93.2mm

Pin length (Lc): 94.7mm

Inner plate depth (h2): 15.09mm

Plate thickness (T): 2.03mm

Transverse pitch (Pt）: 18.11mm
