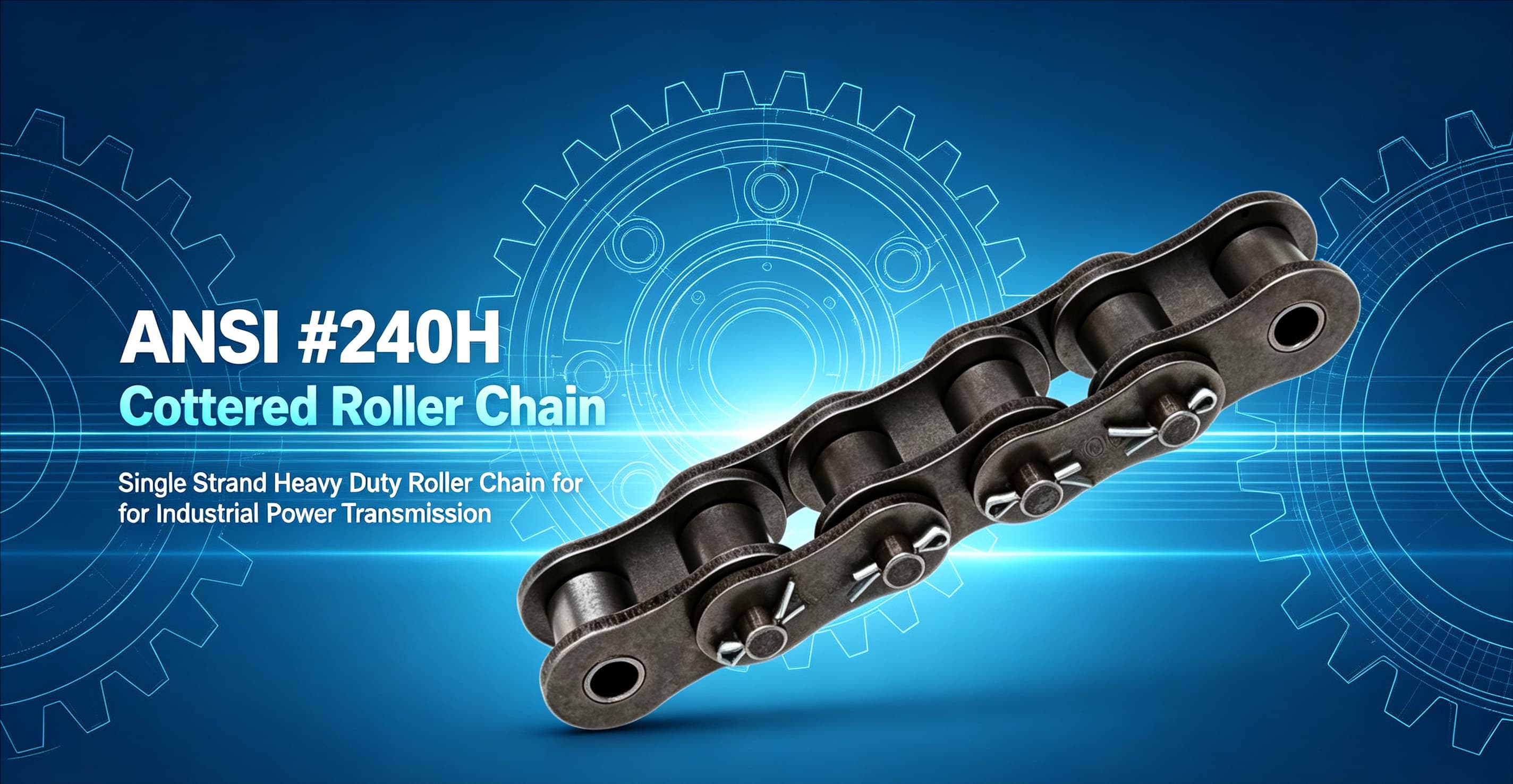

About #240H Cottered Roller Chain
ANSI #240H cottered roller chain complies with ANSI B29.1 standard. It is a heavy-duty type with thicker link plates than standard #240 chain for superior tensile strength and shock resistance. Cotter pin design enables easy on-site assembly and disassembly. Pitch: 3" (76.2mm). Heat-treated alloy steel, solid rollers and shot-peened plates deliver excellent wear and fatigue performance. Suitable for heavy power transmission in mining, earthmoving and large industrial equipment.
ANSI #240H Roller Chains Dimension
Pitch (P): 76.2mmRoller diameter (d1): 47.63mmWidth between inner plates (b1): 47.35mmPin diameter (d2): 23.81mmPin length (Lc): 115.9mmInner plate depth (h2): 72.3mmPlate thickness (T) : 12.7mm
