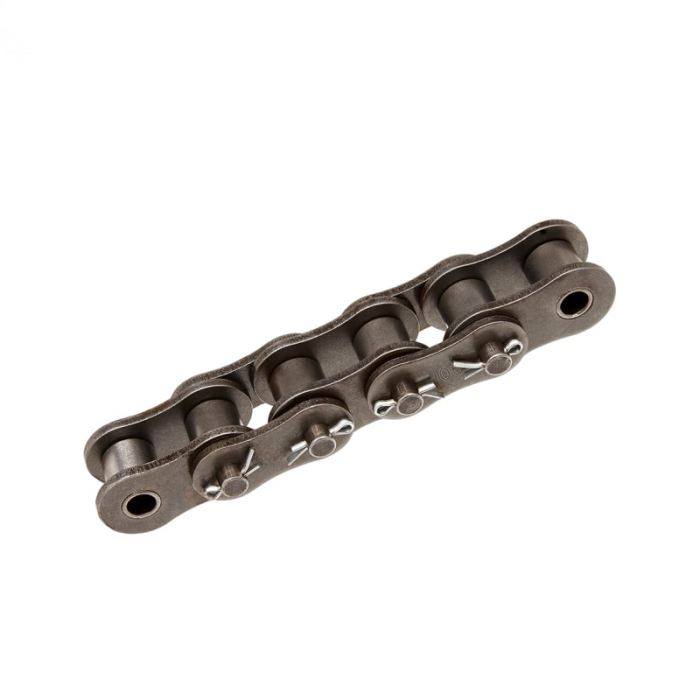

About #100H Cottered Roller Chain
#100H cottered roller chain follows ANSI B29.1 standard. It belongs to heavy-duty series with thicker side plates for higher load capacity. Adopting cotter pin construction instead of rivets, it allows convenient assembly, disassembly and on-site maintenance.
Made of heat-treated carbon steel, this chain features high tensile strength and outstanding wear resistance. Widely used in heavy conveyors, agricultural machinery and mining transmission systems. Custom lengths and surface treatments are available to meet your industrial requirements.

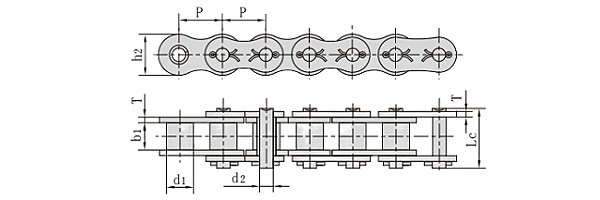

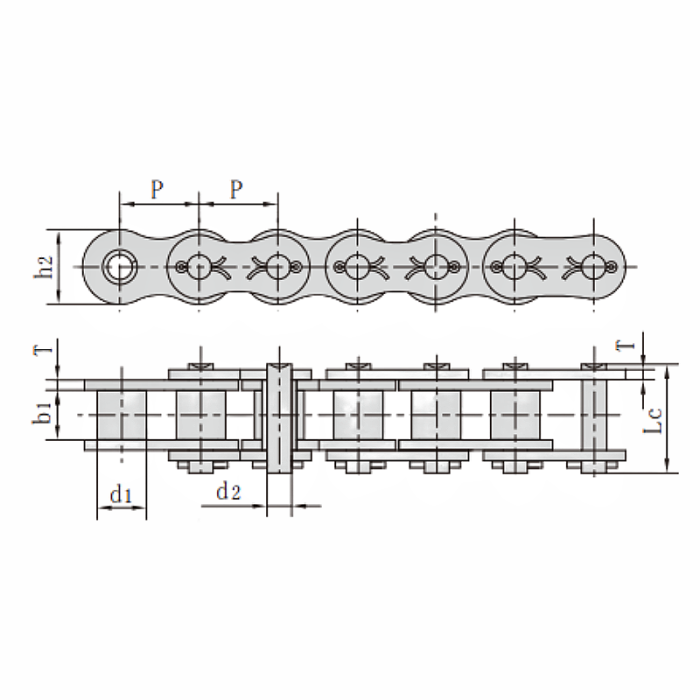

ANSI #100H Roller Chains Dimension
Pitch (P): 31.75mmRoller diameter (d1): 19.05mmWidth between inner plates (b1): 18.9mmPin diameter (d2): 9.53mmPin length (Lc): 46.9mmInner plate depth (h2): 30mmPlate thickness (T) : 4.8mm
